Deluxe Flush 14" Angled Back 12V Freshwater Electric Marine Toilet with Solenoid Valve & Soft Close LidYou can experience all the comforts of home at sea with Jabsco Deluxe Flush electric marine toilet. Designed for the discerning owner looking for luxury and comfort, the Deluxe Flush portfolio features a space-saving, stylish design with minimal water usage and virtually silent operation.Features: 14" Angled back Space-saving stylish design Household size soft closing seat Virtually silent operation Fresh water rinse model Powerful non-clogging large bore flush pump macerates waste Specifications: Bowl Size: Domestic Lid: Soft close Rinse Type: Freshwater Rinse Pump/Solenoid Valve: Solenoid valve Voltage DC: 12V DC Recommended fuse Size (AMP): 25 Flush control Switch: 4-Button Touch Panel Height: (inch) 14.4” / (mm) 366 Width: (inch) 14.8” / (mm) 375 Depth: (inch) 17.7" / (mm) 450 Weight: (LBS) 59.5" / (kg) 27 One-Touch Control Pad:All Deluxe Flush marine toilets come complete with a multi-function, one-touch control pad. The control pad is supplied with a standard surface mount unit with a clean white bezel. The control pad offers four options: fill, quick flush, flush, or empty. In addition, the owner can set the control at any time so that the bowl is always left either dry or wet after flushing. The recommended dry setting minimizes total water usage. If water usage is not a concern, the wet location automatically fills the bowl after flushing, ready for the next user. Simultaneously holding down both the quick flush and flush buttons for 5 seconds switches between bowl always left dry and bowled always left wet modes.Control Pad Options: Fill may be touched when the bowl is dry add 1 quart (1 liter) of water before use, if necessary Quick Flush first rinses and then empties the bowl after light use. On the dry setting, this uses less than 1 quart (1 liter) of water Flush rinses and empties the bowl twice after heavy use. If the bowl is dry, touching the fill before use is recommended. This uses just 2.5 quarts (2.5 liters) of water Empty does exactly what it says without adding any water, whenever desired. Even when the bowl appears to be dry, there is an anti-odor water lock in the pump housing Rinse Options: Supplied with a solenoid valve assembly for connection to any existing pressurized water system capable of delivering 2.9 GPM (11 LPM) or more The solenoid valve features dual non-return valves to protect the freshwater system from possible black flow from the toilet into the water system Specifications: Color: White Gallons Per Minute: 2.9 Operation Method: Electric Rinse Water: Fresh Volts: 12 Box Dimensions: 23"H x 23"W x 25"L WT: 24 lbs UPC: 671880640008 Owner's Manual (pdf)

Read more less

In-Line Non-return ValveNon-return valves help priming and prevent backflow of water into the bilge. WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Inlet Size: 3/4" Outlet Size: 3/4" Type: Misc Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs UPC: 671880551397 Quick Guide (pdf)

Read more less

Grey Waste Tanks with Intelligent ControlRobust compact tanks with multi-port options to suit your installation.Whale’s Largest Range of Multi-Port Grey Waste Tanks Ever!Simple system - Allows you to manage all grey waste on board through one thru-hull fitting.Resilient polyethylene one-piece moulded tanks designed to handle grey waste on board - ideal for use with Gulper Grey Waste pumps for unbeaten debris handling.8 liter capacity grey waste tanks - compact design allows you to mount a Gulper pump directly to the side to save space and simplify pipe runs.16 liter capacity grey waste tanks - higher capacity design allows you to mount a Gulper pump directly to the side to save space and simplify pipe runs.20 liter capacity grey waste tanks - outlet ports and sensor locations minimize air pumping noise.Grey waste tank lid with fully integrated sensor: Intelligent Control - sensor activates pump automatically to empty grey waste tank only when required Robust - enclosed housing with dual seal ensures the best component protection in the harsh grey waste environment Reliable - designed to reduce dirt and debris build-up Compatible - lid design allows retrofitting to existing Whale grey waste tank systems Simple installation - two wires can connect to any 12 or 24V pump system, up to 20A, with no requirement for a relay WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Holding Tanks Box Dimensions: 10"H x 11"W x 20"L WT: 9 lbs UPC: 766478955852

Read more less

2-Way Waste Manifold 6' Cable 3/4" PortsThe 2-way manifold with Whale Intelligent Control built-in. The IC manifold can be used with a Whale Gulper pump to create a grey water disposal system. The manifold accepts two waste inputs and senses water through the wall. This relays information to the Gulper IC pump to turn on and pump the wastewater.

Read more less

115V AC MaceratorThe Jabsco AC macerator pump unit is the ideal answer to waste handling problems for marine, recreational vehicle and domestic uses. The macerator section grinds waste down to a particle size of 1/8" maximum so it can be pumped easily through a 1" hose discharge line. The pump is self-priming, permitting the unit to be mounted above or below the tank in a convenient location. For optimal efficiency, locate pump as close to the waste source as practical. Empties a 30 gallon holding tank in only 3 minutes. The waste pump will macerate and pump all waste and tissue normally found in marine waste systems. IT WILL NOT HANDLE HARD SOLID OBJECTS, SANITARY NAPKINS OR RAGS.SpecificationsImpeller NitrileMacerator Cast Bronze Cutter Plate reducesparticle size to 1/8" maximumSeal Lip TypePort Type Inlet - 1-1/2" External Pipe ThreadOutlet - 1" ID Hose BarbMotor 115 Vac, AC Induction TypeSingle Phase, 60 HzThermal Overload ProtectionWeight 7.7 (kg) 17 (lb)WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Gallons Per Minute: 10 GPM Outlet Size: 1" Volts: 115v Type: Waste Pumps Box Dimensions: 9"H x 10"W x 16"L WT: 19.45 lbs UPC: 671880015530 Owner's Manual (pdf)

Read more less

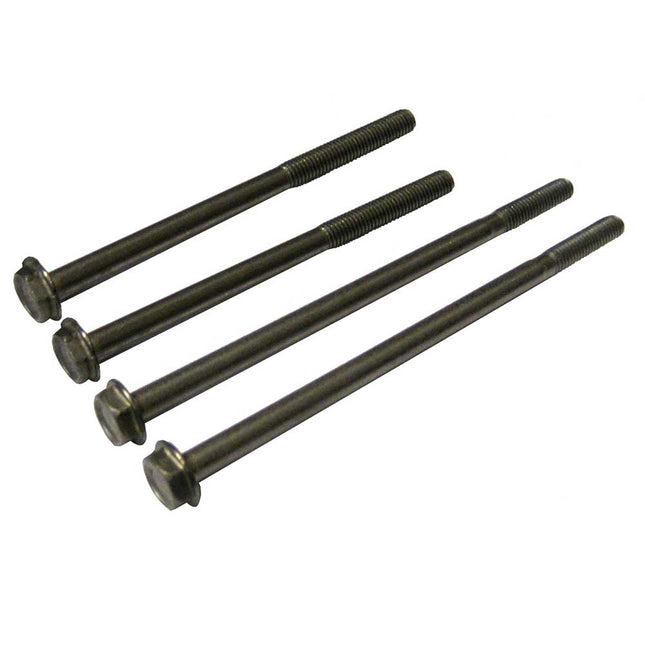

Stainless Steel Bolt Kit for Older 18590 Series Macerator PumpsReplaces bronze studs and acorn nutsWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Type: Misc Box Dimensions: 1"H x 1"W x 4"L WT: 0.1 lbs UPC: 671880624688

Read more less

Conversion KitConvert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks. Also converts most toilets with 4 bolt screw pattern on a 3-3/4" diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand Push button flushing for ease and simplicity of operation Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening Flushing pump self-priming up to 4ft vertical lift May be installed 3ft below the waterline For installations fitted with vented loops use a solenoid valve on inlet hose Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection) Fitting:Connections for 5/8" - 3/4" ID inlet hose, 1" - 1-1/2" ID outlet HoseSize: 13-1/4" long x 8-1/4" wide x 3-1/4" highWARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Inlet Size: 5/8" or 3/4" Outlet Size: 1" or 1-1/2" Suction Lift (ft.): 4' Volts: 12v Type: Misc Box Dimensions: 4"H x 9"W x 15"L WT: 8 lbs UPC: 671880032414 Owner's Manual (pdf)

Read more less
