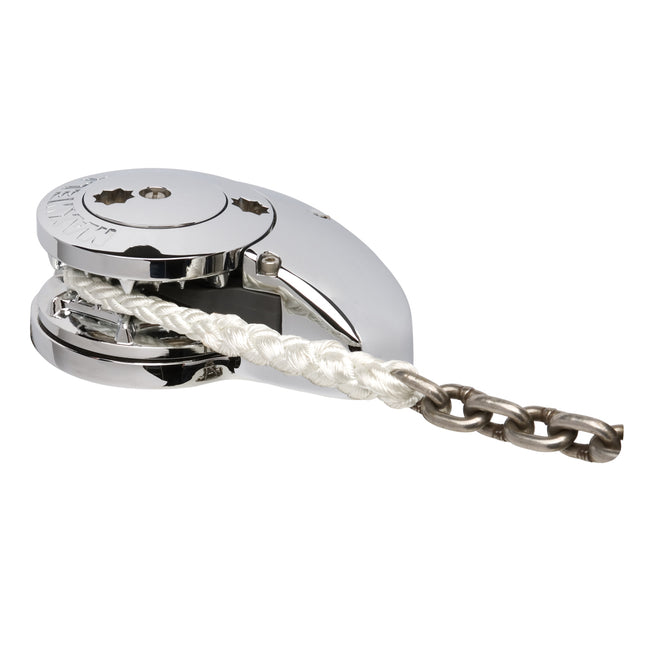

RC12/10 12V WindlassThe RC12 fully automatic windlass series is designed to effortlessly retrieve and deploy 10mm (3/8") short link chain and 16mm (5/8") to 20mm (3/4") three strand or 8-Plait rope (RC12-10) and 12mm/13mm (1/2") short link chain and 20mm (3/4") three strand or 8-Plait rope (RC12-12).With a maximum pull of 1590 kg (3500 lb), and an anchor retrieval rate of 15m/min (50ft/min), the RC12-12 is one of the fastest and gruntiest windlasses in its class.A sleek, Low Profile version and a fluted stainless steel capstan drum version, are available.The RC12 is packed with innovative features combined with Maxwell's traditionally classic aesthetics, but reflecting the modern form follows function of the highly successful RC6, RC8 and RC10 series windlasses.The elegantly designed deckplate and chainpipe cover are manufactured in polished marine-grade 316 stainless steel, as are the heavy duty pressure arm, stripper, chainwheel and fluted capstan drum.The huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker.Double cone-type brake/clutch mechanism permits Free Fall anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement, ensuring safe and precise operator control.The RC12 features Maxwell's revolutionary and Wave Design™ chainwheel. Emergency manual retrieval is made simple and easy with Maxwell's unique Active Latch Ratchet System operation that prevents backwind of the windlass during manual hauling of the anchor.The Maxwell-designed and innovative black, hard anodized gearbox provides numerous advantages: - Fast and easy windlass installation - More corrosion resistant - Easy to maintain and service - Takes up less room in the anchor locker - 75:1 Ratio (RC12-10) or 100:1 Ratio (RC12-12), single stage design with less moving parts, for smoother and quieter operation - Allows for multi-positioning of the gearbox/motor.Every Maxwell automatic rope/chain windlass comes complete with all the necessary components for fully automatic dual direction control in a competitively priced package.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 3/8" Freefall: Yes Rope Diameter (Inches): 3/4" Vertical/Horizontal: Vertical Box Dimensions: 14"H x 18"W x 25"L WT: 80 lbs UPC: 1000000004397 Brochure (pdf)

Read more less

Up/Down Footswitch - Compact, WhitePart #: P104809Maxwell's compact up and down foot switches are available in black and white versions. Operates via solenoids thus allowing smaller diameter wiring. Quick Guide (pdf)Brochure (pdf)

Read more less

MAXWELL AA710WIRELESS, HAND HELD REMOTE WINDLASS CONTROLLER AND RODE COUNTERAll the features of the AA560 plus options to control a bow thruster or deck lights and anchor wash. High level wireless transmission security - 2.4GHz ISM band Hand held controller displays rode count plus signal strength and battery level Console requires two AA batteries Ergonomic shape with wrist strap connector Water resistant to IP65 Rubber moulding for grip and non slip protection Console holder and protective cover Shockproof IEEE 802.15.4 compliant Kit includes 1 hand held remote control and 1 base station, 1 sensor and 1 magnet.Note: Two base stations can be combined and controlled by one remote to allow control of two windlasses. Plus, Plug and Play connectors, T-junctions and Gender Adaptors are also available. Contact your Maxwell Dealer. Quick Guide (pdf)Brochure (pdf)

Read more less

ANCHOR SWIVEL SHACKLESThe use of a swivel and joining shackles to join your anchor and rode will greatly improve anchor retrieval and help ensure that the rode lays neatly into your anchor locker. Thus, they are highly recommended for use with Maxwell's automatic rope/chain series windlasses. Two sizes (6mm - 8mm/1/4" - 5/16" and 10mm - 12mm/3/8" - 7/16") are available to suit vessels up to 20 metres (65'). These robust single swivel anchor connectors, with captured pins, will not loosen under load and pull smoothly and easily over bow rollers. Quick Guide (pdf)Brochure (pdf)

Read more less

ANCHOR SWIVEL SHACKLESThe use of a swivel and joining shackles to join your anchor and rode will greatly improve anchor retrieval and help ensure that the rode lays neatly into your anchor locker. Thus, they are highly recommended for use with Maxwell's automatic rope/chain series windlasses. Two sizes (6mm - 8mm/1/4" - 5/16" and 10mm - 12mm/3/8" - 7/16") are available to suit vessels up to 20 metres (65'). These robust single swivel anchor connectors, with captured pins, will not loosen under load and pull smoothly and easily over bow rollers. Quick Guide (pdf)Brochure (pdf)

Read more less

HRC10 Horizontal Rope Chain Windlass - 12V Capstan 3/8" Chain, 5/8" RopeMaxwell's HRC10 represents yet another breakthrough in performance and anchor handling excellence. The horizontal, fully automatic rope/chain windlasses has been designed to meet the demands for use on larger vessels up to 16 meters (52'), which require a completely above deck installation system. The HRC10 handles 5/8" rope and 3/8" chain, including the thick rope to chain splice. The modern appearance of the HRC10 retains the classic good looks of previous Maxwell horizontal windlasses, while incorporating design features years ahead of its competitors.The HRC10 windlass is fitted with Maxwell's unique Wave Design™ chainwheel. The rope/chain wheel incorporates two unique design concepts that greatly improve the handling and control of the rope/chain spliced rode. The outer ribs of the chainwheel are angled slightly forward ensuring that the rope and the chain are smoothly guided in the wheel during anchor retrieval.As the rope pulls into the wheel, the opposite facing inner ribs grip the rope in an undulating manner, securing the rope more firmly in a 'wave pattern' action that is far superior to the traditional 'jam cleat' manner of holding the rope. Not only does this Wave Design™ hold the rope more securely, it is also kinder on the rope resulting in increased longevity of your anchor rode.Features: Aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck 2-part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section 2-piece watertight case allows for quick and easy, on-deck, routine maintenance Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain) Wave Design™ chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Unique Maxwell "wrap around"™ horizontal chainwheel ensures that more than 90° of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs Works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker Cone type clutch/brake mechanism permits manual, "free fall"™ anchoring and emergency crank recovery of the rode and anchor if required The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 3/8" Freefall: Yes Rope Diameter (Inches): 5/8" Vertical/Horizontal: Horizontal Box Dimensions: 11"H x 17"W x 20"L WT: 55 lbs UPC: 1000000002638 Brochure (pdf)

Read more less

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.HRC8 Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation High efficiency spur gearbox incorporating a robust non-backwind mechanism High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch Emergency "free fall" function in the event of onboard power failure Revolutionary new chainwheel - see over Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection Kits include:windlass, on/off breaker panel, reversing soleniod, up/down panel switch, a clutch release handle Specifications: Model: HRC8 Maximum Pull: 900lbs Chain Short Link: 5/16" Rope Size (Nylon): 9/16" Line Speed(Anchor Retrieval): 108'/min Power Supply(DC): 12V Motor Power: 600W Net Weight: 25lbs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 5/16" Freefall: Yes Rope Diameter (Inches): 9/16" Vertical/Horizontal: Horizontal Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs UPC: 9414761104029 Brochure (pdf)

Read more less

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.HRC6 Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation High efficiency spur gearbox incorporating a robust non-backwind mechanism High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch Emergency "free fall" function in the event of onboard power failure Revolutionary new chainwheel - see over Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection Specifications: Model: HRC6 Maximum Pull: 900lbs Chain Short Link: 1/4" Rope Size (Nylon): 1/2" Line Speed(Anchor Retrieval): 108'/min Power Supply(DC): 12V or 24V Motor Power: 600W Net Weight: 25lbs This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 1/4" Freefall: Yes Rope Diameter (Inches): 1/2" Vertical/Horizontal: Horizontal Box Dimensions: 10"H x 14"W x 15"L WT: 29 lbs UPC: 1000000002744 Brochure (pdf)

Read more less

The RC6 utilizes 6mm/7mm (1/4") chain spliced to 12mm (1/2") three strand or 8-plait rope. Maximum Pull: 660lbs. Providing most of the features of the larger RC8, the RC6 has been designed with the smaller, trailer boat market in mind. The in-line, vertical gearbox and motor means quick and easy installation by either the boat yard or the DIY aftermarket customer. An inexpensive, high performance and great looking windlass: the RC6 is built for durability and years of trouble free use. The RC6 is available only as a low profile unit (no optional capstan drum).Kits include:windlass , an on/off breaker panel, a reversing soleniod, an up/down panel switch and a handle.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 1/4" Rope Diameter (Inches): 1/2" Vertical/Horizontal: Vertical Box Dimensions: 10"H x 15"W x 15"L WT: 25 lbs UPC: 1000000004816 Brochure (pdf)

Read more less

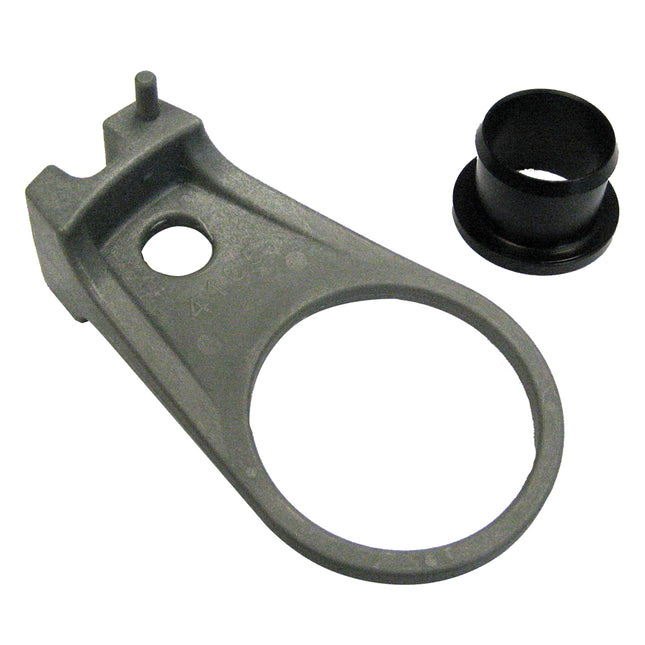

Stripper Arm Kit For Freedom 800Trouble free transition from rope to chain by means of an innovative pressure arm system within a safer enclosed design.

Read more less

RC10 Automatic Rope/Chain Windlass Designed for 3/8" chain and 5/8" rope combination Maximum Pull: 1870lbs. Metric chain size: 10mm Motor Wattage: 1200W Innovative heavy duty stainless steel pressure arm, coupled with a unique rope/chain gypsy, giving an unparalleled level of performance. Simple two piece installation, saving time and money and allowing easy retrofitting without disassembly of the windlass. Manufactured from marine grade chromed bronze for long term durability The topworks can be fully disassembled utilizing the handle provided, a screw driver and common allen key, making regular service and maintenance a breeze. No special tools required! A huge, through deck, hawse pipe throat ensures easy entry of the rope/chain rode into and out of the anchor locker Not only does the RC10 effortlessly handle combination rope/chain rodes, it works just as well with all chain rodes for those who may want the extra security of an all chain systems combined with an elegantly styled, low profile windlass on their foredeck. Exclusive Maxwell 3 Year Limited Warranty ensuring your confidence that you are getting the best product on the market. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Chain - Diameter (Inches): 3/8" Freefall: Yes Rope Diameter (Inches): 5/8" Vertical/Horizontal: Vertical Box Dimensions: 12"H x 17"W x 20"L WT: 47 lbs UPC: 1000000004151 Quick Guide (pdf)Brochure (pdf)

Read more less

Maxwell AA560Panel Mount Windlass Controller and Rode Counter Preset stopping point on retrieval One-touch function to deploy and retrieve a preset length of rode Adjustable back lit display in feet, metres or fathoms Graphic LCD screen featuring intuitive user interface for simple operation Displays windlass speed and direction, plus battery voltage Safety lock to help protect against accidental windlass deployment Logs windlass operation hours to help ensure regular windlass maintenance This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

Pressure Arm Upgrade KitMade specifically for Maxwell's Freedom Series of Windlasses.

Read more less

ANCHORMAX™ WindlassFeatures: Has an extremely high power to weight ratio ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft) Fitting to the boat is simplicity itself as no dismantling of the winch is required Gear housings are marine-grade alloy and the drum is stainless steel Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions Not recommended for use to haul halyards Not recommended for use to haul chain Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings. STANDARD EQUIPMENTFootswitch SPECIFICATIONS Maximum Line Pull 386kg (850lb) Speed @ nominal working load 24m/min (76ft per min) (80 amps with 100kg/220lb load) Voltage 12v Power 600w Weight 8kg(17.6lb) Maximum Boat Load 10m (33ft) Max. Boat Weight 4 Tons This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Brochure (pdf)

Read more less

REMOTE UP/DOWN CONTROLEasy to use panel-mounted Up/Down switch for remote windlass operation from the helm, flying bridge or cockpit. Available for use with dual-directional solenoids. Manufactured from marine-grade materials. Splash proof. Suitable for use with DC 12V or 24V dual-directional solenoids. Quick Guide (pdf)Brochure (pdf)

Read more less

FOOTSWITCHMaxwell heavy-duty, weather resistant units have a UV stabilized water proof diaphragm and are supplied complete with mounting instructions and screws. Rated at 200 amps and suitable for 12V or 24V applications. Nickel-plated copper contacts ensure corrosion-free reliable operation One foot switch supplied standard with each winch (except Freedom, Liberty and hydraulic units). UV stabilized plastic Quick Guide (pdf)Brochure (pdf)

Read more less

FOOTSWITCHESMaxwell heavy-duty, weather resistant units have a UV stabilized waterproof diaphragm and are supplied complete with mounting instructions and screws. Rated at 200 amps and suitable for 12V or 24V applications. Nickel-plated copper contacts ensure corrosion-free reliable operation Quick Guide (pdf)Brochure (pdf)

Read more less

FOOTSWITCHMaxwell heavy-duty, weather resistant units have a UV stabilized water proof diaphragm and are supplied complete with mounting instructions and screws. Rated at 200 amps and suitable for 12V or 24V applications. Nickel-plated copper contacts ensure corrosion-free reliable operation UV stabilized plastic Quick Guide (pdf)Brochure (pdf)
