xSonic P319 Plastic Low Profile TH 50/200 9-Pin 600W Connector - 10M CableThe P319 is a compact, plastic, thru-hull, dual-frequency (50/200 kHz) sensor that offers depth and temperature data. Ideal for planing hull powerboats and sailboats.Depth/TemperatureRequires just one hole in the hull to receive data for both depth and temperatureDual FrequencyWorks at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep waterHighly AccurateProvides extremely accurate dataLow ProfileJust 5mm extends outside of the hullSpecifications: Frequency: 50/200 kHz Power Rating: 600W Speed Sensor: No Temperature Sensor: No Mounting Style: Plastic Thru-Hull Elements: 1 Beamwidth @ -3dB: 45 (50 kHz) 12 (200 kHz) Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Cable Length (Feet): 33' Temperature: Yes Box Dimensions: 4"H x 8"W x 10"L WT: 2.8 lbs UPC: 9420024162705

Read more less

xSonic SS60 Stainless Steel 20° Tilt Thru-Hull Depth/Temp Transducer - 9-Pin - 10M CableThe SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.Features: Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings Easy To Install Dual Frequency - Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water Highly Accurate - Provides extremely accurate data 20° Tilt - The 20° tilt is ideal for boats with a 16° to 24° hull deadrise Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull Plug & Play Connection - Easily connect to NSSevo3, Lowrance HDS G3 Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: No Temperature: Yes Cable Length (Feet): 33' Box Dimensions: 4"H x 8"W x 10"L WT: 5 lbs UPC: 9420024161975

Read more less

SS175H-W/0 Stainless Steel Thru-Hull Transducer - 0° - 9-PinThe SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths. Features: 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets  Up to 310M (1000') range with High CHIRP 1 internal broadband ceramic Thru-hull with stainless steel housing Suitable for fiberglass and wood hulls Ideal for sportfishing and commercial vessels up to 8M (25') Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays Specifications: Temperature: Yes Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: High Wide Cable Length (Feet): 33' Speed Included: No Box Dimensions: 8"H x 10"W x 11"L WT: 10.7 lbs UPC: 9420024161913

Read more less

xSonic SS175H-W/12 Stainless Steel Thru-Hull Transducer - 12° - 9-PinThe SS175H-W is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8M (25') in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths. Features: 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets  Up to 310M (1000') range with High CHIRP 1 internal broadband ceramic Thru-hull with stainless steel housing Suitable for fiberglass and wood hulls Ideal for sportfishing and commercial vessels up to 8M (25') Recommended for use with Simrad NSSevo3 Lowrance HDS Gen3 multifunction displays Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: High Wide Cable Length (Feet): 33' Temperature: Yes Box Dimensions: 8"H x 10"W x 12"L WT: 10 lbs UPC: 9420024161920

Read more less

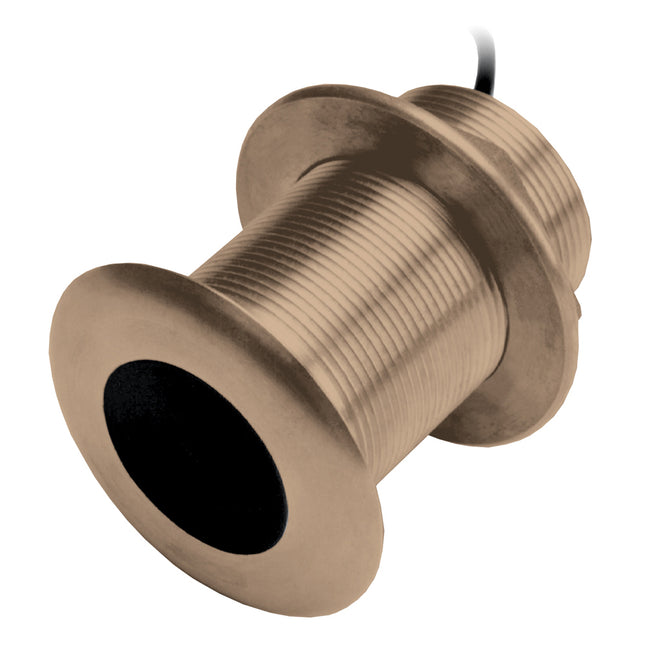

xSonic B150M Thru-Hull Transducer - 9-Pin 10M Cable - 0°As CHIRP continues to redefine recreational fishing, AIRMAR has expanded the lineup of broadband transducers to satisfy the growing demand for this game changing technology. The B150M economical CHIRP transducers designed for offshore fishing and freshwater anglers. Operating at a frequency range of 95-155 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 2,500 feet*) along with ultra-clear target resolution. *Depths vary depending on target strength and sea conditions A tilted element model in the CHIRP Thru-Hull product line, the B150M CHIRPS across the following bandwidth: M Model - Medium Frequency 95-155 kHz   Features: Depth and water temperature sensor 300W Bronze Thru Hull 0° tilt Ideal for inshore or coastal fishing in shallow to medium depths Freshwater anglers will see fish holding close to structures and suspended fish  Track bottom at higher boat speeds More coverage under your boat delivers wider archesand 26° to 17° beamwidths  Cover the medium frequency range-CHIRPs from 95-155kHz to provide 60 kHz of total bandwidth from one transducer Hull Type: Fiberglass, wood 1 internal ceramic Specifications: Temperature: Yes Speed Included: No Pins: 9 Imaging: Standard Chirp: Medium Cable Length (Feet): 33' Mounting Style: Thru-Hull Box Dimensions: 4"H x 8"W x 10"L WT: 4 lbs UPC: 9420024162750

Read more less

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-PinFeatures: Black 9-Pin Connector Cable Length - 10M (33.0') SS175M - 1-Internal Broadband Ceramic Assembly Depth & fast-response water-temperature sensor Stainless Steel transducer housing Hull Type: Steel or aluminum Boat Size: Up to 11M (36’) Useable shaft length 71mm (2.80”) Medium-Frequency (M) Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth 50 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency Specifications: Temperature: Yes Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Chirp: Medium Cable Length (Feet): 33' Speed Included: No Box Dimensions: 8"H x 10"W x 12"L WT: 10.8 lbs UPC: 9420024161890 Brochure (pdf)

Read more less

xSonic B150M 20° TH 9-Pin Connector with 10M CableAs CHIRP continues to redefine recreational fishing, AIRMAR has expanded thelineup of broadband transducers to satisfy the growing demand for this gamechanging technology. The B150M economical CHIRP transducers designed foroffshore fishing and freshwater anglers. Operating at a frequency range of95-155 kHz, these transducers reveal fish in shallow, murky waters at mediumdepths (up to 2,500 feet*) along with ultra-clear target resolution.*Depths vary depending on target strength and sea conditionsA tilted element model in the CHIRP Thru-Hull product line, the B150M CHIRPSacross the following bandwidth: M Model - Medium Frequency 95-155 kHzFeatures: Depth and water temperature sensor 300W Bronze Thru Hull 20° tilt Ideal for inshore or coastal fishing in shallow to medium depths Freshwater anglers will see fish holding close to structures and suspended fish Track bottom at higher boat speeds More coverage under your boat delivers wider archesand 26° to 17° beamwidths Cover the medium frequency range-CHIRPS from 95-155kHz to provide 60kHz of total bandwidth from one transducer Hull Type: Fiberglass, wood 1 internal ceramic Specifications: Temperature: Yes Speed Included: No Pins: 9 Mounting Style: Thru-Hull Imaging: Standard Cable Length (Feet): 33' Chirp: Medium Box Dimensions: 4"H x 8"W x 10"L WT: 3.6 lbs UPC: 9420024162774

Read more less

xSonic SS75M 20° Tilted Element TH Transducer - 600W - Stainless SteelThe SS75M is a Stainless Steel, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.Medium Frequency: CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.The 20° tilt is ideal for boats with a 16° to 24° hull deadrise. Specifications: Temperature: Yes Speed Included: No Pins: 9 Chirp: Medium Mounting Style: Thru-Hull Cable Length (Feet): 33' Imaging: Standard Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs UPC: 9420024162651

Read more less

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin ConnectorSS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.*This Transducer is designed for smaller boats up to 36 feet (11 m).Features Frequencies: 130-210 kHz @ 25° constant beamwidth 16° - 25° Deadrise 300m+ Usable Depth 6m+ or large Boat size with Steel or Aluminum hulls Depth & Temperature CHIRP Technology High-Performance Stainless Steel Exclusive Transducer ID 9-Pin Connector, 10M Cable Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: High Wide Cable Length (Feet): 33' Pins: 9 Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs UPC: 9420024161937

Read more less
