Raymarine DST810 Gen2 Thru-Hull Depth/Speed/TemperatureModel: E70667 The DST810 Gen2 is a SmartTM Multisensor through-hull transducer that offers depth, speed, and temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and temperature data and communicates on a single NMEA200 data cable. The DST810 Gen2 also features an integrated vessel attitude sensor and Bluetooth technology that allows boaters a simple way to calibrate speed-through-water using Airmar's CAST mobile app. The Gen2 paddle wheel design delivers improved speed accuracy from 0.3 to 45 knots. The DST810 Gen2 features and SeaTalkng connector for networking with Raymarine instruments and multifunction displays.SpecificationsMaterial Plastic   Max Depth (Ft) 330 (100m) Frequency (KHz) 235 kHz Records Depth, Speed Temperature, Heel, Trim Hull Material Fibreglass / Aluminum Cable Length  2.5 Meters Deadrise Angles Up to 22 deg

Read more less

Compatible with the following instruments: ST70 (direct connect to ST70 backbone, no pod required) Compatible hull material: aluminum and fiberglass Hole diameter for installation: 2 in Operates at 235kHz so there is no interference with your 50/200 kHz fishfinder transducer. Airmar's SmartTM Sensors have embedded microelectronics, meaning the signal is processed from within the transducer itself, eliminating the need for an ST70 transducer pod. Depth and Temperature

Read more less

Raymarine TM1150M 1Kw Depth and Temperature Depth and TemperatureModel: A80806 Depth and fast-response water-temperature sensing 300 W of power with a maximum depth of 183 m (600 feet) Medium frequency: 95 to 155 kHz - 26 deg to 17 deg beamwidth put more energy on targets for great target separation 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing Plastic release bracket protects housing from frontal impact Recommended for outboard or inboard/outboard powered boats Recommended for planing hulls Also available as a thru-hull (B150M) mount Patented Xducer ID(R) technology Airmar's TM150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600 feet) with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish-ideal for freshwater, inshore, or coastal fishing in shallow to medium depths. The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25 feet).SpecificationsPower Rating300 W Transom Angle 3 deg to 20 deg Functions Depth, Temperature Max Vessel LOA Up to 8 m (26 feet) Common Use Leisure/Yachting, Fishing Housing Urethane Max Depth 183 m (600 feet) Medium Frequency 95-155 kHz Medium Frequency Beamwidth 26 deg-17 deg Mounting Style Transom Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element No Weight 0.45 kg (1.0 lb.)

Read more less

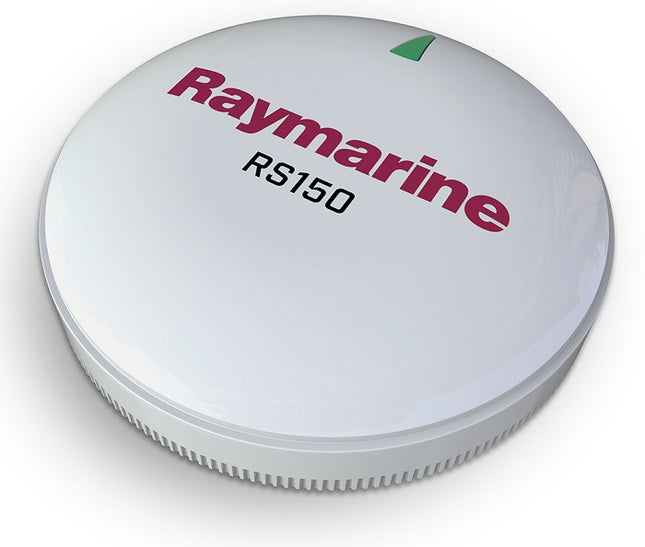

RayStar 150 GPS Sensor w/Pole MountRS150 GPS SensorThe RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.Features: 72-channel GPS receiver Fast 10Hz position updates Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support A GNSS receiver with GLONASS compatibility Low power consumption: 30mA (1 LEN) SeaTalkng and NMEA2000 compatible (using a device net adapter cable) Designed for low profile surface mounting or optional pole mounting Specifications: Nominal supply voltage: 12V D.C. Powered by N2K bus Operating voltage range: 8 - 32V DC Power consumption: 30 mA max (NMEA LEN = 1) Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC) Relative humidity: max 93% Waterproof: IPx6/7 Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor) Sensitivity: High sensitivity - acquisition down to -163dBm No. of channels: 72 Positioning System: GPS & GLONASS Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India) Differential acquisition: Automatic Position accuracy (95%): <15M Position accuracy with SDGPS (95%): <5M Speed accuracy (95%): <0.3kt Time to first fix from cold start: <2 minutes (< 45 seconds typical) Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start Geodetic Datum: WGS84 Pole Mount for RS150 GPS AntennaRaymarine's Pole Mount specifically for the RS150 GPS Antenna. The RS150 has 72 channels and offers faster 10Hz performance and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system. Specifications: Type: Antennas Box Dimensions: 8"H x 9"W x 12"L WT: 2.6 lbs UPC: 723193853726

Read more less

CPT-S Thru-Hull - High Chirp - Bronze - 20°Connects to the CP100 and/or MFD Series that ends in axx8 or esxx8. CPT-S transducers are strictly high chirp sonar transducers and do not include the downvision element.Also connects to Axiom Pro S series Units with optional adapter cable A80490Features: High Chirp Sonar Max Depth: 900' 20 Degree Deadrise MFD must have version 16 software or later Specifications: Speed Included: No Mounting Style: Thru-Hull Imaging: Standard Chirp: High Box Dimensions: 5"H x 7"W x 12"L WT: 4 lbs UPC: 723193813058

Read more less

Raymarine Mirco-TalkTM Wireless Gateway Model: E70361 Performance sailing with wireless wind enhancement on your Raymarine MFD; with accurate lay lines Use the power of your Raymarine MFD to inspire enhanced competitive sailing True wind achieved with sophisticated airflow and yaw algorithms Provides real-time data with robust and fast refresh rate Mast rotation position sensing, for wing sail boats Quick installation, light and wireless connection to wind vane Low power when used with Raymarine solar-powered wireless devices The innovative Micro-Talk Gateway can be mounted anywhere onboard and plugs into the boat's SeaTalkng network. It allows high speed transmission of data such as wind angle, wind speed, depth, boat speed, temperature, heading, GPS data, time, date and navigation information between Raymarine and Tacktick wireless instruments and traditional wired instruments, MFDs and autopilots. The Micro-Talk Gateway allows you the flexibility to mix-and-match any combination of wired or wireless Raymarine instruments, transducers, multifunction displays and autopilots. You'll appreciate the benefits of simple installation, seamless integration, with rugged reliability. Whether you are building a new system from scratch, or expanding an existing system, the Micro-Talk Gateway makes for a totally simple and superior integration between components. The Micro-Talk Gateway enables performance-minded sailors to take advantage of the enhanced accuracy and installation convenience offered by Raymarine's wireless, solar-powered wind transmitter options. Now it's possible to use these ultra-lightweight and highly accurate sensors with Raymarine i60, i70 and i70s Instrument systems. When used in conjunction with the optional Raymarine Wireless Mast Rotation Sensor, the system can also provide ultra-precise wind information onboard sailing craft with rotating masts including winged sailboats. Mast rotation angle is also transmitted to Raymarine LightHouse II (v17) Multifunction Displays. Hard-core racers can add an optional Raymarine Wireless Maxi display to the system and experience the benefits of automatic airflow correction. Raymarine's patented algorithms will automatically compensate wind speed and direction values to eliminate inaccuracy from sail updraft and mast heel angle. The Micro-TalkTM Wireless Performance Gateway comes with a SeaTalkng Spur cable, mounting hardware, gasket kit and quick installation guide. Optional pole, bulkhead and rail mounting kits are also available (sold separately.) SpecificationsNominal Voltage12 V dc (Supplied by SeaTalkng(R)) Voltage Range 9 V dc to 16 V dc (protected up to 32 V dc) Power Consumption 25 mA at nominal supply voltage Mounting method Surface mount Operating Temperature -20 oC to +55 oC (-4 oF to 131 oF) Storage Temperature -30 oC to +70 oC (-22 oF to 158 oF) Relative Humidity and Waterproofing max 93%. IPX6 IPX7 Supported connection protocols SeaTalkng(R) / NMEA 2000 (via DeviceNet adaptor) Micronet (wireless) What's in the Box: MicroTalk Gateway Mounting gasket 6m Seatalkng cable M4 x 40mm Threaded studs x 3 (used for surface mounting) Finger nuts x 3 (used for surface mounting) Documentation

Read more less

RS150 GPS SensorThe RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.Features: 72-channel GPS receiver Fast 10Hz position updates Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support A GNSS receiver with GLONASS compatibility Low power consumption: 30mA (1 LEN) SeaTalkng and NMEA2000 compatible (using a device net adapter cable) Designed for low profile surface mounting or optional pole mounting Specifications: Nominal supply voltage: 12V D.C. Powered by N2K bus Operating voltage range: 8 - 32V DC Power consumption: 30 mA max (NMEA LEN = 1) Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC) Relative humidity: max 93% Waterproof: IPx6/7 Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor) Sensitivity: High sensitivity - acquisition down to -163dBm No. of channels: 72 Positioning System: GPS & GLONASS Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India) Differential acquisition: Automatic Position accuracy (95%): <15M Position accuracy with SDGPS (95%): <5M Speed accuracy (95%): <0.3kt Time to first fix from cold start: <2 minutes (< 45 seconds typical) Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start Geodetic Datum: WGS84 Specifications: Type: Antennas Box Dimensions: 3"H x 6"W x 9"L WT: 1.8 lbs UPC: 723193796917

Read more less

iTC-5 Instrument Transducer ConverterThe iTC5 Instrument Transducer Converter enables the use of common analog transducer signals with new digital instrument displays like Raymarine's i70 and ST70 Plus. The ultra-compact iTC5 has connections to host the five most common analog transducers; depth, speed/temperature, wind, compass and rudder. The iTC5 instantly converts these 5 analog signals to digital SeaTalkng protocol.In addition to providing analog-to-digital conversion, the iTC5 provides all of the necessary power and communications connections to the transducers. This greatly simplifies the installation of new systems, and also provides a simple and cost-effective means for owners of older analog instrument displays to upgrade to the latest digital display technology. The iTC5 eliminates the need for expensive "smart" transducers or individual instrument pods. Complete control for calibration and alarms is performed through the i70 or ST70 Plus instruments.The iTC5 connects to Raymarine's SeaTalkng network and works with most analog transducers from legacy Raymarine ST30, ST40, ST50, ST60, ST80 and ST290 series instruments. Additionally the iTC5 works with Raymarine fluxgate compass modules as well as rotary and linear rudder feedback transducers to support compass heading and rudder angle instruments.Features: All-in-one analog to digital converter for depth, speed/temperature, wind, compass and rudder transducers Outputs SeaTalkng and NMEA2000 data to digital instruments, MFDs and more Enables easy upgrade of legacy analog instrument displays without replacing transducers SeaTalkng network provides all necessary power and data connections Ideal for use with Raymarine i70 and ST70 Plus digital instrument systems Specifications: Type: Misc Box Dimensions: 2"H x 7"W x 9"L WT: 1.2 lbs UPC: 723193701164 Quick Guide (pdf)

Read more less

Raymarine CPT-S Bronze thru Hull transducer 20 deg Angled Element Model: E70341 UPC: 723193813058 NEW CPT-S bronze through hull 20 deg angled element CHIRP sonar transducer SpecificationsInstallation typeThrough Hull Material Bronze Power RMS - Max Depth 900ft Frequency CHIRP Fishfinder Beamwidth 25 deg Records Depth Supported Deadrise 15-25 deg

Read more less

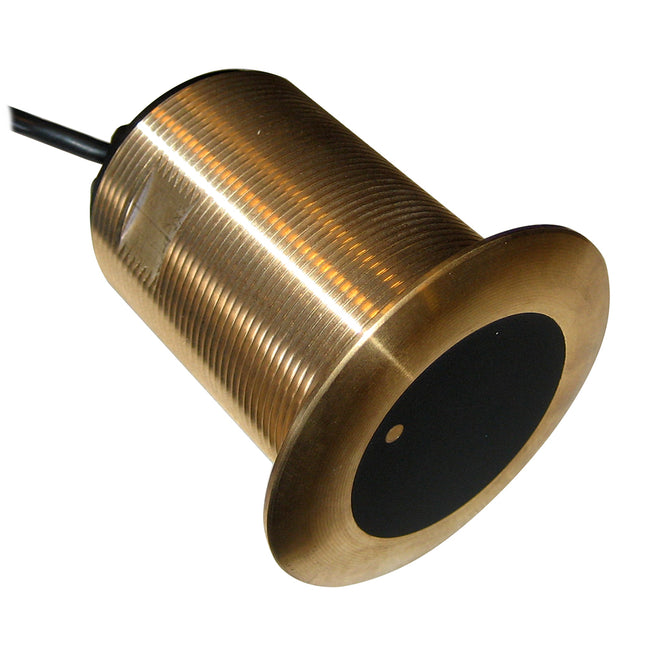

Raymarine CPT-S Bronze thru Hull transducer 12 deg Angled Element Model: E70340 UPC: 723193813089 NEW CPT-S bronze through hull 12 deg angled element CHIRP sonar transducer SpecificationsInstallation typeThrough Hull Material Bronze Power RMS - Max Depth 900ft Frequency CHIRP Fishfinder Beamwidth 25 deg Records Depth Supported Deadrise 7-17 deg

Read more less

Raymarine CPT-S Bronze thru Hull transducer 0 deg Angled ElementModel: A80446NEW CPT-S bronze through hull 0 deg angled element CHIRP sonar transducerSpecificationsInstallation typeThrough Hull Material Bronze Power RMS - Max Depth 900ft Frequency CHIRP Fishfinder Beamwidth 25 deg Records Depth Supported Deadrise 0-6 deg

Read more less

Raymarine Raystar 150 GPS Sensor Seatalkng WITH Pole Mount Model: T70327 72 Channel GLONASS Support SeaTalkng compatible NMEA2000 certified via optional device net adapter The RS150 is designed for simple surface mounting or can be pole mounted with pole mount. The RS150 is SeaTalkng compatible NMEA and NMEA 2000 certified with via an optional device net adapter. What's in the Box: RS150 sensor Surface mount 3 meter SeaTalkng spur cable Pole mount

Read more less

Rotary Rudder ReferenceReplacement Rudder Reference Transducer used on Raymarine and Autohelm autopilot systems. Includes 10 meter cable and mounting hardware. Specifications: Type: Parts Box Dimensions: 4"H x 4"W x 14"L WT: 1.4 lbs UPC: 023193811055 Quick Guide (pdf)

Read more less

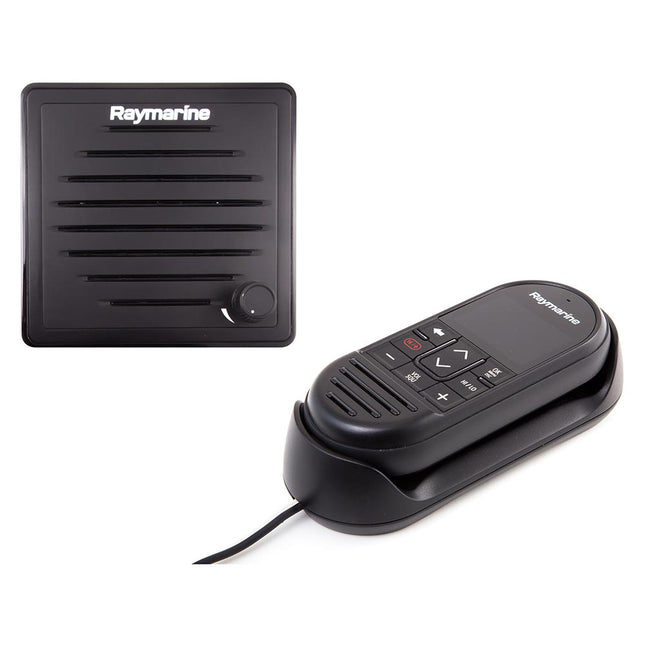

Raymarine Wireless 2nd StationKit for Ray90Model: T70434 Black box, multi-station capable VHF radio Expandable to 2 handsets Built-in loudhailer and fog signal generator Optional external GPS Simple NMEA2000 and NMEA0183 Networking sample Raymarine's fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel's MMSI number during setup and you're ready to go. For GPS operation the optional GA150 passive GPS antenna is required.Use Ray90's position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.Ray90's built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.Ray90's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.SpecificationsSpecial Shipping MessageFree Ground Shipping* Specifications:

Read more less

HV-100 HyperVision Transom Mount Transducer - 6M Cable - HV100.02 New VersionThe HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision, and Conical High-Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost clarity and lifelike sonar imaging.

Read more less

Raymarine HV-100.02 HyperVision Transom Mount TransducerModel: E70643Model: E70643 Transom Mount Deadrise Angles: 0 - 90 deg The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.SpecificationsMaterialPlastic Max Depth 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900 Frequency 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP Beam Width 3D: 180 deg / Down: 60 deg / Conical: 25 deg Records Depth / Temperature Hull Material Fiberglass / Metal Cable Length 19 Ft. / 6 M. Dimensions Length: 224.99 mm (8.86 in), Height: 112.69 mm (4.44 in), Width: 76.00 mm (2.99 in) What's in the Box: E70643 HyperVision 3D transducer with 6 m (19.69 ft) fitted cable Transom bracket Bracket fixing screws (4.2x19 mm A4 stainless steel) x3 M5x10 hex bolt (A4 stainless steel) M5 washer (A4 stainless steel) Hanger bracket Escutcheon plate (used when routing cable through transom or a bulkhead) Adjustment slot washers x2 Escutcheon plate fixings (#8x13 SUS316) x4 Cable clips x3 M6x70 hex bolt (A4 stainless steel) M6 washer (A4 stainless steel) M6 locking nut Documentation

Read more less

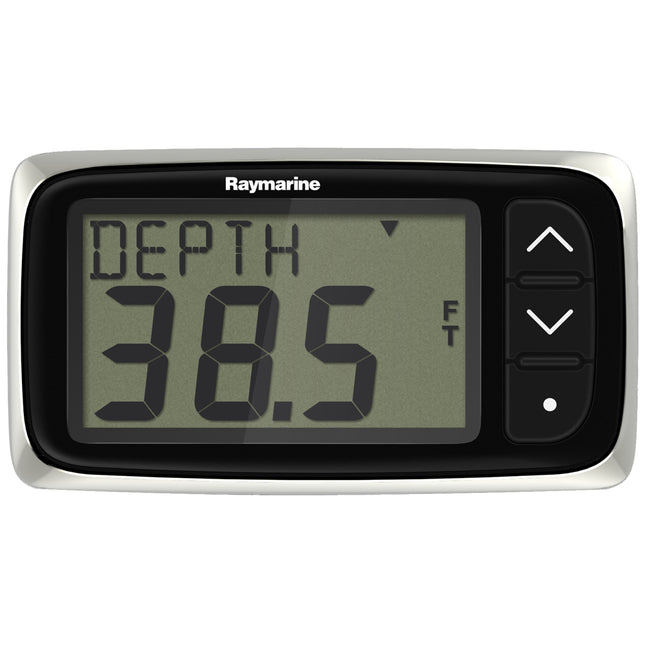

Compact Digital Displays Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted. Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions. Key features: Red backlighting for improved visibility Large controls for ease of use at sea Low power consumption for increased battery life. SeaTalk interface (SeaTalkng when used with SeaTalk converter) Built-in transducer interface Same footprint as the older Raymarine ST40 instrumentation Available Raymarine i40 Instrument Displays i40 Depth Crystal clear depth readout Shallow and deep anchor alarms Minimum depth display i40 Speed Shows current, maximum and average boat speed, log trip and sea temperature i40 Bidata Speed, depth, log and sea temperature. Two sets of data at once in large or small digits i40 Wind Apparent wind speed and direction and true wind speed and direction. Talks to your autopilot to steer your boat to a selected apparent wind angle. Dimensions 5.04 in x 2.83 in x 1.37 in Nominal voltage 12V DC Operating voltage range Current consumptions (12V supply) typical Current consumptions (12V supply) maximum Operating temperature Storage temperature Relative humidity Water proofing IPX6 Connections SeaTalk, Speed transducer connections, Depth transducer connections Conformance Europe 2004/108/EC

Read more less

ECI-100 Universal Engine & Control InterfaceThe ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.Benefits: A simple, single point of connection for engine data and drive-by-wire autopilot control Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display. From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more View engine information displays on your smart phone or tablet with Raymarine mobile apps Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel ECI-100 Engine Data ParametersThe ECI-100 Universal Engine and Control Interface identifies the following parameters: Engine speed Engine oil temperature Engine temperature Engine oil pressure Engine coolant pressure Engine fuel rate Boost pressure Battery potential Transmission oil pressure Transmission oil temperature Total engine hours Fuel tank level Trip fuel used (calculated by ECI-100) Alternator potential Engine torque Engine percent load Transmission gear VIN (not shown on the display) Software number (not shown on the display) Simple Integration, Powerful PerformanceThe ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including: Volvo Penta Yamaha Marine (Command Link Plus only) Caterpillar Yanmar Marine Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalkng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.* SAE - Society of Automotive Engineers standard Brochure (pdf)

Read more less

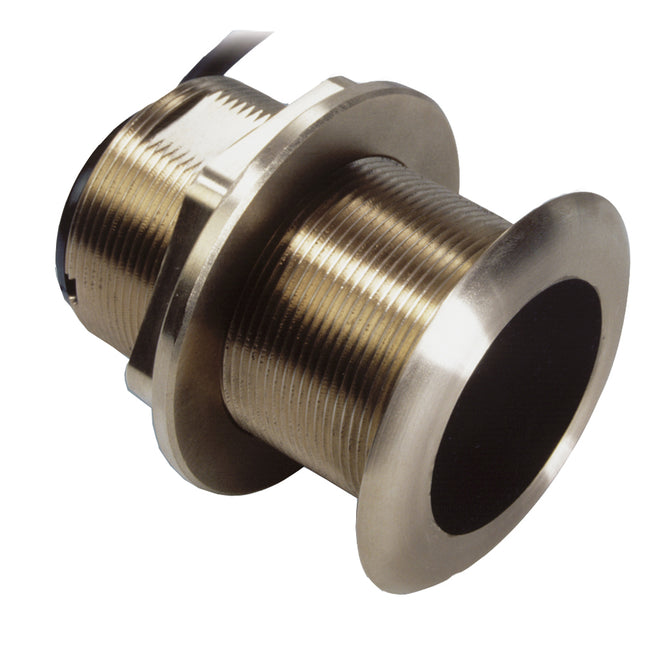

B60 housing 600 Watts Depth & Temperature Dual Frequency (50/200 kHz) 12 Degree Tilt - Fits vessels with hull deadrise of 8 to 15 degrees. Compatible hull material: fiberglass and wood

Read more less

B60 housing 600 Watts Depth & Temperature Dual Frequency (50/200 kHz) 20 Degree Tilt - Fits vessels with hull deadrise of 16 to 24 degrees. Compatible hull material: fiberglass and wood

Read more less

Replacement Rudder Reference Transducer used on Raymarine and Autohelm autopilot systems. Includes 10 meter cable and mounting hardware.

Read more less

replacement rotovector nasthead and wind cups. For se with ST30, ST50, ST40 and ST60 series wind instruments.

Read more less

Raymarine ST900 Speed and Temperature Low Profile Bronze HousingModel: E70686 Speed and fast-response water-temperature Best-in-class speed range from 0.3 to 45 knots (.34 to 52 MPH/.55 to 83 KPH) Analog output Retractable insert in a low-profile plastic housing with a water valve ST900-Retrofits into Airmar P120 and B120 housings Speed performance has been taken to the next level with the introduction of the ST900 Speed/Temperature sensor. Featuring the new Gen2 Paddlewheel, the ST900 out-performs all other paddlewheel sensors for responsive startup and linearity. The Gen2 Paddlewheel begins delivering accurate speed reporting as low as 0.3 knots and maintains smooth speed output through 45 knots.These low-profile housings are nearly flush and minimize drag with only 5 mm (3/16) extending outside the hull. The housing has a valve assembly that helps to minimize water ingress in the bilge when the sensor is removed for routine maintenance of the paddlewheel.Airmar's new
