Series 40 Orbit BB Double Block with Becket & Swivel ShackleThe Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.Features: Class-leading dynamic and static load ratings Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks Low friction 2-stage ball bearing system for efficient and effortless trimming Soft attachment, lashing and traditional swivel shackle head options Low profile and compact High performance cleating Applications Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft) Halyard, vang and backstay applications on boats to 9m (30ft) Control line applications on larger yachts Specifications: Sheave Ø: 1-9/16 in. Max. Rope Ø: 3/8 in. Pin Ø: 5/32" M.W.L.: 1320 lb. B. L.: 2650 lb. Weight: 4.6 oz.

Read more less

Series 40 Orbit BB Quad Block with Swivel ShackleThe Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.Features: Class-leading dynamic and static load ratings Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks Low friction 2-stage ball bearing system for efficient and effortless trimming Soft attachment, lashing and traditional swivel shackle head options Low profile and compact High performance cleating Applications Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft) Halyard, vang and backstay applications on boats to 9m (30ft) Control line applications on larger yachts Specifications: Sheave Ø: 1-9/16 in. Max. Rope Ø: 3/8 in. Pin Ø: 5/32" M.W.L.: 1320 lb. B. L.: 2650 lb. Weight: 6.8 oz.

Read more less

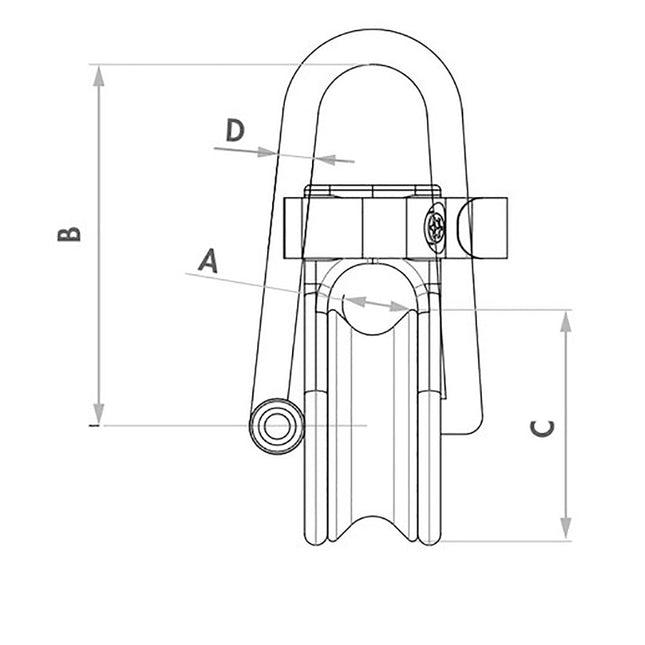

Soft Snatch Block - 16mm Rope SizeAvailable in 4 models, the collection of soft snatch blocks will quickly become an essential piece of kit: flying sail furling, Furler terminals, rigging deviation, and barber-haulers.Made from anodized aluminum, these are both lightweight and robust. The Dyneema loop ensures easy installation. They are easy to open and close too, thanks to the Velcro strip.Applications: Terminals for flying sail furlers 2/1 mainsail halyard Rigging deviation Barber-hauler Specifications: Materials -Anodized aluminum - Dyneema loop  Rope size -16mm Loop diameter - 8mm Working load (lb) 9920 Breaking load (lb) 19840 Weight (lb) 0.549 Dimensions: A (inch) 5/8" B (inch) 3 7/64" C (inch) 2 11/64" D diameter (inch) 5/16"

Read more less

Series 5 Fiddle Reverse Shackle Block - 54mmPlain Bearing BlocksBarton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 54mm x 17mm Max rope diameter: 12mm Safe working load: 750kg / 1650lbs Breaking load: 1500kg / 3300lbs Length: 185mm Weight: 278g

Read more less

Series 5 Fiddle, Swivel, Becket, and Cam Block - 54mmPlain Bearing BlocksBarton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 54mm x 17mm Max rope diameter: 12mm Safe working load: 750kg / 1650lbs Breaking load: 1500kg / 3300lbs Length: 209mm Weight: 469g

Read more less

Series 5 Fiddle Swivel Block- 54mmPlain Bearing BlocksBarton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.Specifications Sheave size: 54mm x 17mm Max rope diameter: 12mm Safe working load: 750kg / 1650lbs Breaking load: 1500kg / 3300lbs Length: 185mm Weight: 300g

Read more less

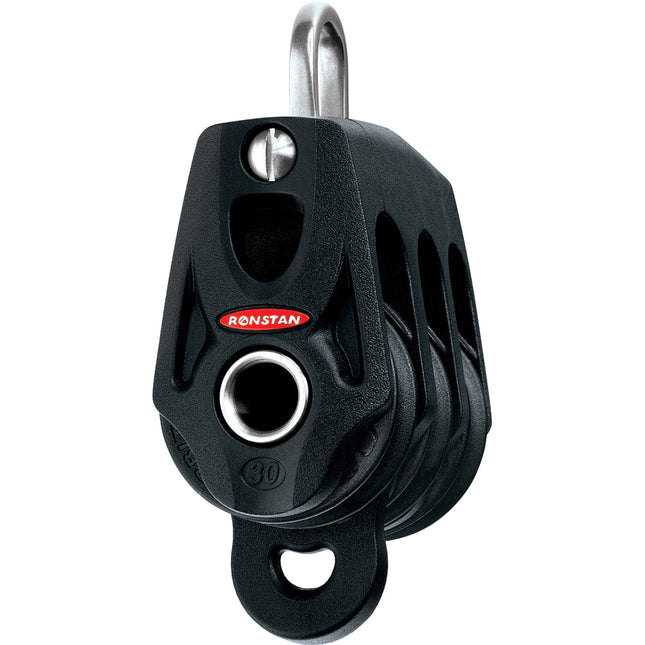

Series 30 Ball Bearing Orbit Block™ - Triple - BecketBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø:t30mm(1-3/16")Max. Rope Ø:t8mm(5/16")M.W.L.:t550kg(1,210lbs)B. L.:t1,100kg(2,430lbs)Weight:t75g(2.6oz) Quick Guide (pdf)

Read more less

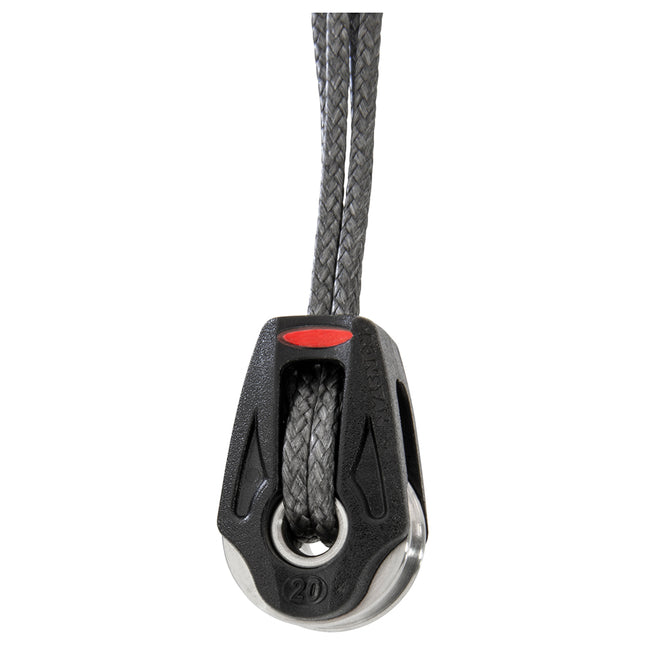

Series 20 BB Block Single Becket Option Lashing High LoadFeatures: Suits up to 4mm (5/32”) lashing Supplied with 750mm (30”) x 2mm (3/32”) diameter, Dyneema® single braid lashing line

Read more less
