Simrad SS175M Stainless steel CHIRP Thru Hull with 20 Degree Tilted Element Model: 000-13779-001 80-130 kHz Medium CHIRP frequencies Suitable for fiberglass and wood hulls 1 internal broadband ceramic Thru-hull with stainless steel housing The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size.

Read more less

Simrad SS175M Stainless steel CHIRP Thru Hull with 12 Degree Tilted Element Model: 000-13778-001 80-130 kHz Medium CHIRP frequencies Suitable for fiberglass and wood hulls 1 internal broadband ceramic Thru-hull with stainless steel housing The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size.

Read more less

Simrad SS175M Stainless steel CHIRP Thru Hull with 0 Degree Tilted Element Model: 000-13777-001 80-130 kHz Medium CHIRP frequencies Suitable for fiberglass and wood hulls 1 internal broadband ceramic Thru-hull with stainless steel housing The SS175M is a stainless steel, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size.

Read more less

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter KitComprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.N2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.Features: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connectionSpecifications: Operating temperature: -25°C to +55°C (13°F to 131°F) Protection: Splashproof, IPx5 Weight: 0.6 kg (1.3 lbs) Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm Power supply: 9-31.2 V DC Load: 140 mA + drive unit load Performance: Drive: 8 A cont., 16A for 1s Network: 1xMicroC (NMEA2000) Feedback: Variable voltage/resistive 0-5V Drive output: To PUMP-1 or HELM-1 Power supply: 9-31.2 V DC Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch: 12/24V DC, min 10mA, max 3A Precision-9 Specifications: Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69") Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz) Supply and interface: 8-16 V via NMEA 2000 Power consumption: 0.4 W NMEA 2000 Load Equivalence No. (LEN): 1 NMEA 2000 ports (input/output): 1 Calibration: Automatic (User Prompted) Repeatability: ± 1.0° (or better) Roll/Pitch range: ± 45° Heading accuracy: ± 2° after calibration Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2° Environmental protection: IPx7 Compass safe distance: 0.5M(1.7') Temperature range operation: -25 to +65°C (-13 to +149°F) Temperature range Storage: -30 to +70°C (-22 to +158°F) Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 10"W x 16"L WT: 7.2 lbs UPC: 9420024155653

Read more less

NSX™ 3009 9" Chartplotter & Fishfinder - Display Only - No TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery from state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Screen Size: 9" Touchscreen: Yes Transducer Included: No Box Dimensions: 5"H x 12"W x 16"L WT: 6.6 lbs UPC: 9420064110056 Brochure (pdf)

Read more less

Simrad NSX 3009 - Smart Chartplotter / fishfinder. No transducer. C-MAP® DISCOVER™ X chart includedModel: 000-15218-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 9" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1280 x 720 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 18.8 W (1360 mA at 13.8 V) Recommended Fuse Rating 3A Physical Dimensions W x H x D With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX 3009 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Gimbal mounting bracket with knobs Suncover NSX 3009 Dash mount kit 4-pin Power Cable Fuse Kit NSX Corner bezel clips for NSX

Read more less

Simrad NAC-2 VRF Low-current Core Pack Model: 000-13337-001 UPC: 9420024155653 NAC-2 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer andPrecision-9 compass. The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak). Specifications Operating temperature -25°C to +55°C (13°F to 131°F) protection Splashproof, IPx5 Electrical Power supply 9-31.2 V DC Load 140 mA + drive unit load Performance Drive: 8 A cont., 16 A for 1 s Interfaces network 1xMicroC (NMEA2000) Feedback Variable voltage/resistive 0-5V Drive output To PUMP-1 or HELM-1 Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch 12/24V DC, min 10mA, max 3A What's in the Box: NAC-2 Autopilot Computer PRECISION-9 COMPASS N2k Backbone Starter Kit

Read more less

Simrad XSONIC SS164 50/200Khz 20 Degree Tilt 9-Pin Connector Model: 000-13918-001 Depth & Temperature 50/200 kHz 1 kW RMS High-Performance Stainless Steel Specifically designed for metal-hull boats, Airmar has taken our innovative Tilted Element™ technology to a higher power. The SS164, 1kW transducer is perfect for fast, tailored tournament-sportfishing vessels that cannot have a High-Performance Fairing. The flush mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. And 1kW takes your fish finder to the next power.

Read more less

Simrad XSONIC SS164 50/200Khz 12 Degree Tilt 9-Pin Connector Model: 000-13917-001 Depth & Temperature 50/200 kHz 1 kW RMS High-Performance Stainless Steel Specifically designed for metal-hull boats, Airmar has taken our innovative Tilted Element™ technology to a higher power. The SS164, 1kW transducer is perfect for fast, tailored tournament-sportfishing vessels that cannot have a High-Performance Fairing. The flush mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. And 1kW takes your fish finder to the next power.

Read more less

Simrad XSONIC SS164 50/200Khz 0 Degree Tilt 9-Pin Connector Model: 000-13916-001 Depth & Temperature 50/200 kHz 1 kW RMS High-Performance Stainless Steel Specifically designed for metal-hull boats, Airmar has taken our innovative Tilted Element™ technology to a higher power. The SS164, 1kW transducer is perfect for fast, tailored tournament-sportfishing vessels that cannot have a High-Performance Fairing. The flush mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks with no damage at all. The ceramic arrays are tilted inside the housing giving you the perfect vertical beam with maximum energy on what is directly below your boat. And 1kW takes your fish finder to the next power.

Read more less

RS40-B VHF Radio with Class B AIS Receiver & GPS-500 GPS AntennaSee and Be Seen with Integrated AISThe RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbors and waterways. AIS information can be viewed on the radio’s built-in screen or overlaid on your chart or radar screen through a compatible multifunction display.Removable Fist MicThe RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.Expandable with Wireless HandsetsAdd an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.Features: Integrated Class B AIS transceiver Class D DSC-approved VHF radio Integrated GPS receiver Removable fist mic supports front or rear connection Connect up to two wireless handsets Add an optional loudhailer or external speaker NMEA 0183® and NMEA 2000® connectivity Includes GPS-500 for enhanced performance Unit Dimensions 7.92" wide x 3.85 High Flush mounted In the Box: 000-13613-001 GPS-500  GPS Antenna 000-14921-001 Fist Mic RS40 000-14917-001 Mounting Bracket with Knobs 000-14915-001 Flush Mounting Kit 000-14912-001 Suncover Specifications: AIS: Yes Built-In GPS: Yes NMEA 2000: Yes Remote Mic Capable: Yes Box Dimensions: 10"H x 11"W x 12"L WT: 7.45 lbs UPC: 9420024175910

Read more less

Simrad RS40-B VHF/GPSClass B AIS/GPS TransceiverModel: 000-14818-001 Integrated Class B AIS transceiver Class D DSC approved VHF radio Integrated GPS receiver Removable fist mic supports front or rear connection Connect up to two wireless handsets Add an optional loudhailer or external speaker NMEA 0183® and NMEA 2000® connectivity Includes GPS-500 for enhanced performance Stay safer on the water with this VHF marine radio featuring a Class B AIS transceiver, and built-in GPS. See and be seen by nearby AIS-equipped vessels thanks to an integrated Class B AIS transceiver, and add up to two optional wireless handsets to stay connected from anywhere on board. Bundled with GPS-500 for enhanced GPS performance.The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.What's in the Box: GPS-500: GPS antenna for NAIS-500 AIS transceiver KIT LABEL,RS40-B + GPS-500 RS40 VHF Removable Fist Mic RS40/V60 VHF Mounting bracket with Knobs and Screws RS40/V60 VHF Flush Mounting kit RS40 / RS40-B VHF Suncover RS40/V60 Fist Mic mounting clip

Read more less

Sirmad Pump-5 MKII 24v Hydraulic 3.0L PumpsetModel: 000-15447-002 Reversible Pump High Flow Rate 24V DC 290-960 cc 17.7 - 58.5 cu. in. SteadySteer compatible. PUMP-5: 24V DC: Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).What's in the Box: Pump-5 24v 3 x ORB-5 to 9/16 UNF fittings

Read more less

Sirmad Pump-4 MKII 12v Hydraulic 3.0L PumpsetModel: 000-15446-002 Reversible Pump High Flow Rate 12V DC 290-960 cc 17.7 - 58.5 cu. in. Reversible hydraulic gear pump. 3.0L (183 cui) / min. For cylinder displacement of 290 - 960 cc (17.7 - 58.5 cu. in.). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).What's in the Box: PUMP-4 MKII 12v 3 x ORB-5 to 9/16 UNF fittings

Read more less

NSX™ 3007 7" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Included Transducer: 000-14489-001 Screen Size: 7" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 5"H x 13"W x 15"L WT: 9 lbs UPC: 9420064111909 Brochure (pdf)

Read more less

Simrad NSX 3007 - Smart Chartplotter / fishfinder. With Active Imaging 3-IN-1 TransducerModel: 000-15365-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1024 x 600 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Power Consumption max 11.5 W (830 mA at 13.8 V) Recommended Fuse Rating 2A Physical Dimensions W x H x D With bracket: W: 220 mm (8.66") x H: 145.9 mm (5.74") x D: 79.5 mm (3.13") No bracket, no suncover: W: 195 mm (7.68") x H: 123.0 mm (4.84") x D: 79.5 mm (3.13") No bracket, with suncover: W: 199.9 mm (7.87") x H: 127.9 mm (5.04") x D: 84.5 mm (3.32") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB No External Storage 1 MicroSD slot GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX3007 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Suncover 4-Pin Power Cable Fuse Kit NSX Mounting Bracket NSX Corner Clip Dash mount kit Active Imaging 3-IN-1 Transducer w/ 7.6m (25ft) cable

Read more less

RS40-B VHF Radio with Class B AIS Transceiver & Internal GPSSee and Be Seen with Integrated AISThe RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbors and waterways. AIS information can be viewed on the radio’s built-in screen or overlaid on your chart or radar screen through a compatible multifunction display.Removable Fist MicThe RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.Expandable with Wireless HandsetsAdd an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.Features: Integrated Class B AIS transceiver Class D DSC-approved VHF radio Integrated GPS receiver Removable fist mic supports front or rear connection Connect up to two wireless handsets Add an optional loudhailer or external speaker NMEA 0183® and NMEA 2000® connectivity Unit Dimensions 7.92" wide x 3.85 High Flush mounted In the Box: 000-14921-001 Fist Mic RS40 000-14917-001 Mounting Bracket with Knobs 000-14915-001 Flush Mounting Kit 000-14912-001 Suncover Specifications: Built-In GPS: Yes AIS: Yes NMEA 2000: Yes Remote Mic Capable: Yes Box Dimensions: 7"H x 9"W x 11"L WT: 5.75 lbs UPC: 9420024172506

Read more less

Simrad RS40-B VHFClass B AIS TransceiverModel: 000-14473-001 Integrated Class B AIS transceiver Class D DSC approved VHF radio Integrated GPS receiver Removable fist mic supports front or rear connection Connect up to two wireless handsets Add an optional loudhailer or external speaker NMEA 0183® and NMEA 2000® connectivity Stay safer on the water with this VHF marine radio featuring a Class B AIS transceiver and built-in GPS. See and be seen by nearby AIS-equipped vessels thanks to an integrated Class B AIS transceiver, and add up to two optional wireless handsets to stay connected from anywhere on board.The RS40-B includes a Class B AIS transceiver, which not only receives AIS targets but also transmits your boat's position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.The RS40-B's removable fist mic can be connected to the front or rear of the radio, and optional extension cables allow the mic and radio to be mounted separately. This offers a simple and cost-effective solution for any mounting location, with no cable clutter. For example, the RS40-B can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.Add an optional HS40 wireless handset to take your radio anywhere on board. Each handset duplicates your radio's display and controls, enabling remote access to all key functions. Up to two handsets can be connected to a single RS40-B, and with multiple handsets connected your radio doubles as an on-board intercom.What's in the Box: RS40 VHF Removable Fist Mic RS40/V60 VHF Mounting bracket with Knobs and Screws RS40/V60 VHF Flush Mounting kit RS40 / RS40-B VHF Suncover RS40/V60 Fist Mic mounting clip

Read more less

Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1Model: 000-15952-001 Easy to Install Dash-mount button for one-touch Auto/Standby activation Steer to Heading, Course or Route Automatic Turn Patters NAC-1 Plug & Socket connectors — no screw terminals or wire stripping necessary High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII) Add a second Helm station to a boat using the MFD Power steer commands — no need for additional hydraulics + steering wheel. Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.Specifications Supply Voltag 12vDC Max Drive output 8A continuous, 16 Amp peak Interfaces Network 1xMicroC Feedback Variable voltage from HELM -1 drive unit Drive output To PUMP-1 or HELM-1 What's in the Box: NAC-1 AUTOPILOT COMPUTER PUMP-1 - 12V 0.8L For outboard pilot Autopilot pump fitting kit for ORB steering system Auto-Stby Button - Metal N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000® cable N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators MICRO-C Power cable only Low loss NMEA2000 4-way joiner Point-1 AP Heading and GPS Sensor

Read more less

Simrad B258 Bronze Thru-HullModel: 000-13964-001 The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing. Excellent for deep water bottom and structure fishing up to 500m/1640ft. Calculate depth and temperature from one compact sensor. From 1 knot to 45 knots. Provides extremely accurate echosounding data, even at speeds of over 30 knots. Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water. Built to withstand the environment. The B258 is a bronze, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for use with our BSM-1 echosounder for fishing in shallow, medium and deep waters.

Read more less

Simrad V3100 Class B AISModel: 000-14380-001 Enhanced performance compared to standard Class B AIS Transmit over greater distances with 5-Watt output power Transmit more frequent position updates with SOTDMA Greater transmission reliability in high-traffic areas Integrated ‘black-box’ solution NMEA 2000®, dual NMEA 0183®, and USB connectivity IP67 water-resistant housing Built-in SD card slot for AIS data logging The V3100 Class B AIS incorporates the same SOTDMA technology found in Class A solutions. This self-organising transmission technology allows the system to negotiate a regular transmission timeslot with other AIS units in range, facilitating more frequent and reliable position updates in high-traffic areas. The V3100 transmits updates, based on vessel speed, up to once every five seconds; this provides up to six times the reporting frequency of standard Class B AIS.The V3100 features a maximum transmission power of 5 Watts, 2.5 times the transmission power of standard Class B AIS solutions. This allows vessels equipped with the V3100 to be detected over AIS at a greater range, and provides more reliable transmission to satellite-based AIS receivers.This ‘black box’ AIS solution is designed to work with Simrad and B&G multifunction displays, and other NMEA 2000® or NMEA 0183® connected marine electronics. Output to a standard PC is also supported via USB connectivity. The V3100 is contained in a compact IP67 water-resistant housing, and includes a built-in SD card slot for standalone AIS data logging.What's in the Box: V3100 GPS500

Read more less

Simrad NAIS-500 Class B AIS with NSPL500 Splitter, GPS-500 GPS AntennaModel: 000-13963-001 Class-B approved Send & receive Integrated solution Multiple networking connections Waterproof Lightweight Low power consumption Wide voltage range Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO, or GO series chartplotter / multifunction display and Simrad RS VHF system.What's in the Box: NAIS-500 GPS-500 N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable N2K-T-RD - Micro-C T-connector NSPL-500 Spliiter,Simrad NAIS-500 Class B AIS with NSPL500 Splitter, GPS-500 GPS AntennaModel: 000-13963-001 Class-B approved Send & receive Integrated solution Multiple networking connections Waterproof Lightweight Low power consumption Wide voltage range Reduce your risk of collision with this fully integrated, Class-B AIS transponder - essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO, or GO series chartplotter / multifunction display and Simrad RS VHF system. What's in the Box: NAIS-500 GPS-500 N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable N2K-T-RD - Micro-C T-connector NSPL-500 Spliiter

Read more less

HALO™ Radar Antenna Only - 4'Features: Radar only 4'

Read more less

NSX™ 3007 7" Chartplotter & Fishfinder with HDI TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Includes HDI transducer with CHIRP Sonar and DownScan Imaging™, plus support for Active Imaging™ 3-in-1 and a wide range of compatible 1kW transducers to reach even greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Included Transducer: 000-12728-001 Screen Size: 7" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 5"H x 13"W x 15"L WT: 7 lbs UPC: 9420064111961 Brochure (pdf)

Read more less

Simrad NSX 3007 - Smart Chartplotter / fishfinder. HDI Skimmer med/high 455/800 kHz transducer. Next-generation C-MAP® DISCOVER™ X chartModel: 000-15371-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1024 x 600 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Power Consumption max 11.5 W (830 mA at 13.8 V) Recommended Fuse Rating 2A Physical Dimensions W x H x D With bracket: W: 220 mm (8.66") x H: 145.9 mm (5.74") x D: 79.5 mm (3.13") No bracket, no suncover: W: 195 mm (7.68") x H: 123.0 mm (4.84") x D: 79.5 mm (3.13") No bracket, with suncover: W: 199.9 mm (7.87") x H: 127.9 mm (5.04") x D: 84.5 mm (3.32") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB No External Storage 1 MicroSD slot GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX3007 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Suncover 4-Pin Power Cable Fuse Kit NSX Mounting Bracket NSX Corner Clip Dash mount kit HDI Skimmer med/high 455/800 kHz transducer

Read more less

Simrad GO9 XSE with HDI Transducer and C-Map Discover microSDModel: 000-13211-002UPC: 9420024153680 Easy to use multi touch software Safely and easily navigate using your favourite cartography (Insight, Navionics, CMAP) Determine depth, bottom type and find fish using one of the many echosounder technology options Quick and simple control of entertainment systems connected on NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built in 10 Hz GPS antenna Dual Micro SD card slot Built in echosounder (Broadband & Chirp) Built in DownScan and Sidescan Imaging (transducer required) Built in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.Easier Navigation with Automatic Routing Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your GO XSE display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with Jeppesen CMAP MAX-N+ charts (Jeppesen Easy Routing).With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your crusing style and on-water activities with the ability to edit on-screen data items.The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or TotalScan transducer, the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.If you’re not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2’s built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.With Wi-Fi built in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-3 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.Specifications Waterproofing IPX6 and 7 Screen brightness 1200 nits Screen resolution 480 x 800 (H x W) Operating voltage 10 - 17 V DC Current draw at 13.6 V (sonar off, max B/L) 1 A Low power standby mode Yes Protection reverse polarity and temporary over-voltage to 36 V Alarm output current 1 A max Processor iMX61 single core NMEA 2000 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) Additional ports Sonar 1 port (9 pin connector) Radar 1 port (5 pin Ethernet connector) Card reader Dual microSD What's in the Box: GO9 XSE Gimbal bracket, GO9,V9 GO9 / V9 Bezel Replacement GO9/V9 Dash mount kit Power Cable GO9 XSE Suncover HDI Skimmer MED/HIGH 455/800 transdcuer. 9 pin Black Connector C-MAP Discover microSD

Read more less

Simrad IS42 Speed/Depth Package with DST810 TransducerModel: 000-13293-002UPC: 9420024155189 Optically bonded 4.1-inch colour display Display wind, speed, depth, engine data, autopilot status and more Intuitive operation Easy installation Add an OP12 keypad for full Simrad autopilot control Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers Low power consumption- Low-profile glass helm design Advanced AIS, receive AIS messages and call DSC targets* (*Compatible VHF required) Certified NMEA 2000® connectivity Multi-purpose sailing instrument and autopilot display with a 4.1-inch colour screen, optically bonded for zero condensation and featuring transflective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other Simrad MFD’s and system components.The IS42 is a smart multi-purpose instrument featuring a full colour display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.Specifications Network Load 3 LEN Display Size 4.1" (diagonal). 4:3 Aspect ratio Display type Transmissive TFT-LCD, bonded. White LED backlight Display resolution 320 x 240 pixels Illumination White for day mode. Red, green, blue or white for night mode Waterproof rating IPX7 Operating Temperature -15 to +55 C (5 F to +131 F) Dimensions 118 x 115 x 28mm (4.6 x 4.5 x 1.1") What's in the Box: IS42 Display DST810 N2k Backbone Starter Kit

Read more less

Simrad S2009 9" Broadband Fishfinder Model: 000-12185-001 Dedicated fish-finder with integrated Broadband Sounder™ module and CHIRP technology High depth penetration and ping speed Vertical heave compensation 9-inch 480x800-pixel portrait LCD High-brightness display ideal for outside installation See clearly with White Line, White Marker, and Colour Erase features Simple operation with 8 direct-access menu keys Bracket and flush mounting options (bracket included) Ethernet, NMEA0183 & NMEA2000 connectivity. Full ethernet networking avaliable via RTM-2 Software Update. June 2016 Full-sized SD card slot for logs and software updates The Simrad S2009 Fish Finder combines the Broadband Sounder™ module with CHIRP technology, 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels. The S2009 includes a Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers. The S2009 includes CHIRP technology, which utilizes frequency-swept sonar pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar at all depth ranges. Simrad technology makes CHIRP available not only on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP technology simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade. Heave compensation eliminates the vertical effects of wave action from sonar depth measurements, enhancing the accuracy and consistency of bottom tracking in rough conditions. This feature requires a compatible NMEA 2000®-connected satellite compass such as the Simrad HS60 or HS70 to provide real-time heave data. With a compact 9-inch LCD in portrait orientation, the S2009 maximises screen size where limited mounting space is available. Its portrait orientation is well suited to fishing applications, displaying the water column with a high level of vertical detail. The S2009 Fish Finder offers a range of features to quickly and easily adjust the on-screen image to suit the task at hand. White Line clearly separates the water column from the bottom with a high-contrast white line, for enhanced bottom visibility. White Marker allows any user-selected colour from the fish finder image to be replaced with high-contrast white, highlighting specific sonar echoes corresponding to fish or other targets of interest. Colour Erase allows any selected colour to be blended into the background, eliminating unwanted noise or unimportant features from the display. The S2009 is operated by an integrated keypad and rotary dial. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, for one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009's large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands. Rugged Design with Flexible Mounting Options The S2009 may be flush-mounted, ideal for installation aboard new vessels. Alternatively, the included gimbal bracket is well suited to outside installations or pilothouse refits. With watertight rear connectors, the S2009 is IPX7 water-resistant from all sides, in either flush- or bracket-mount installation. The S2009 includes Ethernet connectivity to share sonar data with other Simrad systems including NSO evo2 and NSS evo2 multifunction displays. The S2009 may also be used as a dedicated fish finder display for NSS evo2 systems, receiving sonar data from an NSS evo2 display’s built-in Broadband Sounder™ module. Other devices may be networked via the S2009's NMEA 2000® and NMEA 0183® ports, enabling additional functionality such as waypoint marking and sharing with compatible devices. * Simrad Commercial S2009 and S2016 products currently only support limited Ethernet networking capabilities to Simrad BSM-2 and BSM-3 sounders. Full Ethernet networking to the Simrad line of Displays and ECDIS, as well as the SonarHub sounder module will be implemented in the RTM2 software release expected delivery June 2016. The S2009 is capable of recording sonar history to a full-sized SD memory card, which may be easily inserted and removed via a waterproof access hatch on the front panel. Recorded sonar logs may be used with the cloud-based Insight Genesis™ service to create custom fishing charts, or BioBase GIS software to create detailed aquatic bathymetric and vegetation maps for survey and research purposes. Specifications Display Resolution 480 x 800 Type 9in LED backlit colot LCD Brightness 1200 cd/m2 Overview Output power 1kw/RMS Max depth 3,000 m / 10,000 ft (transducer-dependent) Transducers Standard Broadband and single-channel CHIRP Transducers Frequencies CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz Physical Dimensions 8.83 in W x 10.24in H x 3.24in D Wtaer resistance IPX7 Power Input voltage 10.8 - 31.2vDC Consumption 11w Network connectors NMEA0183 1 NMEA2000 1 Ethernet 1 What's in the Box: S2009 Suncover Powercable Gimbal bracket and knobs

Read more less

AP48 Autopilot Control Head with Rotary KnobPresented on a wide-angle and zero-fog color display, the AP48 is engineered for responsiveness and ease of use in all conditions. It pairs a large aluminium rotary control dial with dedicated keys for instant access to steering modes, automated turn patterns, and more.Features: Intuitive autopilot interface with extended keypad Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch color display Ultra-wide 170-degree viewing angle Dedicated one-degree and ten-degree port/starboard dodge keys Automated turn patterns for fuel-efficient, hands-free maneuvers No Drift steering holds your course against wind and tide Depth contour tracking makes it easy to fish ledges and drop-offs Specifications: Type: Parts Box Dimensions: 4"H x 8"W x 11"L WT: 2.8 lbs UPC: 9420024162514

Read more less

Simrad GO9 XSE 9" MFD No Transducer wit C-Map Discover microSDModel: 000-13210-002 Easy to use multi touch software Safely and easily navigate using your favourite cartography (Insight, Navionics, CMAP) Determine depth, bottom type and find fish using one of the many echosounder technology options Quick and simple control of entertainment systems connected on NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built in 10 Hz GPS antenna Dual Micro SD card slot Built in echosounder (Broadband & Chirp) Built in DownScan and Sidescan Imaging (transducer required) Built in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.Easier Navigation with Automatic Routing Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your GO XSE display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with Jeppesen CMAP MAX-N+ charts (Jeppesen Easy Routing).With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your crusing style and on-water activities with the ability to edit on-screen data items.The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or TotalScan transducer, the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.If you’re not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2’s built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.With Wi-Fi built in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-3 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.Specifications Waterproofing IPX6 and 7 Screen brightness 1200 nits Screen resolution 480 x 800 (H x W) Operating voltage 10 - 17 V DC Current draw at 13.6 V (sonar off, max B/L) 1 A Low power standby mode Yes Protection reverse polarity and temporary over-voltage to 36 V Alarm output current 1 A max Processor iMX61 single core NMEA 2000 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) Additional ports Sonar 1 port (9 pin connector) Radar 1 port (5 pin Ethernet connector) Card reader Dual microSD What's in the Box: GO9 XSE Gimbal bracket, GO9,V9 GO9 / V9 Bezel Replacement GO9/V9 Dash mount kit Power Cable GO9 XSE Suncover C-Map Discover microSD

Read more less

Simrad AP48 Autopilot Controller Model: 000-13894-001 Intuitive autopilot interface with extended keypad Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display Ultra wide 170-degree viewing angle Dedicated one-degree and ten-degree port/starboard dodge keys Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds your course against wind and tide Depth contour tracking makes it easy to fish ledges and drop-offs Easy setup with auto tuning and calibration Low-profile glass helm design Certified NMEA 2000® connectivity The AP48 Autopilot Controller is a premium dedicated control head for Continuum autopilot systems, enhanced with modern glass helm styling. Engineered for responsiveness and ease of use in all conditions, the AP48 pairs a large aluminium rotary control dial with dedicated ‘dodge keys’ to adjust heading port or starboard in one- or ten-degree increments. With an optically bonded 4.1-inch display and its intuitive controls, the AP48 also provide full access to advanced Continuum steering features including automated turn patterns, No Drift steering, depth contour tracking, and more. Specifications Display size 4.1" (diagonal). 4:3 Aspect ratio Display resolution 320 x 240 pixels Display Type Transmissive TFT-LCD. White LED backlight Waterproof rating IPx7 Input Voltage 13.5V Input Draw Key backlight off = 1.62W (0.12 A); Key backlight max = 2.97W (0.22 A) Dimensions 177mm(Width) x 115mm (Height) x 56mm (deep)

Read more less

Simrad A2004 Autpilot Control HeadModel: 000-13895-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.What's in the Box: A2004 Control Mounting Bracket Dash Mount

Read more less

RS100 Black Box VHF Radio with Handset & SpeakerNavigate safely with the Simrad RS100 VHF marine radio. Stay connected from anywhere on your vessel with up to eight handsets (four wired and four wireless) and four external speakers.A modular system to fit any boatThe RS100 is a modular VHF system that's expandable and customizable to suit any boat and any on-water communication needs. The standard package includes one wired handset and one external speaker. This setup is expandable up to eight handsets (four wired and four wireless) and four external speakers - ideal for use as an on-board intercom with Simrad HS40 wireless or HS100 wired handsets. The wireless handsets duplicate the radio display and controls on easy-to-read screens viewable under all lighting conditions, even bright sunlight.  All primary functions are accessible from the handset with channel scan and favorites, alphanumeric keypad, clear audio, handset station naming and 60-second audio rewind.Designed for Clear CommunicationThis Class D DSC approved radio can make and receive DSC distress signals including your current position, and supports direct calling to other DSC-equipped radios. A dual-channel watch lets you monitor the current channel and emergency channel 16 (in the USA, tri-channel watch monitors the current channel, emergency channel 16, and calling channel 9). A record and replay feature helps to ensure you never miss an important call. The system includes one external speaker with additional outputs for up to four speakers and one optional loudhailer/foghorn.Features: Class D DSC approved VHF radio Integrated GPS receiver Connect up to four wireless and four wired handsets Add an optional loudhailer and up to four external speakers NMEA 0183® and NMEA 2000® connectivity 60-second audio rewind Configurable external speakers with volume offsetting Handset backlight settings can be grouped with NMEA 2000® backlight groups so MFD’s and VHF Radios can have backlight controlled together Track Buddy – track up to five “buddies” using their VHF MMSI Specifications: Remote Mic Capable: Yes NMEA 2000: Yes Listen-Back: Yes Intercom Capability: Yes Hailer: Yes Built-In GPS: No AIS: No Box Dimensions: 9"H x 10"W x 12"L WT: 9.15 lbs UPC: 9420064115969

Read more less

Simrad RS100 Black Box VHF SystemModel: 000-15643-001 Class D DSC approved VHF radio Integrated GPS receiver Connect up to four wireless and four wired handsets Add an optional loudhailer and up to four external speakers NMEA 0183® and NMEA 2000® connectivity 60-second audio rewind Configurable external speakers with volume offsetting Handset backlight settings can be grouped with NMEA 2000® backlight groups so MFD’s and VHF Radios can have backlight controlled together Track Buddy — track up to five "buddies" using their VHF MMSI Navigate safely with the Simrad RS100 VHF marine radio. Stay connected from anywhere on your vessel with up to eight handsets (four wired and four wireless) and four external speakers. Add an optional external GPS-500 for advanced positioning data (AIS functionality).The RS100 is a modular VHF system that's expandable and customisable to suit any boat and any on-water communication needs. The standard package includes one wired handset and one external speaker. This setup is expandable up to eight handsets (four wired and four wireless) and four external speakers - ideal for use as an on-board intercom with Simrad HS40 wireless or HS100 wired handsets. The wireless handsets duplicate the radio display and controls on easy-to-read screens viewable under all lighting conditions, even bright sunlight. All primary functions are accessible from the handset with channel scan and favourites, alphanumeric keypad, clear audio, handset station naming and 60-second audio rewind.This Class D DSC approved radio can make and receive DSC distress signals including your current position, and supports direct calling to other DSC-equipped radios. A dual-channel watch lets you monitor the current channel and emergency channel 16 (in the USA, tri-channel watch monitors the current channel, emergency channel 16, and calling channel 9). A record and replay feature helps to ensure you never miss an important call. The system includes one external speaker with additional outputs for up to four speakers and one optional loudhailer/foghorn.What's in the Box: NRS-1 VHF marine VHF radio: Black box only. HS-100 Wired handset SP100 - Speaker

Read more less

Simrad NSX 3007 - Smart Chartplotter / fishfinder. No transducerModel: 000-15214-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1024 x 600 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Power Consumption max 11.5 W (830 mA at 13.8 V) Recommended Fuse Rating 2A Physical Dimensions W x H x D With bracket: W: 220 mm (8.66") x H: 145.9 mm (5.74") x D: 79.5 mm (3.13") No bracket, no suncover: W: 195 mm (7.68") x H: 123.0 mm (4.84") x D: 79.5 mm (3.13") No bracket, with suncover: W: 199.9 mm (7.87") x H: 127.9 mm (5.04") x D: 84.5 mm (3.32") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB No External Storage 1 MicroSD slot GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX3007 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Suncover 4-Pin Power Cable Fuse Kit NSX Mounting Bracket NSX Corner Clip Dash mount kit

Read more less

Verado Autopilot Fitting Kit for Mk2 Pumps with SteadySteer SwitchFitted hose kit designed for simplified SteadySteer installation into Verado steering systems, reducing the incidence of faulty field terminated hydraulic hoses and incorrect installation layouts.SteadySteer Benefits: Control the autopilot using the helm – enhanced usability Steer manually through turns - a convenient manual override Hassle-free Autopilot reengagement - reengages automatically on straight legs Seamless and intuitive boat control Increased convenience without sacrificing safety with SteadySteer – a functionality for autopilot systems that enables immediate, manual control of a vessel through turns without disengaging the autopilot. Coming out of turns, SteadySteer automatically reengages the autopilot once a new heading is established – no key-presses required.Navigate safely with SteadySteer, a functionality for autopilot systems that allows boaters to take immediate, manual control of the vessel through turns without having to disengage the autopilot. Coming out of turns, SteadySteer automatically reengages the autopilot once a new heading is established.Control the Autopilot with the HelmSteadySteer automatically disengages the autopilot when you turn the vessel manually and then reengages the autopilot when you have established a new heading.  No key-presses, no alarms – just turn the helm.Fewer Distractions – Just DriveNo need to look at a display or push buttons to change course, merely point the bow to your destination.Kit Contains: 3 x Hoses (Black): 2800 PSI max, 915 mm (36") 9/16-18 ORFS to 9/16 UNF 2 x Hoses  (Black): 2800 PSI max, 370 mm (14.5") 9/16-18 ORFS to 9/16-24 ORFS 1 x Hose (Black): 2800 PSI max, 830 mm (32.7") 9/16-18 ORFS (O Ring Face Seal) to 9/16-18 ORFS 1 x Hose, return (Black): 2250 PSI max, 830 mm (32.7") 11/16-16 ORFS to 11/16-16 ORFS 2 x T Connectors: Stainless: 9/16-18 ORFS 1 x T Connector: Brass: 11/16-16 < 9/16-18 > 11/16-16 ORFS 1 x Steady Steer Flow Switch 2 x Adaptor, Straight: 1/4 NPT to 9/16 24 M UNF

Read more less

Simrad Pump-3 12v Hydraulic 1.6L PumpsetModel: 000-15445-001 Reversible Pump Moderate Flow Rate 12V DC 160-550 cc 9.8-33.5 cu.in Reversible hydraulic gear pump. 1.6L (98 cu.in) / min. For cylinder displacement of 160-550 cc (9.8 - 33.5 cu.in). O-Ring Boss (ORB) connections. Includes 3 x ORB-5 to 9/16 UNF fittings. SteadySteer compatible. (NAC-3 / AC42 required).What's in the Box: Pump-3 MKII 3 x ORB-5 to 9/16 UNF fittings

Read more less

NSS7 evo3 7" Chartplotter/Fishfinder MFDNavigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display's reach well beyond the helm. The NSS7 evo3 features a 7-inch display perfect for centre consoles and other installations where space is at a premium. Includes Insight charts.- 7-inch widescreen SolarMAX™ HD display. Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dialIntegrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America) Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere Includes Insight chart Dimensions without bracket and knobs: 9.41"w x 5.90H Dimensions with brack and knbos: 10.35"w x 6.31"h Specifications: Cartography Brand: Navionics/C-Map/Lowrance/CMOR Screen Size: 7" Touchscreen: Yes Transducer Included: No Box Dimensions: 9"H x 9"W x 13"L WT: 6.85 lbs UPC: 9420024154038

Read more less

Simrad NSS7 EVO3 7" MFD with Insight Charts Model: 000-13233-001 UPC: 9420024154038 7-inch widescreen SolarMAX™ HD display Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing (automatic routing unavailable in North America) Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere Includes Insight charts Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS7 evo3 features a 7-inch display perfect for centre consoles and other installations where space is at a premium. Includes Insight charts. SolarMAX™ HD display technology revolutionises the way you see your on-board electronics, with high-definition visuals and clear visibility no matter what the conditions. See clearly from any position, sitting or standing, with extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating offer enhanced daytime visibility; SolarMAX™ HD displays are engineered to reliably endure the heat of the summer sun, perfect for outside installations. These all-weather screens are optically bonded to prevent condensation, and will never fog. Any time, any conditions, SolarMAX™ HD gives you the ultimate view. NSS evo3 displays let you take control your way. Switch seamlessly between intuitive touchscreen control with multi-touch gestures, and a full built-in keypad with rotary control dial. Every display function can be controlled by either the touchscreen or the keypad, giving you the flexibility to use whatever controls best suit current conditions and the task at hand. NSS evo3’s full keypad controls also mean you can choose to lock the touchscreen and rely on a classic button and rotary dial interface, without requiring a separate keypad. A built-in echosounder module equips every NSS evo3 display with a wealth of Simrad sonar technologies to suit many sportfishing and cruising applications. StructureScan® HD imaging combines DownScan and SideScan sonar to provide a picture-like views of fish holding structure, while award-winning ForwardScan® sonar offers a safer cruising experience with a clear view of the bottom ahead. Broadband Sounder™ technology provides CHIRP-enabled fish-finding sonar, including support for the all-in-one TotalScan™ transducer or dual-channel CHIRP transducers. Dual-channel transducers provide coverage of multiple depth ranges and cone angles in a single unit, perfect for targeting specific parts of the water column in sportfishing applications. Dual transducer ports allow simultaneous use of either StructureScan® HD or ForwardScan® and CHIRP or traditional sonar. NSS evo3 displays are compatible with Simrad expansion modules including game-changing StructureScan® 3D imaging, the advanced S5100 Broadband Sounder with CHIRP, and many other plug-and-play network modules. Module capabilities can be shared between multiple NSS evo3 displays, and the ability to add modules at any time means your Simrad display system can easily grow and change along with your boating interests and technology needs. Expand your view with Halo™ Pulse Compression radar, Broadband Radar™, or HD Digital Radar solutions. NSS evo3 displays integrate with these network-connected Simrad radar solutions to provide a full-featured radar interface complete with easy pre-set modes, custom manual tuning, MARPA target tracking, guard zones, overlay views, and many other features depending on your choice of radar system. Take complete control of your Simrad autopilot with the NSS evo3 touchscreen or keypad. Set a heading, maintain your current course against wind and tide, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can serve as the sole controller for a ‘black box’ autopilot system, or can be combined with dedicated autopilot controllers and wireless remotes. A networked Simrad autopilot system can be controlled from any NSS evo3 display on board, perfect for dual-helm vessels. Industry-standard NMEA 2000® connectivity enables vessel-wide integration with a range of Simrad and third-party electronics including engine and fuel monitoring capabilities, digital instrumentation, AIS integration, sound system control, and much more. All NSS evo3 displays include an integrated high-gain, high-speed GPS/GLONASS receiver that updates your position ten times per second, ideal for accurately tracking the motion of fast-moving powerboats. In outside bracket-mount installations, and in flush-mount installations in many fibreglass boats, this removes the need to purchase and install a separate GPS receiver. An optional external GPS receiver may be used as an auxiliary position source, or in certain installations that prevent a clear GPS signal from reaching the integrated receiver. The NSS evo3 includes a user-programmable function key to provide instant access to your choice of features. Enjoy one-button access to the feature you use most — such as navigation, autopilot, or radar. Alternatively, assign the button to a feature you’d like to keep close to hand — create a MOB key for emergencies, a dedicated key to record sonar logs for Insight Genesis, or a key to lock the touchscreen while you’re using the keypad or an external controller. You can choose any two functions — one for a quick press, and one for a long press. Designed for power boaters, TripIntel™ technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips. While underway, the Cruise Performance Indicator makes it easy to tune trim and throttle to achieve maximum fuel economy and stay in the ‘green zone’, maximising range and keeping fuel costs down. Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and the NSS evo3 display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with C-MAP MAX-N+ charts (Easy Routing). * Automatic routing features are unavailable in North America. Built-in GoFree™ Wi-Fi enables online chart downloads, Insight Genesis map creation, and easy system-wide software updates. Browse and purchase a wide range of cartography online from the GoFree™ Shop, and download charts directly to your display’s memory card without leaving the helm. Upload sonar logs recorded on your display directly to the Insight Genesis cloud service to create detailed custom charts, a perfect way to explore your favourite inland and coastal fishing spots. GoFree™ online services can be used anywhere a Wi-Fi internet connection is available. Out on the water, GoFree™ Wi-Fi and the free GoFree™ Link app lets you view your NSS evo3 display using an Apple iPhone or Android smartphone, and control your display from an Apple iPad or Android tablet. Take your display anywhere on board for access to charts, radar, sonar, engine data, and more — exactly where and when you need it. NSS evo3 displays can be bracket mounted for easy installation almost anywhere, or flush mounted for a fully integrated Glass Bridge look and feel. These displays have a low flush-mount profile of just eight millimetres, and feature the same sleek contemporary styling as other Simrad Glass Bridge products including multifunction displays, radar control units, fish finders, autopilot controllers, instruments, and keypads. Choose from a wide range of cartography options to best suit your location and usage with support for C-MAP MAX-N+, Navionics, Insight, Insight Genesis, and NV Digital Charts. This model includes Insight charts. Specifications General Waypoints, Routes and Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. Cartography included Insight Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) Radar (inc. compatibility) Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar External Storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS Weather SiriusXM via WM-3 (USA only), GRIB Internal Storage 16 GB Sonar (inc. compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders GPS Internal AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors) Warranty Period 3 Years Interface Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers Multimedia via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) Autopilot Full auto pilot control and commissioning Digital switching BEP C-Zone, Naviop Networking Ethernet 1 x 5 pin yellow connector x 1 Mbit NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) Video 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Wifi Internal Bluetooth Internal Technical Enviromental Dimension 239 x 150 x 90 mm (9.4 x 5.9 x 3.5inch)With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66) Mounting type Bracket (Supplied) or panel mount Storage Temperature Range -20°C to +60°C (4°F to 140°F) Waterproof rating IPX6 and 7 Operating Temperature Range -15°C to +55°C (5° F to 131° F) GPS Navigation Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec Correction WASS, MSAS, EGNOS, GLONASS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 34 Channels Update rate 10 Hz Power Recommended Fuse Rating 5 A Supply Voltage 10 - 31.2 V DC Display Resolution 600 x 1024 Screen size and type High Visibility SolarMax HD® IPS 7inch optically bonded TFT Backlight color White Viewing angles 80° top/bottom, 80° left/right

Read more less

Simrad GO9 XSE Multi-function display with built in Echosounder, GPS and Wi-Fi. Super-bright, 9 inch multi-touch widescreen display with NMEA 2000 and radar interface. Includes Active Imaging transducer and a C-Map Discover microSD.Model: 000-14840-002 Easy to use, High brightness 9" tablet style touchscreen Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images Radar port for connection to a Simrad solid state radar Direct Audio, Autopilot, communication and engine connection and control over NMEA2000 Built-in WiFi for mobile device mirroring and internet downloads of charting and software The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.The Simrad GO9 XSE is fully customisable to suit your vessel and your favourite on-water activities — from power boating, to fishing, to water sports. Customise your home screen with shortcuts to the features you use most, and personalise it with your choice of wallpaper. Adjustable split-screen views and customisable panel layouts let you see everything you need on-screen at once, whatever your activity.Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your GO XSE display will suggest the shortest, safest route taking into consideration the draught and dimensions of your vessel. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Autorouting), and with Jeppesen CMAP MAX-N+ charts (Jeppesen Easy Routing).With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your crusing style and on-water activities with the ability to edit on-screen data items.The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO9 XSE. Add a suitable transducer, available separately or bundled with your display, and the GO9 XSE works as a powerful fishfinder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. With an optional HDI or TotalScan transducer, the GO9 XSE also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.If you’re not at home on the water without a good soundtrack, the Simrad SonicHub®2 marine audio system is the perfect companion to a GO9 XSE display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices, play MP3 files from a USB flash drive, or listen to the SonicHub 2’s built-in AM/FM radio. SonicHub 2 brings complete control of your audio entertainment to your GO9 XSE display, eliminating the need for a separate stereo head-unit and letting you listen to your music, your way.With Wi-Fi built in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-3 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.Specifications Casing PC/ABS Operating temp -15°C to +55°C (+5°F to +131°F) Water ingress IPX6 and 7 Weight (excluding mounting hardware) 1.315 kg (2.9 lbs) - GO9 XSE Screen brightness 1200 nits Screen resolution 480 x 800 (H x W) Viewing angle in degrees (typical value at contrast ratio = 10) L/R: 70, top: 50, bottom: 60 Operating voltage 10 - 17 V DC Current draw at 13.6 V (sonar off, max B/L) 1 A Low power standby mode yes Protection reverse polarity and temporary over-voltage to 36 V Alarm output current 1 A max Processor iMX61 single core Conformity CE, C-Tick NMEA 2000 (compliant) 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) Card reader Dual microSD What's in the Box: GO 9 XSE Gimbal brackket Bezel Dash mount Power cable Suncover Active Imaging 3in1 transducer C-Map Discover microSD

Read more less

GO9 XSE Combo with Active Imaging 3-in-1 Transom Mount Transducer & C-MAP Discover ChartThe GO9 XSE is a perfect way to add GPS navigation, sonar, radar, and more to your sport boat, cruiser, or center-console. The included Active Imaging™ 3-in-1 transducer delivers CHIRP sonar and picture-like SideScan and DownScan imaging™ views. Enjoy intuitive touchscreen control over a multitude of optional accessories, from autopilot to entertainment.Features: Active Imaging 3-in-1 Sonar (CHIRP/Side/Down)  FishReveal™ Smart Target ViewQuick and simple control of entertainment systems connected on NMEA2000 Vessel circuit control when connected to a C-zone digital switching system View and monitor engine data while underway Low Profile Glass dash styling Super bright widescreen display Built-in Wi-Fi connectivity Software update notifications and downloads when connected to the internet Screen mirroring when connected to a mobile device Built-in 10 Hz GPS antenna Dual Micro SD card slot Built-in echosounder (Broadband & CHIRP) Built-in Forwardscan Imaging (transducer required) Radar port for direct connection to Simrad 3G/4G or Halo Radar scanners Operable with OP40/OP50 Remote Advanced NMEA2000 networking C-MAP Discover Chart Features: Full-Featured Vector Charts Custom Depth Shading High-Resolution Bathymetry Easy-Routing Tides & Currents Specifications: Touchscreen: Yes Screen Size: 9" Included Transducer: 000-14489-001 Cartography Brand: Navionics/C-Map/Lowrance Transducer Included: Yes Box Dimensions: 9"H x 10"W x 13"L WT: 9.6 lbs UPC: 9420064120130

Read more less

NAC-2 Low Current Course ComputerThe NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).Features: Reliable autopilot performance based on Simrad Continuum™ steering technology Recommended for boats up to 10M (33') in length Output of 8 Amps continuous, 16 Amps peak Clutch output (3 Amps maximum) Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Supports Simrad RF25 rudder feedback units Plug-and-play connectors for easy installation NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays Specifications: Type: Parts Box Dimensions: 3"H x 10"W x 13"L WT: 3.75 lbs UPC: 9420024154380

Read more less

Simrad NAC-2 Low Current Autopilot Computer Model: 000-13249-001 UPC: 9420024154380 Recommended for boats up to 10 metres (33 feet) in length Plug & Play installation Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves 12 or 24 V DC input 8A continuous output, 12A peak Solenoid output capable 3 A clutch output Optional Auto/Standby Switch Drive & Processing circuitry and components identical to commercial autopilots Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Resistive Rudder -Feedback. New SD10 Mechanical Drive plugs straight in to drive and RFU connectors The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak). Specifications Waterproof rating Splashproof, IPx5 Power 9-31.2 vDC Power consumption 140mA Plus drive load Performance Drive 8 amps, 12 Amps fo r1 second Interfaces Network 1 Micro C NMEA2000 Feedback Variable voltage/resistive 0-5V Drive Output To PUMP-1 or HELM-1 Powersupply 9-31.2 V DC Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA Clutch 12/24V DC, min 10mA, max 3A What's in the Box: NAC-2 N2KEXT-2RD - 0.61 m (2-ft) NMEA N2K-T-RD T

Read more less

Simrad Verado autopilot fitting kit for MKII Pumps 2, 3, 4 &5 with SteadySteerModel: 000-15950-001 Smoother steering Use helm to control autopilot — for greater ease-of-use Steer manually through turns - convenient manual override Autopilot engages automatically on straight legs Seamless and intuitive boat control Fitted hose kit designed for simplified Steadysteer installation into ORB steering systems, reducing the opportunity for faulty field terminated hydraulic hoses and incorrect installation layouts.Enjoy increased convenience without sacrificing safety with SteadySteer — a new functionality for autopilot systems that enables immediate, manual control of a vessel through turns without disengaging the autopilot. Coming out of turns, SteadySteer automatically reengages the autopilot once a new heading is established — no key-presses required. Navigate safely with SteadySteer, a new functionality for autopilot systems that allows boaters to take immediate, manual control of the vessel through turns without having to disengage the autopilot. Coming out of turns, SteadySteer automatically reengages the autopilot once a new heading is established.SteadySteer automatically disengages the autopilot when you turn the vessel manually and then reengages the autopilot when you have established a new heading. No key-presses, no alarms — just turn the helm.No need to look at a display or push buttons to change course, merely point the bow to your destination.What's in the Box: 3 x Hoses 1/4" dia. (Black): 2800 PSI max, 915 mm (36") 9/16-18 ORFS (O Ring Face Seal) to 9/16 UNF 2 x Hoses ?/??" dia. (Black): 2800 PSI max, 370 mm (14.5") 9/16-18 ORFS to 9/16-24 ORFS 1 x Hose ?/??" dia. (Black): 2800 PSI max, 830 mm (32.7") 9/16-18 ORFS to 9/16-18 ORFS 1 x Hose, return ?/??" dia. (Black): 2250 PSI max, 830 mm (32.7") 11/16-16 ORFS to 11/16-16 ORFS 2 x T Connectors: Stainless: 9/16-18 ORFS 1 x T Connector: Brass: 11/16-16 < 9/16-18 > 11/16-16 ORFS 1 x Steady Steer Flow Sensor 2 x Adaptor, Straight: 1/4 NPT to 9/16 24 M UNF

Read more less

Simrad FU80 Follow Up RemoteModel: 000-10183-001 Follow Up steering (lever angle directly corresponds to rudder angle) Lever and rudder remain at the commanded angle when released Integrated 1.7-inch display enables remote autopilot control Easy desktop/bulkhead or flush-mount installation Simple plug-and-play NMEA 2000® connectivity The FU80 is a manoeuvre controller for Simrad autopilot systems, and gives you direct control of your boat’s rudder angle through intuitive Follow Up steering. Turn the lever to port or starboard, and your rudder moves to the same angle. When auto-steering, the FU80 enables easy heading or course adjustmentsDedicated Autopilot Control Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading, rudder angle, or autopilot mode changes from anywhere on board. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.Intuitive Follow Up Steering Lever Your Simrad autopilot not only keeps you on course, but lets you hand-steer from any autopilot station on board. The FU80 offers intuitive Follow Up steering, using a lever that can be rotated 70 degrees to port or starboard from its mid-position. When you move the lever, your rudder moves to the corresponding angle. The lever and rudder remain in place until a new rudder angle is set. The commanded rudder angle is clearly shown on the FU80’s integrated display, and also indicated by the position of the lever.Easy Installation This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000® cable into your existing network, offering plug-and-play installation with no complex wiring required.Specifications Display Display: Backlighting LED red/white Display Type Black and white Display Resolution [pixels x pixels] 128x64 Operating Temperature Operating Temperature Operating Temperature 0 to +55°C Operating Temperature Stored -32 to +70°C Water Resistance IPx6 Product Length [mm] 80 Product Width [mm] 144 What's in the Box: FU80 Follow UP remote unit with display 6m factory mounted drop cable N2K-T-RD Network T-Connector front bezel gasket for panel mounting mounting screws loose steering lever installation and user manual

Read more less

Simrad GO7 XSR 7" MFD with HDI transducer and C-Map Discover microSDModel: 000-14326-002 Easy to use multi-touch interface Radar display for Simrad Broadband 3G™/4G™ and Halo™ Pulse Compression radar Supports the widest range of charts Widescreen with bright LED backlight Built-in Broadband Sounder™, CHIRP sonar, StructureScan® HD imaging or ForwardScan™ sonar support (transducer required) Compatible with the Simrad WM-3 SiriusXM satellite weather module (North America only) The Simrad GO7 XSR chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.Add a suitable transducer and your GO series display works as a powerful fishfinder, complete with CHIRP technology for clear detection of fish throughout the water column. Add an HDI or TotalScan transducer, and your display also offers StructureScan HD sidescan imaging for a picture-like view of fish-holding structure beneath and around your boat.Expand Your View with a Simrad Radar Solution The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings. (end of section)Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your display will suggest the shortest, safest route. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing). * Automatic routing features are unavailable in North America.Enjoy the most up-to-date charts on the water with Navionics SonarChart Live. Available exclusively with Navionics charts, this feature creates a depth-contour overlay using live sonar data from your display’s built-in sounder. The results are shown on your GO series display and updated in real-time as you fish or cruise.Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display.The optional SonicHub®2 module is the perfect companion to your GO series display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit.The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot. On the water, connect your Simrad GO series display to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free Link app.* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls.Specifications Display Resolution 800 x 480 Screen brightness 1200 nits Size and type 7" Diagonal High Visibility Color TFT LCD Backlight color White Viewing angles 80° top/bottom, 80° left/right of center Electrical Recommended fuse rating 3A Power consumption(max) 20w Power consumption nominal 12w Supply voltage 12 V DC (10 - 17 V DC) Connectivity Ethernet 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked) Radar compatibility Halo, Broadband, HD Radars Sonar Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic connector. Connection to any external sounder module is not supported. NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN Video In / Out None WiFi Internal Bluetooth Internal GPS Antenna Internal GPS time to first fix Cold start less than 90 seconds exposed to open sky, Satellite reacquisition 5 sec GPS correction WASS, MSAS, EGNOS, GLONASS, *Galileo ,*BeiDou. *Limited by network GPS position accuracy Horizontal Accuracy 3 m (9.8 ft) GP receiver channels 32 Channels GPS update rate 10 Hz AIS Receive AIS data over NMEA 2000 only Enviromental Operating temperature range -15°C to +55°C (5° F to 131° F) Storage temperature range -20°C to +60°C (4°F to 140°F) Waterproof rating IPX 6 and 7 General Mounting methods Bracket or Panel Dimensions W x H x D 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket) Unswer interface Touch screen, OP40 or OP50 controller via NMEA 2000 Weather SiriusXM via WM-3 (USA only), GRIB Autopilot Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). System requires STBY button or Controller with STBY button to commission the pilot Digital switching BEP C-Zone Autopilot steering modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) Autopilot manoeuvres & turn patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking Internal user data storage 90MB Waypoints, routes and tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. External storage 2 Micro SD slots, max. 32GB (format FAT32 each). >32 GB cards require cards to be formated to NTFS Multimedia Via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) Supported cartography Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) What's in the Box: GO7 XSR Power cable Mounting bracket with knobs Bezel Dash mount kit Suncover Documentation HDI Transom mount transducer C-Map Discover microSD

Read more less

Simrad SS75M 12 Degree Tilt Model: 000-13909-001 CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings. CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water. Provides extremely accurate data. The 12° tilt is ideal for boats with a 8° to 15° hull deadrise. The low profile housing minimizes drag with just 5mm extending outside of the hull. Easily connect to NSSevo3 The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings. Specifications Frequency Medium CHIRP (80-130kHz) Power rating 600 watts Speed sensor No Temperature sensor Yes Mounting style Stainless Steel Thru-hull Elements 1 Beamwidth @ -3db 24° to 16° Cable length 10 meter

Read more less

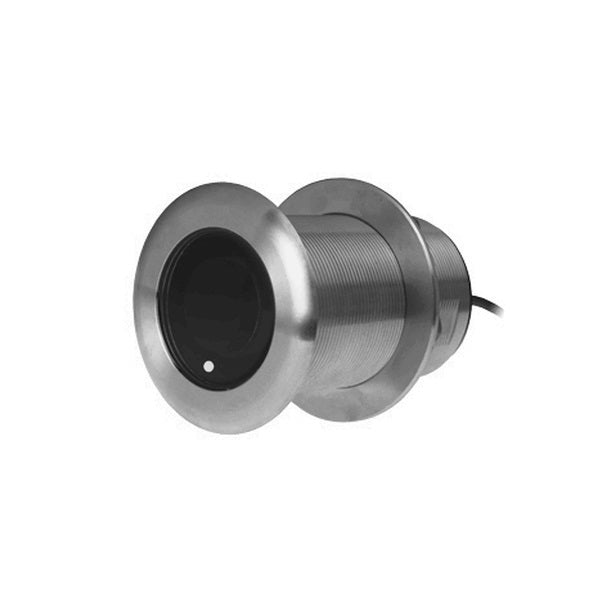

Simrad SS75M 20 Degree Tilt Model: 000-13910-001 CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings. CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water. Provides extremely accurate data. The 20° tilt is ideal for boats with a 16° to 24° hull deadrise. The low profile housing minimizes drag with just 5mm extending outside of the hull. Easily connect to NSSevo3 The SS75M is a bronze, thru-hull, tilted, medium-frequency (80-130kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings. Specifications Frequency Medium CHIRP (80-130kHz) Power rating 600 watts Speed sensor No Temperature sensor Yes Mounting style Stainless Thru-hull Elements 1 Beamwidth @ -3db 24° to 16° Cable length 10 meter

Read more less
