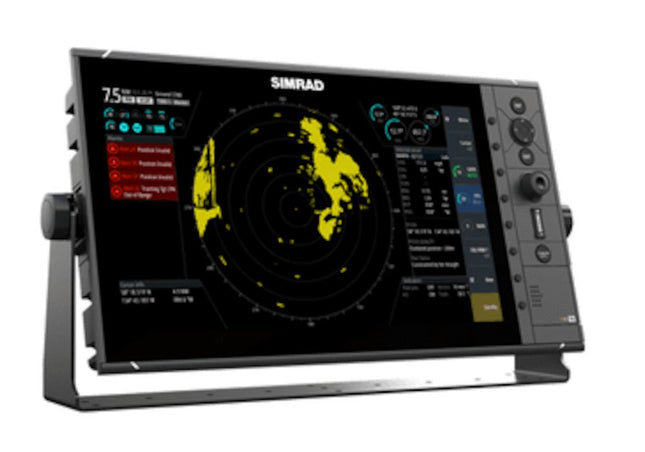

Simrad R3016 16" Radar Control UnitModel: 000-12188-001 16-inch HD widescreen display HDMI output for an optional duplicate display Anti-sea-clutter technology for optimal clarity in adverse conditions MARPA target tracking Keypad and rotary-dial interface with 8 direct-access menu keys Bracket and flush-mount installation options Make the most of your Simrad radar system by adding a dedicated screen and controls. Our professional-grade radar control units are easy to use, and designed to complement the design of our glass bridge displays and instruments. The R3016 features a high-definition, 16-inch widescreen display for a large and clear radar picture. Easily navigate crowded marinas and waterways, search for birds to find your next fishing spot, or keep a watchful eye on far-off weather cells. Choose from a clean flush-mount installation, or the convenience of bracket mounting to install almost anywhere.Take control of your radar system with the integrated keypad and rotary dial. Direct-access menu keys beside the display operate the corresponding on-screen menu options, for quick and intuitive access to key settings and features. Large, reliable buttons are suitable for use in any conditions, including the sort of wet weather and rough seas that make your radar system even more crucial to a safe journey home. Anti-sea clutter technology helps to deliver clarity in those adverse conditions, giving you the best possible view.The R3016 is compatible with a wide range of Simrad radar solutions. Ethernet connectivity offers easy installation, and simple networking of multiple control units and radar systems. The R3016 also provides four NMEA 0183® ports and NMEA 2000® connectivity for compatible devices such as heading and speed sensors, AIS transceivers, and GPS receivers. Connect a Simrad marine monitor or other compatible display to the R3016’s HDMI output to create a secondary radar display, mirroring the built-in screen. Add a Simrad O2000 wired remote to make that second screen interactive, an ideal solution for dual-helm vessels.Specifications Display Size 16-inch widescreen Screen Brightness 300 cd/m2 Networking Capability 4x NMEA0183, 1x NMEA2000, 1x Ethernet Video Integration 1x HDMI output (Supported resolutions: 1366x768) Display Resolution [pixels & pixels] 1366 x 768 Display Type 16-inch LED-backlit Colour TFT LCD Input Voltage 12-24 V DC Input Draw 20 Watts Dimensions 17.93" W x 2.4" D x 10.24" H What's in the Box: R3016 Display Power cable Bezel Edge Assembly

Read more less

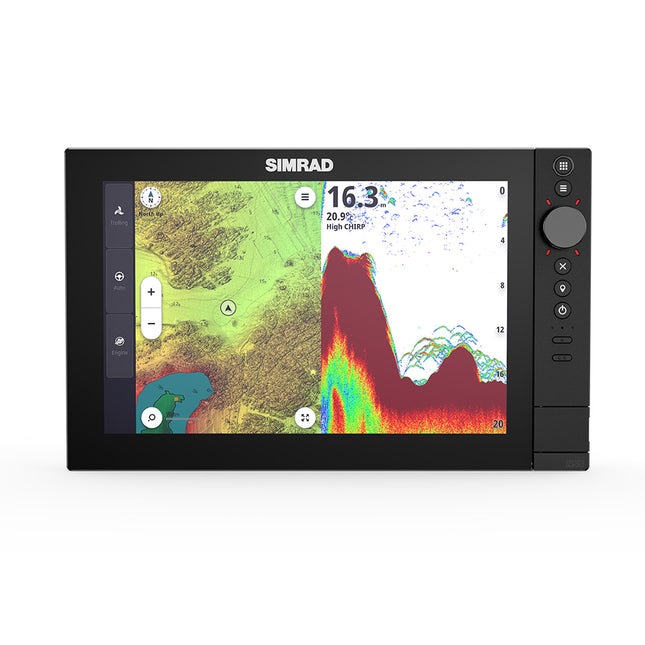

NSS4-12 12" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power ButtonPower your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 40 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Weather: SiriusXM via WM4 module (USA only) Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 2.8 kg (6.17 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 12" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 22"L WT: 13.3 lbs UPC: 9420064135424

Read more less

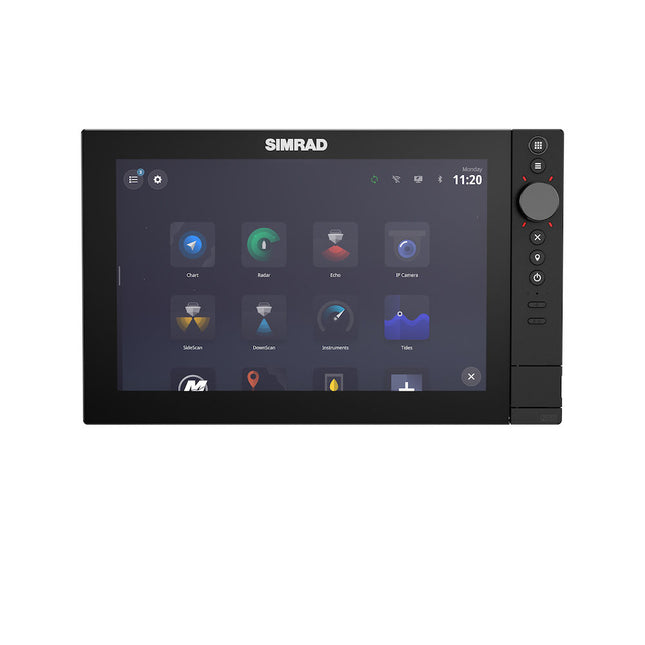

Simrad NSS4-12 12in MFD No SonarModel: 000-16276-001 Trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8 core processor Redesigned operating system Support for various 1kW CHIRP echosounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more Support for Mercury®, CZone®, SiriusXM®, and more 2-year limited warranty NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.Experience the power of a lightning fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing and not on the screen.NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structure in stunning detail making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more.Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.Specifications Autopilot Manouevres / Turn Patterns U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183 No NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity No Video Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color White Resolution 1280 x 800 Screen Brightness Greater than 1200 nits Size and Type 12 inch SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Viewing Angles 80° top/bottom, 80° left/right Electrical Power Consumption, max. 40 W Recommended Fuse Rating 5 A Supply Voltage 12/24 V DC (10 - 31.2 V DC min - max) Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Environment Operating Temperature Range -15°C to 55°C (5°F to 131°F) Shock and Vibration 100,000 cycles of 20 G Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPX6 and IPX7 GPS Correction 10 Hz high speed update (internal) GPS Receiver Channels 32 Channels Position Accuracy Horizontal Accuracy 3 m (9.8 ft) Update rate 10Hz MFD Receive AIS data over NMEA 2000 Autopilot AIS NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included World wide basemap (not for navigation). Detailed chart card on the network required Cartography supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Digital Switching Czone / DDS External Storage 2x (microSD®, SDHC®), 1 x USB port GPS 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS) Radar (inc. compatibility) Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility) No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports Weather Sirius XM via WM4 module (USA only) Waypoints, Routes, Tracks 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial 65 cm (2.1 ft) Physical Dimensions (W x H x D) Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34 in x 8.20 in x 3.34 in) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48 in x 9.17 in x 3.34 in) Mounting Type Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight 2.8 kg (6.17 lb)

Read more less

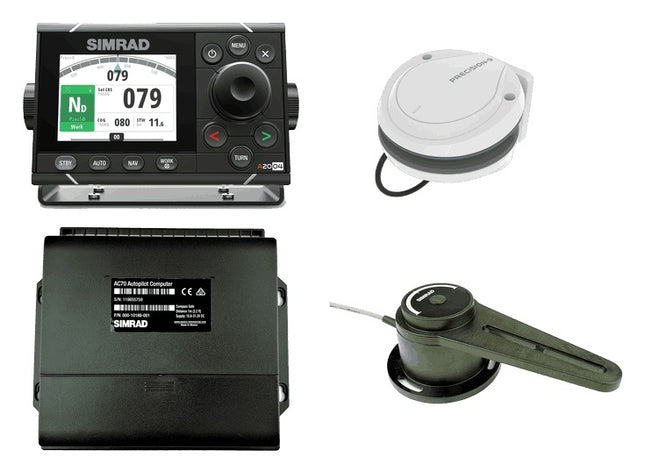

Simrad A2004 Autpilot Compass PackModel: 000-13900-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.What's in the Box: A2004 Control AC70 Computer RF300 Feedback Precision 9 Compass,Simrad A2004 Autpilot Compass PackModel: 000-13900-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers. Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications. To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display. The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels. What's in the Box: A2004 Control AC70 Computer RF300 Feedback Precision 9 Compass

Read more less

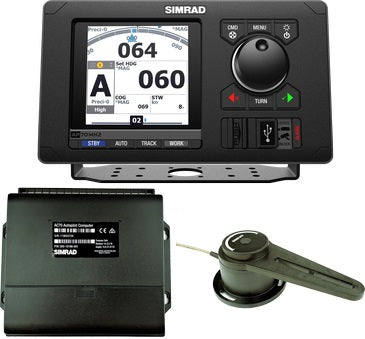

Simrad AP70 MK2 Basic Pack AP70 MK2, AC70 and RF300 Requires Drive UnitModel: 000-15039-001 Wheelmarked for use on board SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable work modes and low/high speed modes No Drift steering holds course against wind and tide Navigation steering, route following Command transfer and multiple control stations support The new AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels.Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised software interface.The AP70 Mk2 will accommodate installations with up to six drives. Previously only available with the AP80, this premium feature is now a standard in the AP70 Mk2.Engineered for responsiveness, robustness and ease of use, the AP70Mk2 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, several custom-configurable work modes and multiple rudder/thruster integration.The AP70 Mk2 builds on, and continues the legacy of the SIMRAD Pro autopilot product portfolio. Its performance, robustness and quality are proven and recognised with the wheelmark symbol, making it suitable for all vessels ranging from small work- boats to large tankers.Parameters ranges and tuning options to support vessel dynamics. Adjustable for all weather conditions, hull types, work situations. Suitable for retro-fit on old ships as well as modern new-builds.Water jet, Azi-pods, Voith-Schneider, Rudder, outboard. Control signals to control, hydraulic pumps, solenoids, analog current/voltage, control/handshake signals.Dual rudders, fore and aft thrusters supports large and complex installations and redundancy.Simrad heavy-duty rudder feedbacks are supported.Autopilot settings can be tuned for optimal performance in separate low-speed, high-speed, and Work modes. The user-configurable Work mode allows the autopilot system to be configured for optimal response in a specific situation, such as a fully laden vessel, configurable thruster usage.No Drift mode integrates GPS navigation with auto-steering, using position data to counteract the effects of wind and tide. This allows the AP70 Mk2 to maintain a straight track over ground on the current course, without the need to manually set a waypoint or route.Navigation steering controls the ship on a pre-planned route from a Simrad MFD, Simrad ECDIS or third party MFD and ECDIS.Command transfer is a mechanism useful in multi-controller installations. It enables the officer on watch to allow, deny the transfer of autopilot control to control devices such as a secondary AP70 Mk2 or a remote controller on a bridge wing station, above deck, or aft bridge depending on the work scenario. The AP70 Mk2 can also be used in an open configuration, where control flow is unrestricted.What's in the Box: AP70 Mk2 Autopilot Controller AC70 Autopilot Computer RF300 Rudder Feedback - Frequency

Read more less

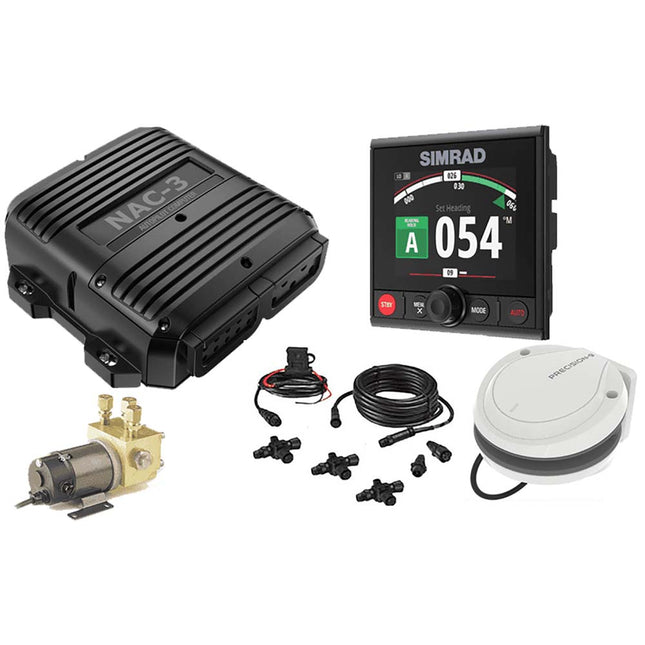

AP44 VRF High Capacity Autopilot Pack - AP44, NAC-3, Precision 9 & Pump-3 MK2The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full-color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.Features: Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto-tuning and calibration Simrad Continuum steering technology Intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile 'Glass Helm' design Low power consumption Certified NMEA 2000® connectivityIntuitive Autopilot Control The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dialAutomated Turn PatternsYour Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.Simrad Continuum SteeringEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in Norway.Easy Setup with Auto-Tuning & CalibrationAutopilot installation and commissioning don't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.NAC-3The NAC-3 Autopilot Computer is the brain behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.Pump-3 MK2The PUMP-3 MK2 type 2 is a reversible hydraulic steering pump for boats up to 50ft.Unique Selling Points: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class Simple installation with a single NMEA 2000® connection Specifications: Steering Type: Hydraulic Box Dimensions: 10"H x 11"W x 17"L WT: 5 lbs UPC: 9420064128228

Read more less

Simrad AP44 VRF high capacity pack MKII Pump-3Model: 000-13562-002 Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto tuning and calibration Simrad Continuum steering technology All new intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile ‘Glass Helm’ design Low power consumption Certified NMEA 2000® connectivity The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full colour display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chartplotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 meters (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.What's in the Box: AP44 Autopilot Controller NAC-3 Autopilot Computer Precision-9 Compass N2K Power Cable Kit N2K Terminator Kit PUMP-3 - 12V 1.6L

Read more less

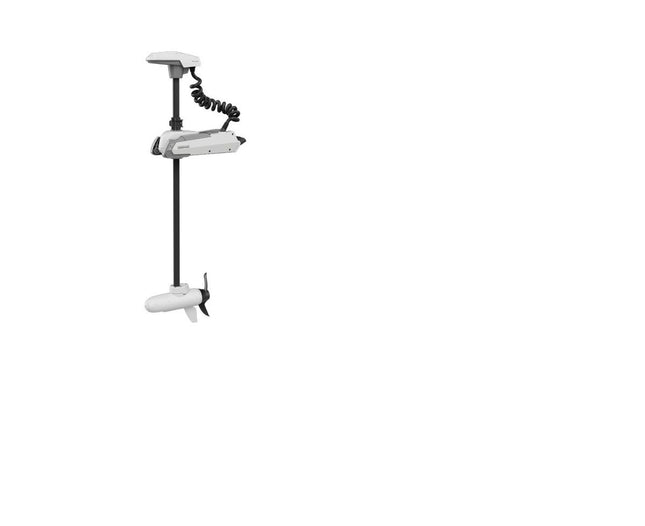

Simrad Recon 60in Trolling Motor SaltwaterModel: 000-16158-001 Lightweight FreeSteer™ joystick remote with color LCD display Best-in-class power Precision GPS positioning Near-silent brushless 24V/36V motor Multiple accessory mount points NMEA 2000® connectivity Lifetime shaft warranty 3-year motor warranty Control like nothing else The FreeSteer™ joytick remote is truly unique. 1.5-degree steering adjustments let you travel with precision in almost any direction. Get near-instant response with best-in-class steering speeds. And move anchor positions freely by executing diagonal jogs in 8 directions.Move anywhere onboard Designed to be carried anywhere on board, FreeSteer™ is small and lightweight. The remote even features an LCD color display and configurable buttons so you don’t have to rely on your chartplotter — instead making adjustments from anywhere onboard.Quiet operation 24V/36V brushless motors provide all the power you need with none of the noise. RECON™ moves your vessel through the water quietly, getting right on top of your target without spooking them.Streamlined installation RECON™ is designed with simplicity in mind. The mounts feature industry-standard dimensions, meaning you can upgrade to RECON™ from your existing trolling motor without having to drill any new holes. A simple riveted latch system means it’s easy to deploy and stow once onboard.Low maintenance RECON’s tough design means you can fish anywhere, but it also means your trolling motor will last longer, with less maintenance. Our proprietary corrosion-resistant coating is built for harsh environments and heavy salt. Even RECON’s all-in-one cable boasts a UV-resistant coating.

Read more less

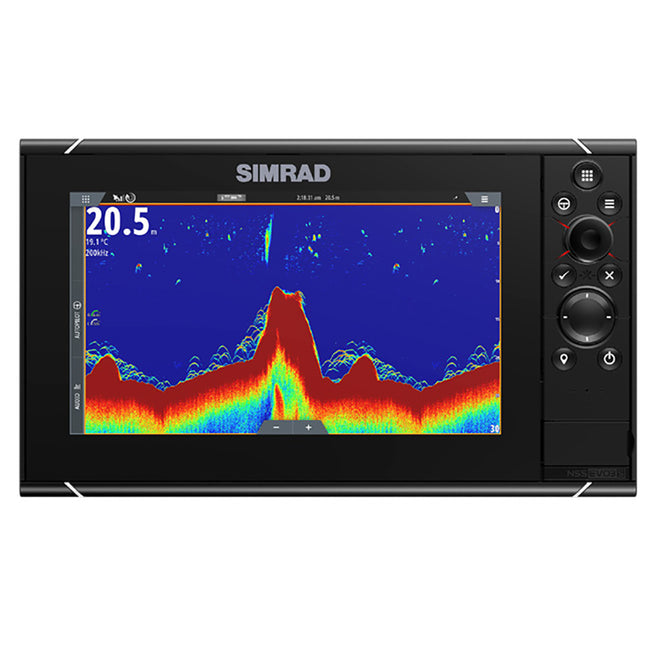

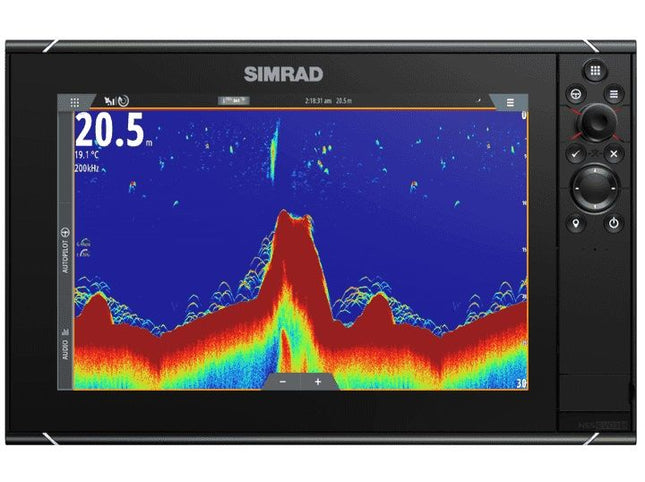

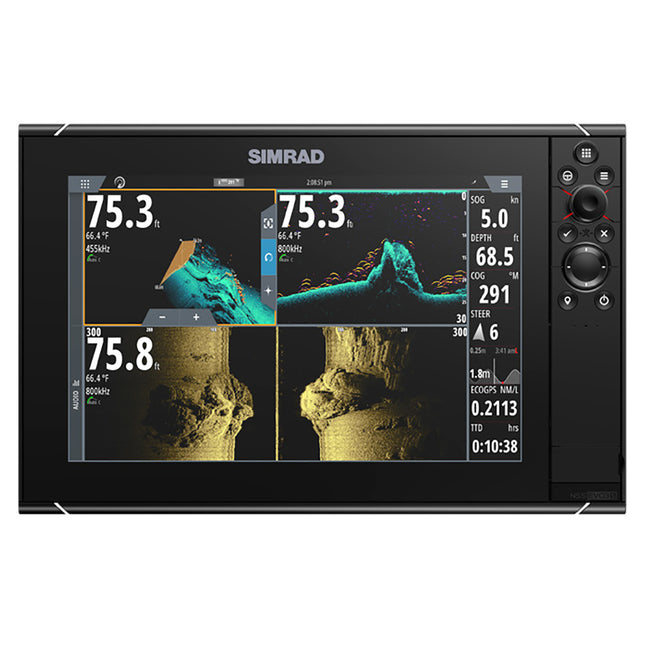

Simrad NSS evo3S 12in DisplayModel: 000-15403-002 High Resolution, High Bright, SolarMax IPS Displays Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images Take another step forward with Simrad’s premium network modules for the ultimate offshore performance Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control Low profile glass dash styling Built in Wi-Fi connectivity Next Generation Processor SolarMAX IPS Display Technology Multi-touch screen and keypad hybrid control Built-in Advanced Echosounder NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improvedSpecifications Physical Dimensions 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) Weight 3.10kg/6.83lb Environmental Operating temperature range -15°C to +55°C (5° F to 131° F) Environment Shock Vibration 100,000 cycles of 20G Storage temperature range -20°C to +60°C (4°F to 140°F) Water resitance IPX6 and 7 Power Supply voltage 10 - 31.2 V DC Fuse rating 5A Power consumption (Max) 28W Display Display backlight color White Display resolution 800 x 1280 Display screen brightness 1200 nits Display size and type High Visibility SolarMax HD® IPS 7" optically bonded TFT Display viewing angles 80° top/bottom, 80° left/right Connectivity Ethernet 2 x 5 pin yellow connector x 1 Mbit Bluetooth Internal NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 connectivity 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) Video connectivity 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). WiFi connectivity Internal Sonar Sonar frequencies 40-250kHz 455-800kHz Sonar max depth 3000’+ (tested with B175L) Sonar output power 1kW RMS Compliance Compliance GPS GPS Internal GPS update rate 10 Hz GPS channels 34 GPS correction WASS, EGNOS, MSAS, GLONASS GPS position accuracy Horizontal Accuracy 3 m (9.8 ft) GPS time to first fix Cold start 50 sec, Satellite Reacquisition 5 sec What's in the Box: NSS evo3S 12" Display NSS12 EVO3 & ZEUS3 - 12 DASH MOUNT KIT NSS12 EVO3/3S & ZEUS / S-12 MOUNTING BRACKET NSS12 EVO3 & ZEUS3 — 12 EDGE BEZELS Power Cable

Read more less

NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video Out PortImproved Charting experience with the iMX8 processorWith a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.Enhanced Sonar with superior on-water performance 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.SolarMAX™ IPS display for high-definition views Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.UI improvements Dark-themed wallpaper for less light pollution from a dash of multiple screens. The Audio side bar can now expand into a full page view. The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu. The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page Wireless connectivity for smartphones and tablets Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.Radar Options HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.FLIR IP Camera SupportDay and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™. WM-4 ReceiverGet up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.Fast & Simple Networking & ConnectivityIndustry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more. Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot. What's In The Box? Display Unit Bezel Trim Documentation pack Power cable kit U-bracket kit Panel mounting kit Connections: Ethernet - 2x Ethernet network Power - power, power control, and external alarm Video- composite video and NMEA0183 NMEA 2000 - NMEA 2000 data Sonar CH1 Sonar CH2 Specifications: Screen Size: 12" Box Dimensions: 9"H x 14"W x 18"L WT: 12 lbs UPC: 9420064130177

Read more less

Simrad Recon 54in Trolling Motor SaltwaterModel: 000-16157-001 Lightweight FreeSteer™ joystick remote with color LCD display Best-in-class power Precision GPS positioning Near-silent brushless 24V/36V motor Multiple accessory mount points NMEA 2000® connectivity Lifetime shaft warranty 3-year motor warranty Control like nothing else The FreeSteer™ joytick remote is truly unique. 1.5-degree steering adjustments let you travel with precision in almost any direction. Get near-instant response with best-in-class steering speeds. And move anchor positions freely by executing diagonal jogs in 8 directions.Move anywhere onboard Designed to be carried anywhere on board, FreeSteer™ is small and lightweight. The remote even features an LCD color display and configurable buttons so you don’t have to rely on your chartplotter — instead making adjustments from anywhere onboard.Quiet operation 24V/36V brushless motors provide all the power you need with none of the noise. RECON™ moves your vessel through the water quietly, getting right on top of your target without spooking them.Streamlined installation RECON™ is designed with simplicity in mind. The mounts feature industry-standard dimensions, meaning you can upgrade to RECON™ from your existing trolling motor without having to drill any new holes. A simple riveted latch system means it’s easy to deploy and stow once onboard.Low maintenance RECON’s tough design means you can fish anywhere, but it also means your trolling motor will last longer, with less maintenance. Our proprietary corrosion-resistant coating is built for harsh environments and heavy salt. Even RECON’s all-in-one cable boasts a UV-resistant coating.,Simrad Recon 54in Trolling Motor SaltwaterModel: 000-16157-001 Lightweight FreeSteer™ joystick remote with color LCD display Best-in-class power Precision GPS positioning Near-silent brushless 24V/36V motor Multiple accessory mount points NMEA 2000® connectivity Lifetime shaft warranty 3-year motor warranty Control like nothing else The FreeSteer™ joytick remote is truly unique. 1.5-degree steering adjustments let you travel with precision in almost any direction. Get near-instant response with best-in-class steering speeds. And move anchor positions freely by executing diagonal jogs in 8 directions.Move anywhere onboard Designed to be carried anywhere on board, FreeSteer™ is small and lightweight. The remote even features an LCD color display and configurable buttons so you don’t have to rely on your chartplotter — instead making adjustments from anywhere onboard.Quiet operation 24V/36V brushless motors provide all the power you need with none of the noise. RECON™ moves your vessel through the water quietly, getting right on top of your target without spooking them.Streamlined installation RECON™ is designed with simplicity in mind. The mounts feature industry-standard dimensions, meaning you can upgrade to RECON™ from your existing trolling motor without having to drill any new holes. A simple riveted latch system means it’s easy to deploy and stow once onboard.Low maintenance RECON’s tough design means you can fish anywhere, but it also means your trolling motor will last longer, with less maintenance. Our proprietary corrosion-resistant coating is built for harsh environments and heavy salt. Even RECON’s all-in-one cable boasts a UV-resistant coating.

Read more less

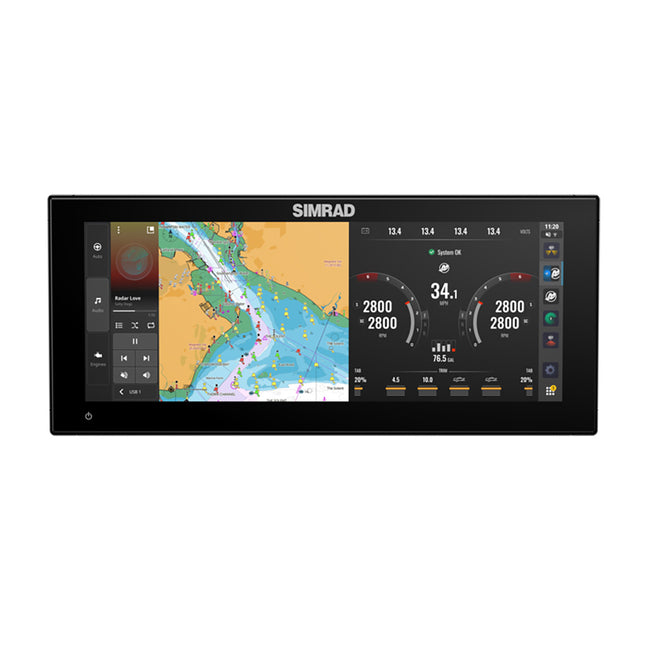

Simrad NSX 3015UW Ultra Wide 15" MFDModel: 000-16213-001 NSX ULTRAWIDE delivers all the benefits of multiple displays, without the hassle of multiple installations Fewer cables One cutout Less setup Condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display. The panoramic display compliments the aesthetics of your boat designs, letting you create eye-catching, low-profile dashboards straight out of the luxury auto world. Information that is more consumable More screen, less space Simplified installation Unique screen format — new to marine Better viewability Enables automotive-style dash designs The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.Specifications Display Size and Type 15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1920 x 720 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1000 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 25 W (1811 mA at 13.8 V) Protection Reverse polarity and over voltage (Max 18V) Recommended Fuse Rating 3A Physical Dimensions No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48") -With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80") MountingType Rear mount (bracket supplied), Bracket mount (bracket optional) Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100. Ethernet 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars Weather Not in first release USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Charts Supported C-MAP Discover X, C-MAP Reveal X, third party charts AIS Receive AIS data over NMEA 2000 Digital Switching C-Zone, Simrad COMMAND DDS Warranty Warranty Period 2 Years What's in the Box: NSX3015UW Display ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable DISCOVER X - NORTH AMERICA 4-Pin Power Cable Fuse Kit NSX 3015UW Suncover

Read more less

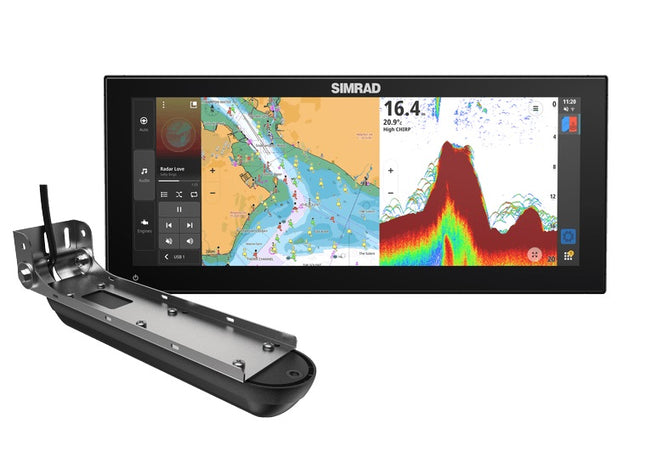

NSX 3015UW Combo with Active Imaging™ 3-in-1 TransducerExpand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.Get a Fresh PerspectiveNSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet.Simpler Boating with Simrad's Latest Operating SystemNSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.Superior Engine ControlConnectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.Bow-To-Stern IntegrationControl with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.A Fishing SuperpowerAnglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.*Requires additional sonar module and a minimum 1.7 software update.FeaturesSimrad® Suite Integration:  See near and far with full support for 3G, 4G, and HALO® radars Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots Simrad® App integration for waypoint management and offline trip planning Third-Party Integration: Best-in-class Mercury® Integration, inc. SmartCraft® Connect Integration with leading propulsion brands such as Honda and Suzuki CZone® digital switching OmniSense Dometic Lumishore lighting Multiple audio partners IP cameras HTML5 app compatible Much, much more... Charts & Navigation:  Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts X-Chart Manager 3x faster autorouting* *vs SIMRAD® GO Fishfinding & Sonar Capabilities:  Sonar sharing between NSX® devices Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules* *Requires minimum 1.7 software update   Network Connectivity:  Wireless Ethernet USB NMEA 2000® Additional Features:  The latest Simrad® operating system, for game-changing ease of use Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles Intuitive setup wizard Bracket mount sold separately Specifications:Display: Backlight Color: White Display Resolution: 1920 x 720 px Display Size: 15 inches Screen Brightness: >1000 nits Viewing Angles: 85° (top, bottom, left, and right) Physical: Compass Safe: 50 cm (1.7 ft) Dimensions (W x H x D): No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48"). With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80") Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional) Weight: 1.9 kg (1.2 lbs) Electrical: Power Consumption Max: 25 W (1811 mA at 13.8 V) Recommended Fuse Rating: 3A Supply Voltage: 12 V DC (10 - 17 V DC min-max) Environment: Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Shock Vibration: 100,000 cycles of 20 G Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof Rating: IPx6 and IPx7 Connectivity: Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 1 port (5-pin connector) Connectivity Wi-Fi: IEEE 802.11b/g/n NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No SD Card Storage: 1 MicroSD slot, 1 x USB Video: IP Camera support MFD: Cartography Included: Discover X chart card of North America Digital Switching: Czone / Simrad DDS GPS: Internal, 10Hz Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. Weather: No GPS: GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS Other: Interface: Multi-touch screen Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian Warranty Period: 2 Years Specifications: Cartography Brand: C-Map Screen Size: 15" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 7"H x 14"W x 25"L WT: 13.5 lbs UPC: 9420064132393 Brochure (pdf)

Read more less

HALO24 Radar Dome with Doppler TechnologyHALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.See Near and Far with One Compact Dome Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.The Ultimate View for Collision AvoidanceHALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundingsVelocityTrack™ Doppler Technology Built-InVelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.Key Features: 48 nm range from a compact 24" dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both near and far Ultra-fast 60 RPM operation at ranges up to 2nm VelocityTrack™ Doppler technology for collision avoidance Easy operation with harbour, offshore, weather, and bird modes MARPA target tracking (up to 10 targets, 20 in dual range). Ready instantly from standby Lightweight, low profile dome design, with integrated LED lights 10m Radar Cable Specifications:Environmental Operating Temperature: -25° to +55°C (-13° to +130°F) Relative humidity: +35° C (95° F), 95% RH Waterproof: IPX6 Max relative wind velocity: 51 m/sec (100 Knots) Complience: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002 Power & Dimensions Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems) Reverse polarity protection: Yes Minimum startup voltage: 10.75 V DC Transmitter source (pre-heating time): No magnetron – Instant On Physical Outside dimensions: Ø Diameter 610 mm (24”), Height 225 mm (8.9”) Scanner weight (no cable): 6.75kg (14.9 lbs) Radar and Antenna Parameters Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km) Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent) Transmitter frequency: X-band - 9.4 to 9.5 Ghz Transmitter source (warm-up time): No Magnetron – all solid state. Instant On™ Plane of polarization: Horizontal Polarization Transmitter peak power output: 25W Minimum range: 6M (19.7') Sweep repetition frequency: 700-2400 Hz (mode dependent) Pulse length: 0.04 - 64 usec Sweep bandwidth: 48 MHz max Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width) Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal) Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal) Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°) Noise figure: Less than 5 dB nominal Communications/Cabling Protocol: Ethernet 100 Base T Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs Specifications: Array Size (Inches): 24" Range - Max (Miles): 48nm Box Dimensions: 11"H x 27"W x 30"L WT: 27.5 lbs UPC: 9420024173770

Read more less

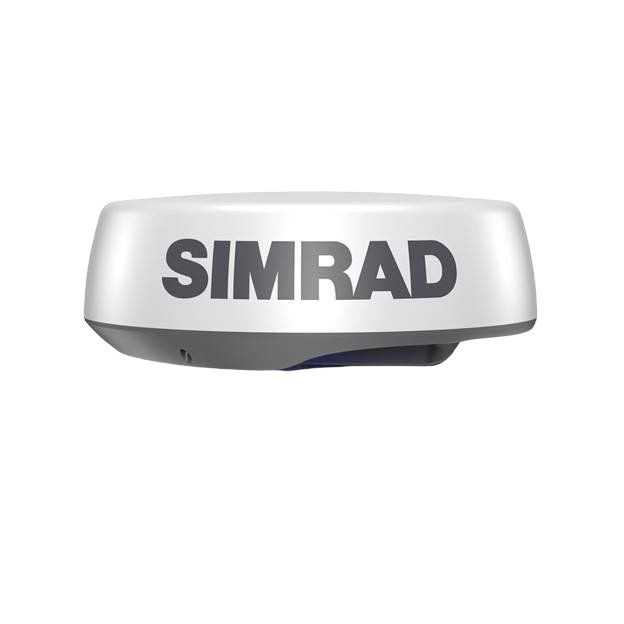

Simrad Halo 24 Radar DomeModel: 00014535001 48 nm range from a compact 24-inch dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both near and far Ultra-fast 60 RPM operation at ranges up to 2nm VelocityTrack™ Doppler technology for collision avoidance Easy operation with harbour, offshore, weather, and bird modes MARPA target tracking (up to 10 targets, 20 in dual range). Ready instantly from standby All new lightweight, low profile dome design, with integrated LED lights HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antennaHALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundingsVelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.Specifications Operating Temperature -25° to +55°C (-13° to +130°F) Relative humidity +35° C (95° F), 95% RH Waterproof IPX6 Max relative wind velocity 51 m/sec (100 Knots) Complience CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002 Power consumption (with 10m cable) Operating: 14.5 to 27W at 13.8 V Standby 3.9 W (Typ.) at 13.8 V DC ~ 170 mA DC input (at end of radar cable) 9 V to 31.2 V DC (12/24 V systems) Reverse polarity protection Yes Minimum startup voltage 10.75 V DC Transmitter source (pre-heating time) No magnetron — Instant On Scanner weight (no cable) 6.75kg (14.9 lbs) Radar ranges 100 m (328 ft) to 48nm with 18 range settings, (nm/sm/km) Rotation (mode dependent) 20 - 60 rpm (mode and MFD dependent) Transmitter frequency X-band - 9.4 to 9.5 Ghz Transmitter source (warm-up time) No Magnetron — all solid state. Instant On™ Plane of polarization Horizontal Polarization Transmitter peak power output 25W Minimum range 6 m (19.7 ft) Sweep repetition frequency 700-2400 Hz (mode dependent) Pulse length 0.04 - 64 usec Sweep bandwidth 48 MHz max Horizontal beam width (Tx and Rx antenna) 3.9° nominal (-3 dB width) Target Seperation Control OFF: 3.9°+/-10% (-3 dB width nominal), LOW: ~3.4°+/-10% (-3 dB width nominal), MED: ~2.5°+/-10% (-3 dB width nominal), HIGH: ~2.0°+/-10% (-3 dB width nominal) Vertical beam width (Tx and Rx antenna) 22° (-3B width nominal) Side lobe level (Tx and Rx antenna) Below -18 dB (within ±10°);Below -24 dB (outside ±10°) Noise figure Less than 5 dB nominal Protocol Ethernet 100 Base T Maximum inter connecting cable length 30 m (98.5 ft) — available as option, use NEP-2 for longer cable runs Dimensions Diameter 610 mm (24"), Height 225 mm (8.9")

Read more less

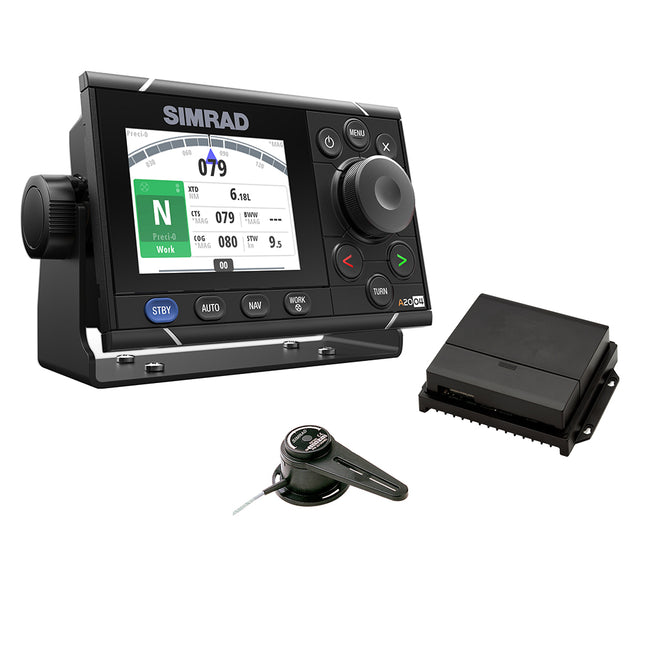

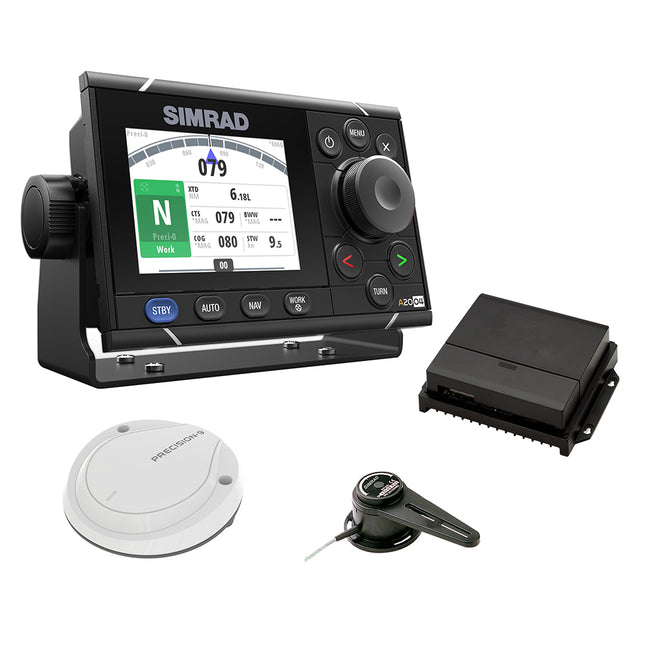

A2004 Autopilot Pack - A2004 Display, AC70 Course Computer, RF300 FeedbackThe A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.Features: Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1" color display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity Dimensions 6.968 wide by 4.527 high Dimensions with Bracket 8.063 wide by 4.901 high Proven Simrad InterfaceThe A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Continuum Steering TechnologyEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.Optically Bonded 4.1-inch Color DisplayTo ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering – eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.Thruster Integration & Rudder Feedback SupportThe A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels. Specifications: Steering Type: Hydraulic Box Dimensions: 11"H x 13"W x 17"L WT: 10.15 lbs UPC: 9420024162552

Read more less

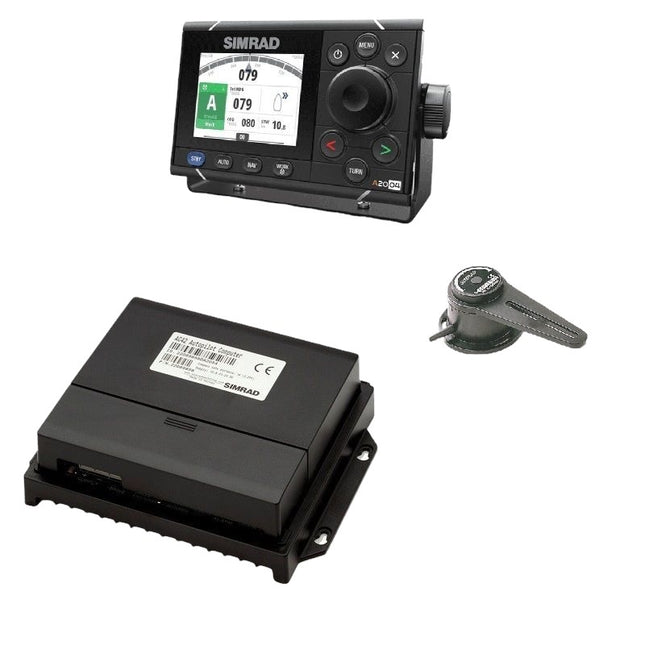

Simrad A2004 Autpilot PackModel: 000-13899-001 Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering Continuum steering technology Optically bonded 4.1-inch colour display with 170° viewing angle Thruster integration & heavy-duty rudder feedback support Configurable work mode and low/high speed modes Automated turn patterns for fuel-efficient, hands-free manoeuvres No Drift steering holds course against wind and tide Flush or bracket mounting options Certified NMEA 2000® connectivity The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering — eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.What's in the Box: A2004 Control AC70 Computer RF300 Feedback

Read more less

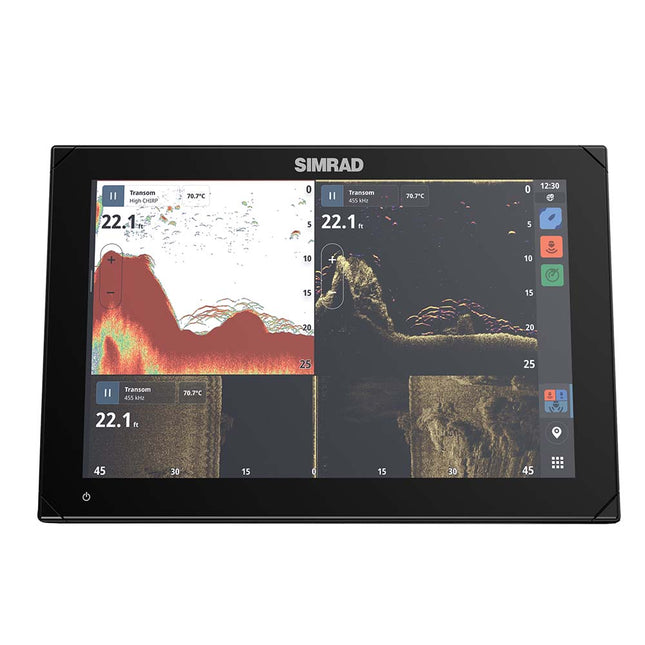

NSX™ 3012 12" Chartplotter & Fishfinder with Active Imaging™ 3-in-1 TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™.See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your Fingertips.Expand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to Manage.Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Active Imaging™ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imaging™, plus support for 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Included Transducer: 000-14489-001 Screen Size: 12" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 7"H x 16"W x 18"L WT: 13.25 lbs UPC: 9420064111923 Brochure (pdf)

Read more less

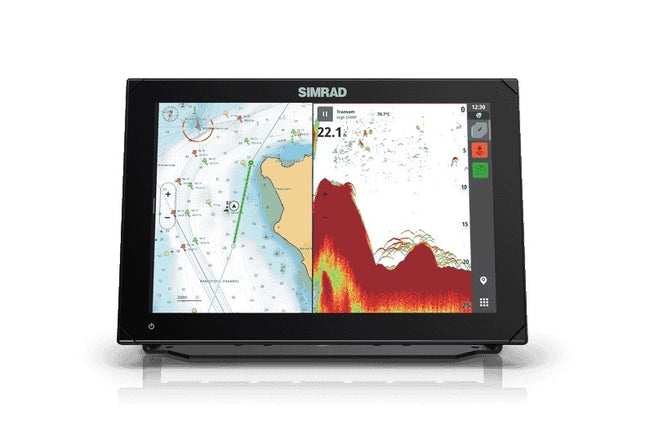

Simrad NSX 3012 - Smart Chartplotter / fishfinder. Active Imaging™ 3-in-1 transducer. C-MAP® DISCOVER™ X chart includedModel: 000-15367-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1280 x 800 Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 29.7 W (2150 mA at 13.8 V) Recommended Fuse Rating 3A Physical Dimensions W x H x D With bracket: W: 319.5 mm (12.58") x H: 215.1 mm (8.46") x D: 86.0 mm (3.38") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX 3012 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Gimbal mounting bracket with knobs Suncover NSX 3012 Dash mount kit 4-pin Power Cable Fuse Kit NSX Corner bezel clips for NSX Active Imaging™ 3-in-1 transducer

Read more less

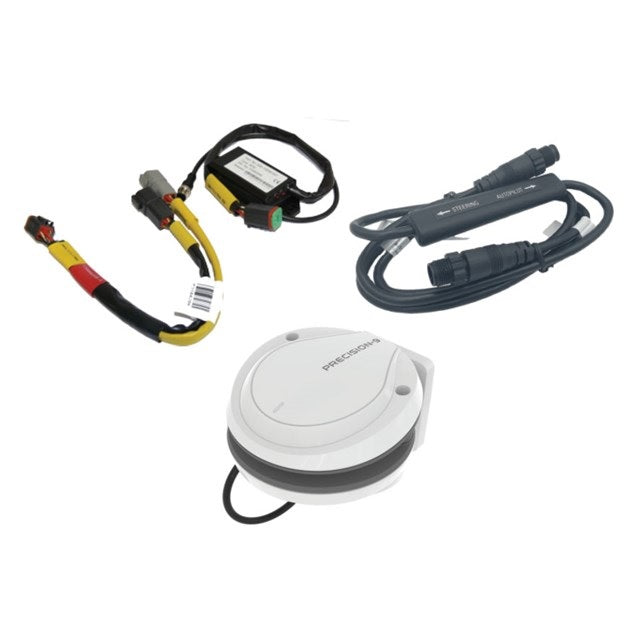

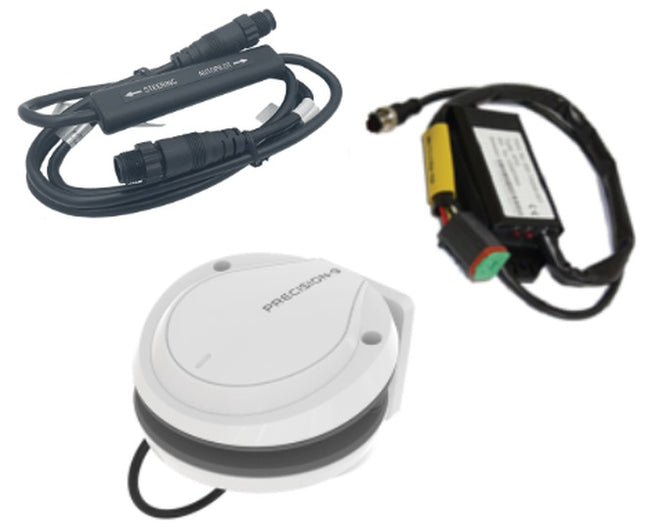

Simrad Steer-by-wire Autopilot Pack for Yamaha Helm MasterModel: 000-15805-001 Helm Master is the Electronic steering and control system for Yamaha outboards. Outboards can be controlled independently allowing the boat to rotate on the spot or dock sideway Easy installation Easy setup and commissioning Dedicated AP display and integration with Simrad MFD* Continuum steering — cutting edge algorithm based on years of experience SteadySteer feature included Note: Simrad MFDs need software version 20.2 or newer to enable NAC-D support. What's in the Box: NAC-D Autopilot Computer TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators Autopilot Gateway for Yamaha Precision-9 Compass N2K-PWR-RD - NMEA 2000® power cable and T-Connector N2K-T-RD Micro-C T-Connector

Read more less

NSS4-10 10" Combo with U.S. C-MAPRedesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers. SLEEKER - Next-gen design, inside & outNSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.FASTER - Lightning-quick user experienceAt the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.SMARTER - Advanced anglingA dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.Integrated for the futureOur latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Built-in dual channel 1kW CHIRP echosounder Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... Specifications: Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Power Consumption, max.: 28 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof rating: IPX6 and IPX7 AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Discover X chart card of North America Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100 Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″)With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 1.8 kg (3.97 lb) Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Screen Size: 10" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 14"W x 22"L WT: 10.65 lbs UPC: 9420064129928

Read more less

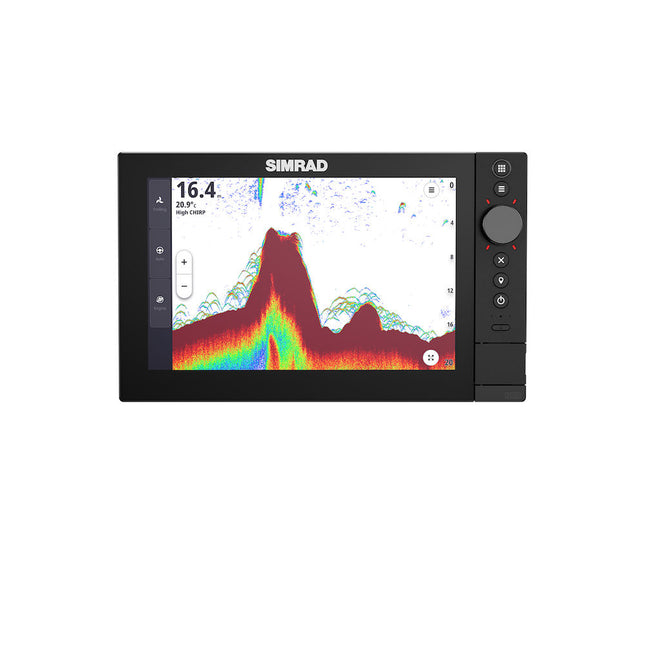

Simrad NSS4-10 10in MFD With Sonar US C-MAP Discover XModel: 000-16012-001 Trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Built-in dual channel 1kW CHIRP echosounder Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more Support for Mercury®, CZone®, SiriusXM®, and more... NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.Experience the power of a lightning fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing — and not on the screen.NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly. NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structure in stunning detail — making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and moreMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.Specifications Autopilot Manouevres / Turn Patterns U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183 No NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity No Video Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color White Resolution 1280 x 800 Screen Brightness >1200 nits Size and Type 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Viewing Angles 80° top/bottom, 80° left/right Electrical Power Consumption, max. 28 W Recommended Fuse Rating 5 A Supply Voltage 12/24 V DC (10 - 31.2 V DC min - max) Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Environment Operating Temperature Range -15°C to 55°C (5°F to 131°F) Shock and Vibration 100,000 cycles of 20 G Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPX6 and IPX7 GPS Correction 10 Hz high speed update (internal) GPS Receiver Channels 32 Channels Position Accuracy Horizontal Accuracy 3 m (9.8 ft) Update rate 10Hz MFD AIS Receive AIS data over NMEA 2000 Autopilot NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included Discover X chart card of North America Cartography supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Digital Switching Czone / DDS External Storage 2x (microSD®, SDHC®) GPS 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS) Weather Sirius XM via WM4 module (USA only) Waypoints, Routes, Tracks 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial 35 cm (1.15 ft) Physical Dimensions (W x H x D) Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33 in x 6.93 in x 3.13 in) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43 in x 7.73 in x 3.13 in ) Mounting Type Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight 1.8 kg (3.97 lb)

Read more less

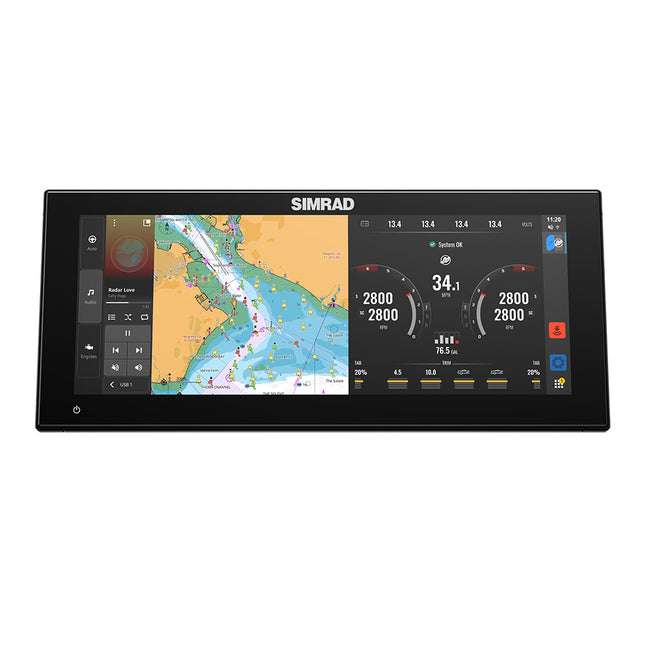

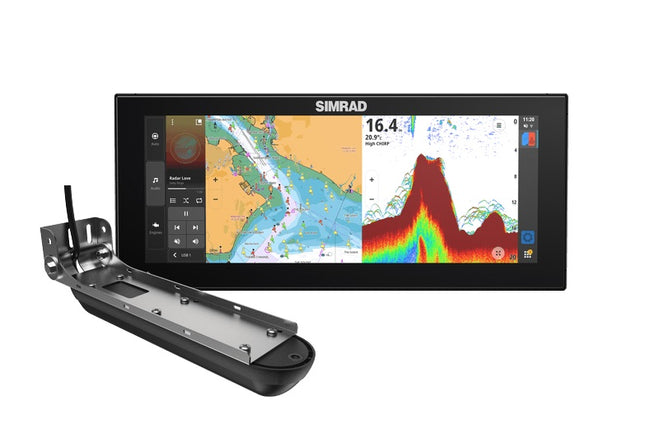

Simrad NSX 3012UW Ultra Wide 12" MFDModel: 000-16216-001 NSX ULTRAWIDE delivers all the benefits of multiple displays, without the hassle of multiple installations Fewer cables One cutout Less setup Condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display. The panoramic display compliments the aesthetics of your boat designs, letting you create eye-catching, low-profile dashboards straight out of the luxury auto world. Information that is more consumable More screen, less space Simplified installation Unique screen format — new to marine Better viewability Enables automotive-style dash designs The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.Specifications Display Size and Type 12" SolarMax IPS Ultrawide Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1920 x 720 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1000 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 19.8 W (1434 mA at 13.8 V) Protection Reverse polarity and over voltage (Max 18V) Recommended Fuse Rating 3A Physical Dimensions No Bracket, no suncover W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48") -With gimbal bracket H: 157.9 mm (6.22") D:96.5 mm (3.80")Weight MountingType Rear mount (bracket supplied), Bracket mount (bracket optional) Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100. Ethernet 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars Weather Not in first release USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Charts Supported C-MAP Discover X, C-MAP Reveal X, third party charts AIS Receive AIS data over NMEA 2000 Digital Switching C-Zone, Simrad COMMAND DDS Warranty Warranty Period 2 Years What's in the Box: NSX3012UW Display ActiveImaging™ 3-IN-1 Transducer w/ 7.6m (25ft) cable DISCOVER X - NORTH AMERICA 4-Pin Power Cable Fuse Kit NSX 3012UW Suncover

Read more less

NSX 3012UW Combo with Active Imaging™ 3-in-1 TransducerExpand your horizons with the world's first fully-featured ultrawide marine display. NSX® ULTRAWIDE brings all the benefits of dual screens to a single display for our most immersive experience yet. Get a truly unique, eye-catching dash, see apps as they were meant to be seen, and experience C-MAP®'s X-Gen charts in more detail than ever.Get a Fresh PerspectiveNSX ULTRAWIDE offers a new perspective on boating. Discover an all-new aspect ratio for our most immersive on-the-water experience yet. Simpler Boating with Simrad's Latest Operating SystemNSX ULTRAWIDE also delivers game-changing simplicity. Use the intuitive activity bar to pin your favorite apps and switch between them with a single touch. The fully customizable instruments panel lets users make the NSX their own by ensuring users always have the right data at hand and nothing more.The simplified interface means users spend less time navigating menus and more time navigating water. Even that is quicker considering Simrad's fastest-ever auto-routing calculates routes in one-third of the time.Superior Engine ControlConnectivity is at the heart of NSX ULTRAWIDE. The display feeds more information than ever to the helm, giving superior control over the full suite of on-board technology.It all begins with superior engine control. Nobody integrates better with Mercury® than Simrad does, and NSX ULTRAWIDE also offers superior integration with other leading propulsion brands such as Honda and Suzuki.Bow-To-Stern IntegrationControl with NSX ULTRAWIDE extends across the entire vessel, with support for CZone® digital switching, RGBW lighting, IP cameras, and audio—with an intuitive Setup Wizard to help you get it all connected.A Fishing SuperpowerAnglers benefit from leading sonar tech like FishReveal™ and Active Imaging®, which provide high-res images 300 feet to the sides and below the boat. Compatibility includes a wide range of 1kW transducers, meaning users can fish even in the deepest waters.*Requires additional sonar module and a minimum 1.7 software update.FeaturesSimrad® Suite Integration:  See near and far with full support for 3G, 4G, and HALO® radars Easy autopilot integration with NAC-1, NAC-2, NAC-3 and NAC-D pilots Simrad® App integration for waypoint management and offline trip planning Third-Party Integration: Best-in-class Mercury® Integration, inc. SmartCraft® Connect Integration with leading propulsion brands such as Honda and Suzuki CZone® digital switching OmniSense Dometic Lumishore lighting Multiple audio partners IP cameras HTML5 app compatible Much, much more... Charts & Navigation:  Optimized for C-MAP® DISCOVER™ X AND REVEAL™ X charts X-Chart Manager 3x faster autorouting* *vs SIMRAD® GO  Fishfinding & Sonar Capabilities:  Sonar sharing between NSX® devices Compatible with Active Imaging™, featuring CHIRP, SideScan, and DownScan Imaging™, as well as the S3100 & S5100 sonar modules* *Requires minimum 1.7 software update   Network Connectivity:  Wireless Ethernet USB NMEA 2000® Additional Features:  The latest Simrad® operating system, for game-changing ease of use Ultrawide SolarMAX™ IPS HD touchscreen with extreme viewing angles Intuitive setup wizard Bracket mount sold separately Specifications:Display: Backlight Color: White Display Resolution: 1920 x 720 px Display Size: 12 inches Screen Brightness: >1000 nits Viewing Angles: 85° (top, bottom, left, and right) Physical: Compass Safe: 50 cm (1.7 ft) Dimensions (W x H x D): No Bracket, no suncover W: 337.0 mm (13.30") x H: 147.9 mm (5.82") x D: 88.5 mm (3.48"). With gimbal bracket| H: 157.9 mm (6.22") D:96.5 mm (3.80") Mounting Type: Rear mount (bracket supplied), bracket mount (bracket optional) Weight: 1.5 kg (3.3 lbs) Electrical: Power Consumption Max: 19.8 W (1434 mA at 13.8 V) Recommended Fuse Rating: 3A Supply Voltage: 12 V DC (10 - 17 V DC min-max) Environment: Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Operating Temperature Range: -15°C to 55°C (5°F to 131°F) Shock Vibration: 100,000 cycles of 20 G Storage Temperature Range: -20°C to 60°C (-4°F to 140°F) Waterproof Rating: IPx6 and IPx7 Connectivity: Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports: 1 port (5-pin connector) Connectivity Wi-Fi: IEEE 802.11b/g/n NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No SD Card Storage: 1 MicroSD slot, 1 x USB Video: IP Camera support MFD: Cartography Included: Discover X chart card of North America Digital Switching: Czone / Simrad DDS GPS: Internal, 10Hz Sonar Compatibility: One 9-pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 kHz, HDI, Active Imaging Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. Weather: No GPS: GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10 Hz high-speed update (internal)WASS, MSAS, EGNOS, GLONASS Other: Interface: Multi-touch screen Languages: German -English -Dutch -Danish -Spanish-French-Italian -Norwegian -Portuguese -Finnish -Swedish -Icelandic -Greek -Chinese-Turkish -Estonian -Croatian -Lithuanian -Latvian -Polish -Chinese Simplified -Japanese -Korean -Ukrainian Warranty Period: 2 Years Specifications: Cartography Brand: C-Map Screen Size: 12" Touchscreen: Yes Transducer Included: Yes Box Dimensions: 7"H x 13"W x 17"L WT: 10.55 lbs UPC: 9420064132423 Brochure (pdf)

Read more less

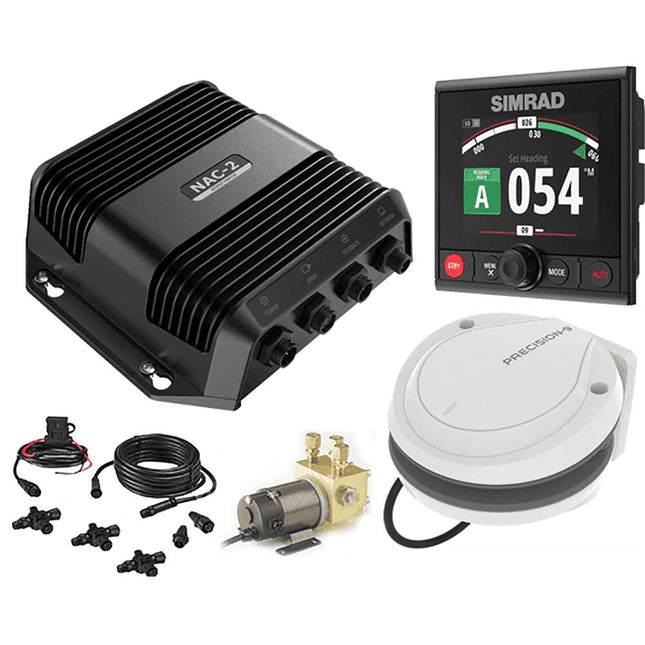

AP44 VRF Medium Capacity Autopilot Pack - AP44, NAC-2, Precision 9 & Pump-2 MK2The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full-color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.Features: Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto-tuning and calibration Simrad Continuum steering technology Intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile 'Glass Helm' design Low power consumption Certified NMEA 2000® connectivityIntuitive Autopilot Control The point of a dedicated autopilot controller is to enable immediate access to auto-steering functionality, placing key controls within easy reach. Designed with that purpose in mind, the AP44 includes an intuitive interface with just four buttons and a push-to-enter rotary control dialAutomated Turn PatternsYour Simrad autopilot can do much more than keep you on course. The AP44 gives you easy access to a range of built-in turn patterns designed to assist with fishing, diving, or just making a quick and efficient U-turn.Simrad Continuum SteeringEvery Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting's autopilot research hub in Norway.Easy Setup with Auto-Tuning & CalibrationAutopilot installation and commissioning don't have to be difficult or time-consuming. The AP44 offers automatic tuning to ensure optimal auto-steering performance, with a simple on-screen commissioning process including dockside configuration and sea trial.NAC-2The NAC-2 Autopilot Computer is the brain behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).Precision-9The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G, and Lowrance autopilot, radar, and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vesselPUMP-2 MK2The PUMP-2 MK2 Type 1 is a reversible hydraulic steering pump for boats up to 35ft.Unique Selling Points: Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class Simple installation with a single NMEA 2000® connection Specifications: Steering Type: Hydraulic Box Dimensions: 9"H x 14"W x 16"L WT: 14.15 lbs UPC: 9420064128211

Read more less

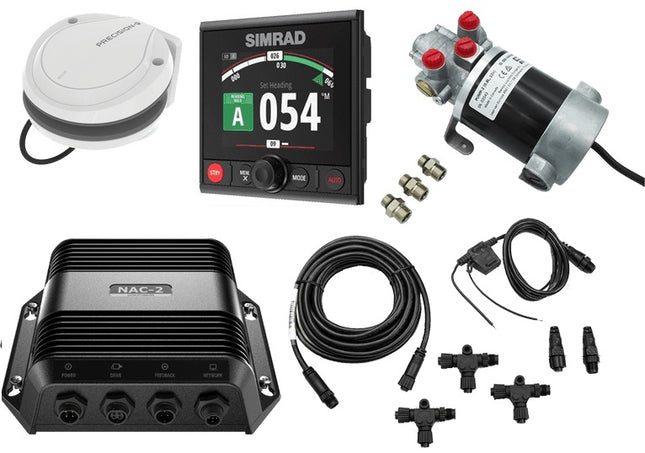

Simrad AP44M-VRF Medium Capacity Autopilot MKII Pump, SteadySteer CompatibleModel: 000-13291-002UPC: 9420024155165 Rotary-dial course adjustment with new intuitive autopilot control Optically bonded 4.1-inch color display Easy setup with auto tuning and calibration Simrad Continuum steering technology All new intuitive autopilot control Automated turn patterns No Drift steering Depth contour tracking Low-profile ‘Glass Helm’ design Low power consumption Certified NMEA 2000® connectivity The AP44 Autopilot Controller combines Simrad Continuum steering technology with a full color display, intuitive rotary dial and button controls, and modern glass helm styling. Free your hands from the wheel, cruise in comfort, and discover new ways to search for fish; this dedicated controller offers easy access to automated turn patterns, No Drift steering, depth contour tracking, and other advanced pilot features. Connect your chart plotter to add waypoint and route navigation, and enjoy full autopilot control from compatible Simrad displays.The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length.What's in the Box: AP44 Autopilot controller NAC-2 Autopilot Computer PRECISION-9 COMPASS N2K-PWR-RD TR-120-KIT PUMP-2 NKII : 12V DC: 3 x ORB-5 to 9/16 UNF fittings

Read more less

NSX™ 3012 12" Chartplotter & Fishfinder - Display Only - No TransducerEverything about NSX™ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAP® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishReveal™, DownScan Imaging™, and SideScan.Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.An Intuitive Touchscreen ExperienceEasily access all NSX™ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAX™ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.Bring Navigation to Life with NSX™See map details in a different way with next-generation C-MAP® DISCOVER™ X and REVEAL™ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the Simrad® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.Full Suite of Simrad® Technology at Your FingertipsExpand your system with advanced Simrad® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imaging™, as well as compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALO® radars, and stay on course with legendary Simrad® Autopilots.Simple to Set Up, Easy to ManageGet up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the Simrad® App allows access to the best planning tools and hassle-free software updates and data transfer.Features: Features a marine-optimized C-MAP® DISCOVER™ X chart with a fresh, intuitive chart presentation and daily updates – plus support for C-MAP REVEAL™ X charts  High definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan, and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Setup Wizard to get you up and running quickly, plus a simpler sonar setup Full integration with the capability to expand the system with Simrad® sonar, autopilot, radar, and more  Faster Autorouting with seamless accessibility See near and far simultaneously (up to 48nm), with HALO® Radar support and get ultra-fast updates every second Stay on course with full Simrad® autopilot integration Clean and simple interface  Simrad® App integration – keep your chart data at your fingertips, both on and off the water Third-party app integration  Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability  IP Video Support Specifications: Cartography Brand: C-Map Screen Size: 12" Touchscreen: Yes Transducer Included: No Box Dimensions: 7"H x 16"W x 17"L WT: 10.6 lbs UPC: 9420064110094 Brochure (pdf)

Read more less

Simrad NSX 3012 - Smart Chartplotter / fishfinder. No transducer. C-MAP® DISCOVER™ X chart includedModel: 000-15222-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation.See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates. NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars. See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course.With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before. The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1280 x 800 Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 29.7 W (2150 mA at 13.8 V) Recommended Fuse Rating 3A Physical Dimensions W x H x D With bracket: W: 319.5 mm (12.58") x H: 215.1 mm (8.46") x D: 86.0 mm (3.38") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX 3012 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Gimbal mounting bracket with knobs Suncover NSX 3012 Dash mount kit 4-pin Power Cable Fuse Kit NSX Corner bezel clips for NSX

Read more less

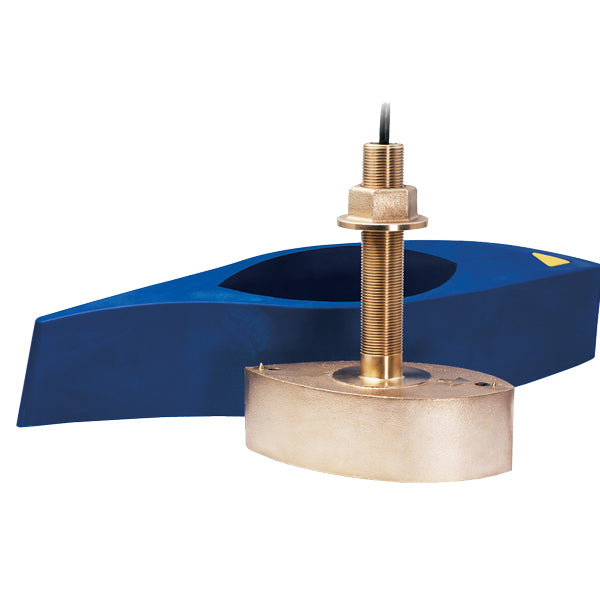

Lowrance B275 Low/High Wide CHIRP Bronze Thru HullModel: 000-13771-001 Depth & fast-response water-temperature sensor Low—CHIRPS from 42 kHz to 65 kHz; ?25° to 16° beamwidth High—CHIRPS from 150 kHz to 250 kHz; 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Bronze transducer housing Hull Deadrise: Up to 20° with fairing Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Read more less

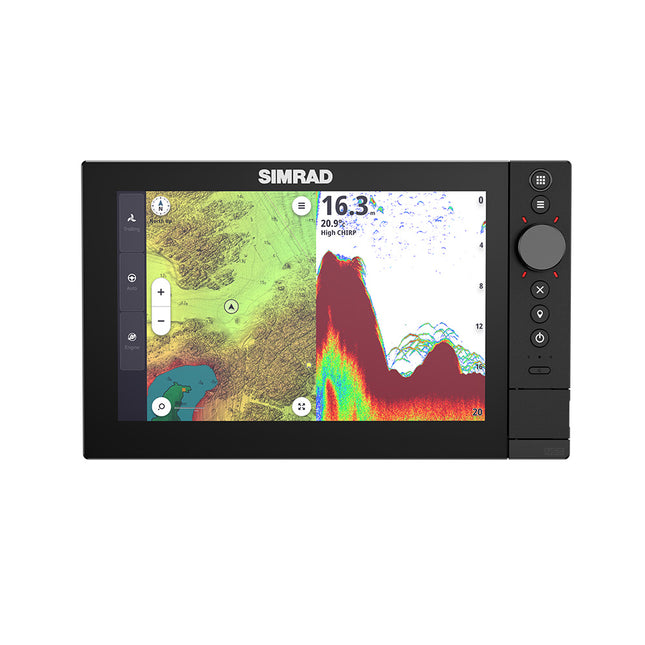

NSS4-10 10" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power Button: Power your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 28 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 1.8 kg (3.97 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Specifications: Cartography Brand: C-Map Reveal X Internal/External Antenna: Internal Screen Size: 10" Touchscreen: Yes Box Dimensions: 7"H x 14"W x 21"L WT: 10.4 lbs UPC: 9420064135417

Read more less

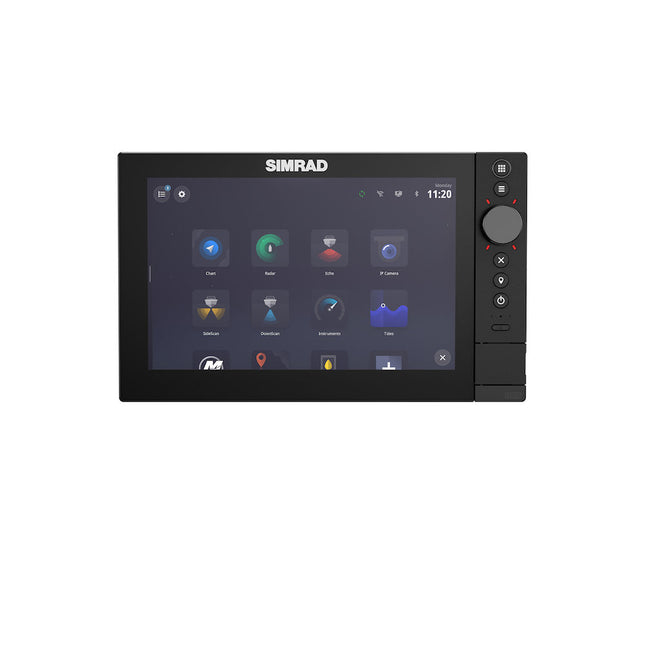

Simrad NSS4-10 10in MFD No SonarModel: 000-16275-001 Trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echosounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more? Support for Mercury®, CZone®, SiriusXM®, and more? 2-year limited warranty NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. And the keypad brings a selection of one-touch functions for easy navigation.Experience the power of a lightning fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing — and not on the screen.NSS 4 delivers our fastest ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structure in stunning detail — making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and moreMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen set up.Specifications Autopilot U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes Manouevres / Turn Patterns Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183 No NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity No Video Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color White Resolution 1280 x 800 Screen Brightness >1200 nits Size and Type 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Viewing Angles 80° top/bottom, 80° left/right Electrical Power Consumption, max. 28 W Recommended Fuse Rating 5 A Supply Voltage 12/24 V DC (10 - 31.2 V DC min - max) Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Environment Operating Temperature Range -15°C to 55°C (5°F to 131°F) Shock and Vibration 100,000 cycles of 20 G Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPX6 and IPX7 GPS Correction 10 Hz high speed update (internal) GPS Receiver Channels 32 Channels Position Accuracy Horizontal Accuracy 3 m (9.8 ft) Update rate 10Hz MFD AIS Receive AIS data over NMEA 2000 Autopilot NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included World wide basemap (not for navigation). Detailed chart card on the network required Cartography supported C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) Digital Switching Czone / DDS External Storage 2x (microSD®, SDHC®) GPS 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS) Radar (inc. compatibility) Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility) No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports Waypoints, Routes, Tracks 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial 35 cm (1.15 ft) Physical Dimensions (W x H x D) Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33 in x 6.93 in x 3.13 in) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43 in x 7.73 in x 3.13 in) Mounting Type Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight 1.8 kg (3.97 lb)

Read more less

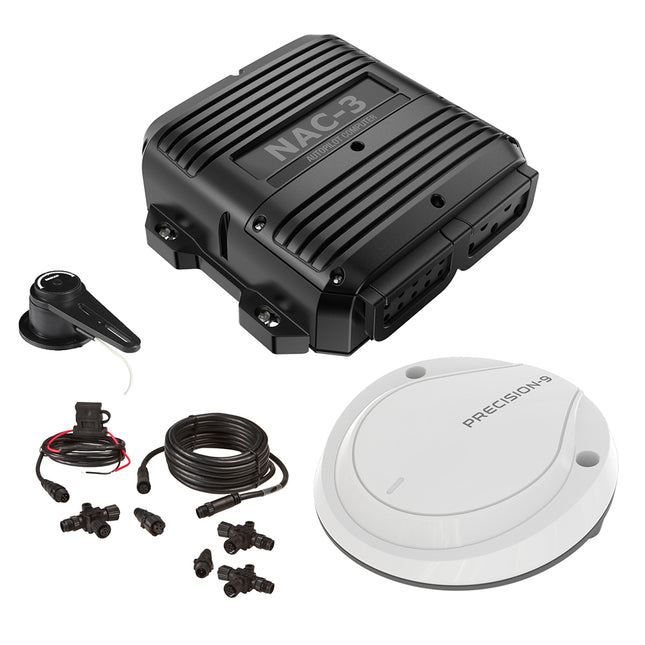

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter KitComprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).Precision-9 CompassThe Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.RF25N NMEA2000RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cableN2k Backbone Starter KitNMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminatorsSpecifications: Temperature, operation: 0 to +55°C Temperature, storage: -32 to +70°C Protection: IPx7 Weight in Kg: 0.7kg, 1.6lbs Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58" Mounting: Bulkhead Construction: Plastic Color: Black Cable inlet: Grommet (Spare Incl) Local Power supply: 12/24 V DC +10-30% NMEA 2000 Load Equivalent number (50mA): 1 Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000 NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay: Max 100mA, voltage level as local supply IEC 61162-1 input (NMEA0183 In): 1 ch IEC 61162-1 output (NMEA0183 Out): 1 ch IEC 61162-1 speed: 4.8 & 38.4 kbaud NMEA2000: Certified (pending) Specifications: Steering Type: Hydraulic Box Dimensions: 14"H x 14"W x 18"L WT: 8.8 lbs UPC: 9420024155646

Read more less

Simrad NAC-3 High-current Core Pack Model: 000-13336-001 UPC: 9420024155646 NAC-3 Autopilot Core Pack: Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit. The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak). Specifications Operating temperature 0 to +55°C protection IPX7 Electrical Power supply 12/24vDC Reversible motor control of rudder Max continious load 30A, peak 50A for 1s On/off solenoid control of rudder 12/24V DC, common, load range 10mA to 10A, off current <1mA Engage output for bypass/clutch 12/24V DC, min 10mA, max 3A Rudder angle, frequency input 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000 NFU port/stbd input and mode indicator output External open/close contact, common ret, contact current max 30mA Mode input External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA External alarm output for buzzer/relay Max 100mA, voltage level as local supply Networking NMEA 0183 1 in 1 out NMEA2000 1 Micro C What's in the Box: NAC-3 Autopilot Computer PRECISION-9 COMPASS RF25N NMEA2000 N2k Backbone Starter Kit

Read more less

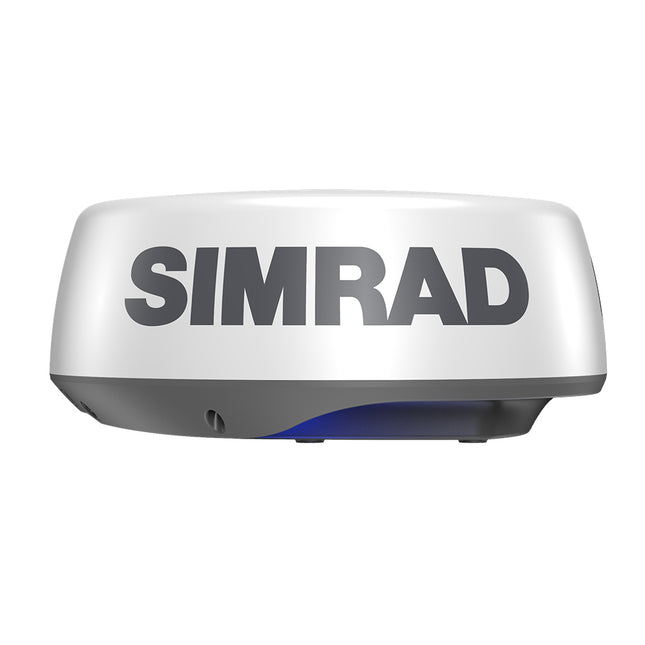

HALO20+ 20" Radar with 10M CableSee Far And Near With One Compact DomePerfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.The Best View To Avoid CollisionHALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.  Built-in VelocityTrack™ Doppler TechnologyVelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.Ready Whenever You AreHALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.Easy to Use RadarHarbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.Features: 36 nm range from a compact 20-inch dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both far and near Ultra-fast 60 RPM operation at ranges up to 1.5 nm VelocityTrack™ Doppler technology to avoid collision Easy operation with harbour, offshore, weather and custom modes MARPA target tracking (up to 10 targets, 20 in dual range) Ready instantly from standby Low power consumption Included: 20" dome 10m cable (000-14548-001) Ethernet Adapter Cable (000-14552-001) Specifications: Range - Max (Miles): 36nm Array Size (Inches): 20" Box Dimensions: 12"H x 24"W x 26"L WT: 25.75 lbs UPC: 9420024173787

Read more less

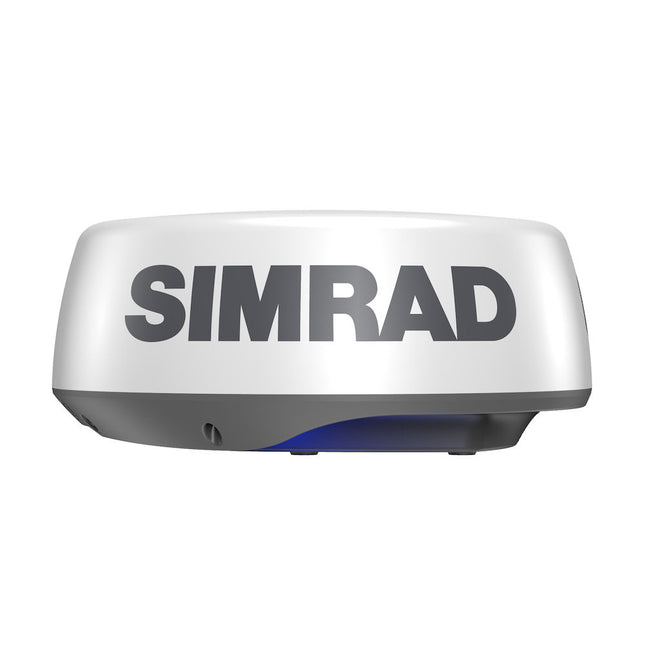

Simrad Halo 20+ Radar DomeModel: 000-14536-001 36 nm range from a compact 20-inch dome Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation sees both near and far Ultra-fast 60 RPM operation at ranges up to 1.5 nm VelocityTrack™ Doppler technology for collision avoidance Easy operation with harbour, offshore, weather, and bird modes MARPA target tracking (up to 10 targets, 20 in dual range) Ready instantly from standby Perfect for a wide range of coastal bay boats, HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.HALO20+ radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO20+ Radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20+ Radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.Harbour, Offshore, Weather, Bird, and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly — even in the toughest environmental conditions.Specifications Approvals Compliance FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety Electrical Power Consumption, max. 29W Power Consumption, typical 20W Recommended Fuse Rating 5A Supply Voltage 10.5 - 31.2 VDC (12/24V systems) Humidity 95% RH at 35°C (95°F) Environment Operating Temperature Range -25° to + 55°C (-13° to +130°F) Waterproof rating IPX6 MFD Dimensions (Diameter x H) 510mm (20") Physical Dimensions (W x H x D) 510mm dia x 223 mm H. (20" dia x 8.8" H) Weight 5.9 kg (13 lbs) without cable Radar Beam width 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V Max Range, scale 36 NM Max Operating Wind Speed 100 knots (51 m/s) Min Range, scale 50 m / 200 ft / 50 yd Radar Modes Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion Radar Technology Pulse Compression Rotation speed Up to 60 RPM (Range Dependent) Other 2 Years

Read more less

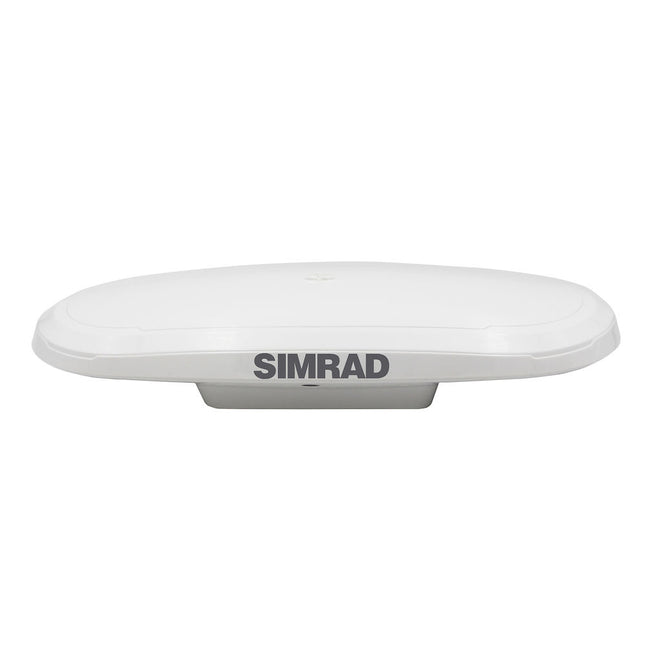

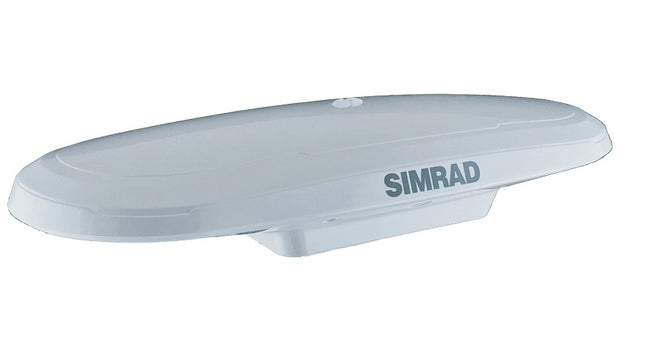

Simrad HS75 GPS CompassModel: 000-16143-001 NMEA 2000 certified Supports GPS, GLONASS, Galileo, BeiDou, QZSS Heading accuracy of 0.75° in a small form factor SBAS Fast start-up time Dead-reckoning during temporary satellite outage Plug and play with Simrad autopilot and radar systems 10 Hz heading and position update rate Provides heading, position, SOG, COG, heave, pitch and roll NMEA 2000 only Mounts directly on flat surface Mounting kits sold separately (000-15686-001 Pole Mount Bracket & 000-15687-001 Surface Mount Kit ) NMEA 2000 cable sold separately in different lengths Well suited as autopilot heading source Well suited as radar heading source The HS75 GNSS Compass supports GPS, GLONASS, Galileo, QZSS, and BeiDou satellites. The GNSS antennas are separated by 20 cm (7.87") between phase centers, resulting in a heading performance of better than 0.75° RMS. The HS75 can provide heading and positioning updates at 10 Hz and delivers positioning accuracy of 0.6 m 95% of the time when using differential GPS corrections from Satellite Based Augmentation Systems (SBAS).The six-axis rate sensor improves system performance and provides backup heading information in the event a GNSS heading is not available due to signal blockage. The sensor provides a substitute heading, accurate to within 1 per minute for up to three minutes.

Read more less

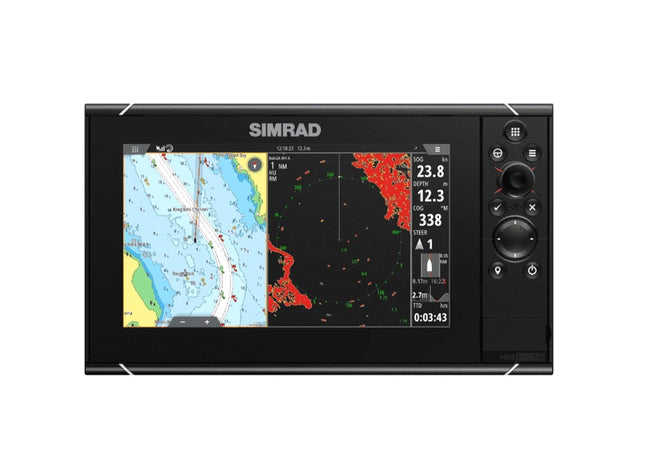

Simrad NSS evo3S 9in DisplayModel: 000-15402-001 High Resolution, High Bright, SolarMax IPS Displays Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images Take another step forward with Simrad’s premium network modules for the ultimate offshore performance Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control Low profile glass dash styling Built in Wi-Fi connectivity Next Generation Processor SolarMAX IPS Display Technology Multi-touch screen and keypad hybrid control Built-in Advanced Echosounder NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improvedSpecifications Physical Dimensions 287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72) Weight 1.41kg/3.11lb Environmental Operating temperature range -15°C to +55°C (5° F to 131° F) Environment Shock Vibration 100,000 cycles of 20G Storage temperature range -20°C to +60°C (4°F to 140°F) Water resitance IPX6 and 7 Power Supply voltage 10 - 31.2 V DC Fuse rating 5A Power consumption (Max) 21W Display Display backlight color White Display resolution 600 x 1280 Display screen brightness 1200 nits Display size and type High Visibility SolarMax HD® IPS 7" optically bonded TFT Display viewing angles 80° top/bottom, 80° left/right Connectivity Ethernet 1 x 5 pin yellow connector x 1 Mbit Bluetooth Internal NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 connectivity 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) Video connectivity 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). WiFi connectivity Internal Sonar Sonar frequencies 40-250kHz 455-800kHz Sonar max depth 3000’+ (tested with B175L) Sonar output power 1kW RMS Compliance Compliance GPS GPS Internal GPS update rate 10 Hz GPS channels 34 GPS correction WASS, EGNOS, MSAS, GLONASS GPS position accuracy Horizontal Accuracy 3 m (9.8 ft) GPS time to first fix Cold start 50 sec, Satellite Reacquisition 5 sec What's in the Box: NSS evo3S 9" Display NSS9 EVO3 SUN COVER NSS9 EVO3 & ZEUS - 9 Mounting Bracket NSS9 EVO3 & ZEUS3 - 9 DASH MOUNT KIT NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS Power Cable

Read more less

NSS9 evo3S Multi-Function Chartplotter/FishfinderImproved Charting experience with iMX8 processorWith a 2X faster page loading time, choosing any split screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR and Florida Marine Tracks.Enhanced Sonar with superior on-water performance 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structure, and crystal clear views of the bottom ahead using ForwardScan® sonar.SolarMAX™ IPS displays for high-definition views Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.UI Improvements A dark-themed wallpaper for less light pollution from a dash of multiple screens. The Audio side bar can now expand into a full page view. The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu. The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page Wireless connectivity for smartphones and tablets Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.Radar Options HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls and even locate flocks of feeding birds in order to locate fishing spots.FLIR IP Camera SupportDay and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360 degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from a NSSevo3S™. WM-4 ReceiverGet up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.Fast & Simple Networkingand ConnectivityIndustry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems and much more. Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deep water S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot. In The Box: Display Unit Bezel Trim Documentation pack Power cable kit U-bracket kit Panel mounting kit Connections: Ethernet - Ethernet network Power - power, power control, and external alarm Video- composite video and NMEA0183 NMEA 2000 - NMEA 2000 data Sonar CH1 Sonar CH2 Specifications: Transducer Included: No Touchscreen: Yes Screen Size: 9" Cartography Brand: Navionics/C-Map/Lowrance Box Dimensions: 10"H x 12"W x 16"L WT: 9.15 lbs UPC: 9420064113569 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

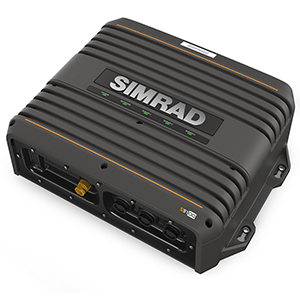

S5100 Module Redefining High-Performance SonarThe S5100 high-performance CHIRP sonar module delivers true simultaneous coverage of up to three different depth ranges, at high resolution, making it the perfect sonar solution for offshore sportfishing anglers.Simultaneous split-screen viewing capability puts you in complete control of the water column; while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines - or adjust specific CHIRP frequencies from 28 to 250 kHz to precisely target specific depths producing big, crisp arches with clear target separation.Features: 3 fully independent sonar channels deliver high-resolution coverage Noise-free clarity at all depth ranges Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP Compatible with wide-angle CHRIP transducers for greater coverage of the water column Simultaneous split-screen viewing of multiple depth ranges on your display Maximum depth of 3,000 meters/10,000 feet (transducer dependent) Easy to install with three plug-and-play 9-pin transducer connectors Compatible with Simrad NSS evo3 and NSS evo2 multifunction displays, NSO evo2 systems and S2000-series fishfinders

Read more less
