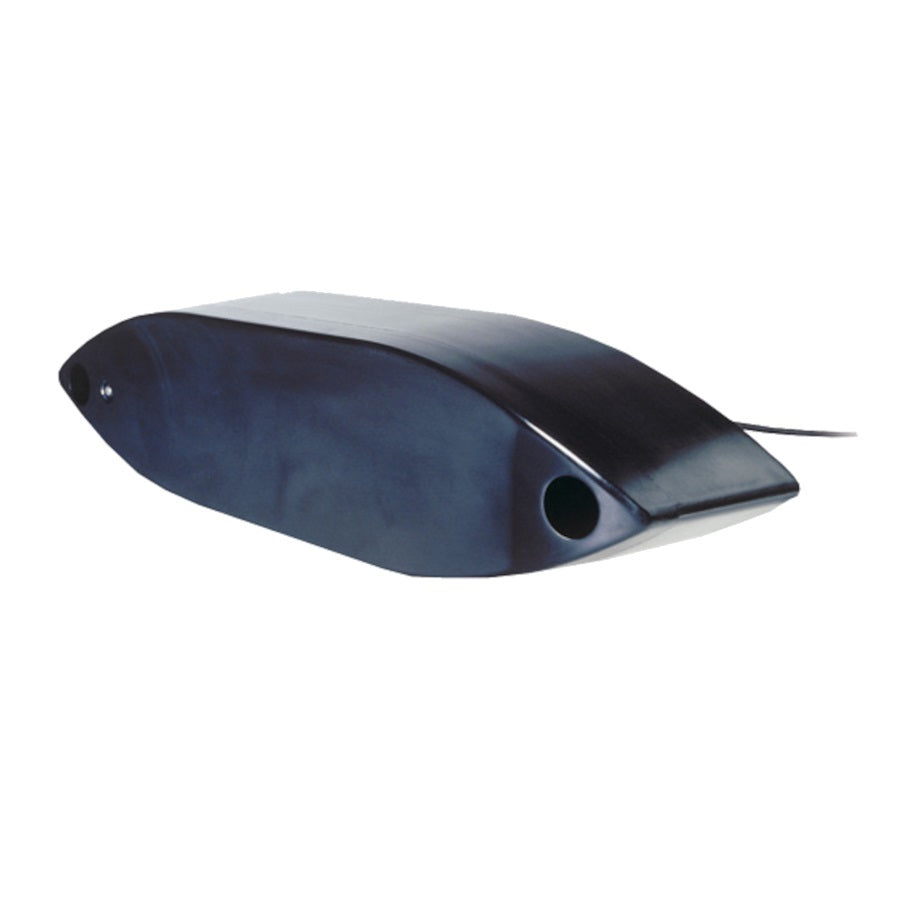

Airmar R509 Low-Medium Chirp, 3kW, w/FB, No Connector, DT
Model: R509C-LM
- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz, 23 deg to 9 deg port-starboard beamwidth, 11 deg to 5 deg fore-aft beamwidth, Maximum depth of 3048 m (10000 feet)
- Medium frequency: 80 to 130 kHz, 13 deg to 8 deg beamwidth, Maximum depth of 914 m (3000 feet)
- 82 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
- Patented Xducer ID(R) technology
Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2-3 kW, low and medium-frequency transducer. The Chirp-ready R509LM delivers the deep-water performance of the low frequency down to 3048 m (10000 feet) plus the detailed returns produced by the narrower beams of the medium band.
Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R509LM transmits across the low-frequency bandwidth of 28 to 60 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 82 kHz of total bandwidth in a single installation.
SpecificationsAcoustic Window| Epoxy/urethane |
| Cable-Length |
15 m (49 feet) |
| Connector |
Bare Wire |
| Deadrise Range |
Up to 25 deg with fairing |
| Frequency |
Low-Medium |
| Low Frequency |
28-60 kHz |
| Low Frequency Beamwidth |
11 degx23 deg-5 degx9 deg |
| Medium Frequency |
80-130 kHz |
| Medium Frequency Beamwidth |
13 deg-8 deg |
| Housing Material |
Urethane |
| Max Deadrise |
Up to 22 deg |
