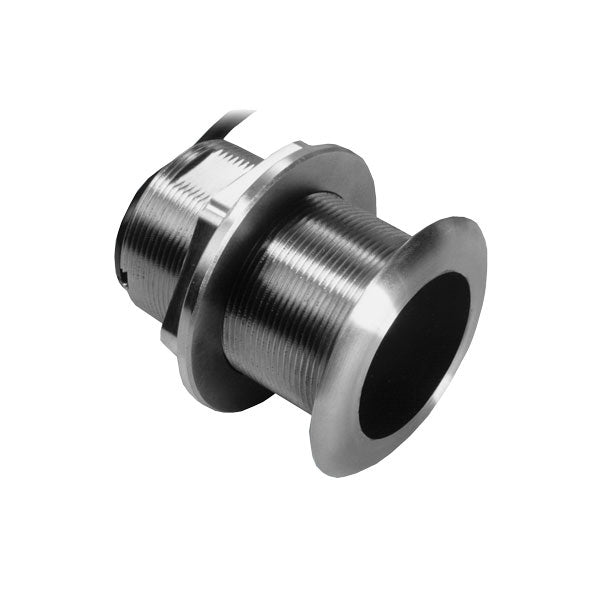

Sirmar SS60 Stainless Steel Thru Hull with 20deg Tilted Element 50/200Khz 8-Pin Garmin Plug
Model: SS60-20-8G
- Engineered for center-console and trailered boats
- Low-profile protrusion below the hull
- No affect on your boats running performance
- Arrow on cap points toward keel when installed
- Built-in temperature sensor
- Boat Size: Up to 8 m (25 feet)
- Stainless steel transducer housing
- Fixed 20 deg tilted version for 16 deg to 24 deg hull deadrise
The SS60 is the stainless-steel version of Airmar's popular, B60, Tilted ElementTM transducer. This product provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings. For hulls with a minimal deadrise angle, it is also available without tilt. The nearly-flush housing minimizes drag with only 5 mm (3/16) extending outside of the hull. The SS60 is currently being used by the US Coast Guard.
SpecificationsBeam Width| 45/12 |
| Frequency |
50/200 |
"
