Description

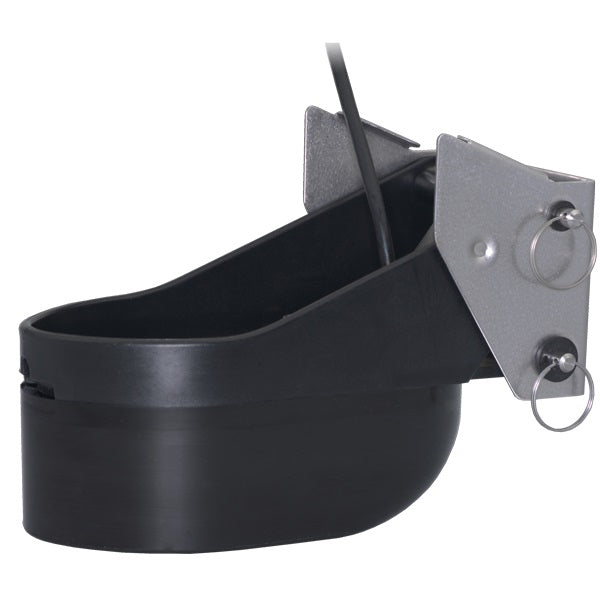

Airmar TM265C Low/High CHIRP Transom Mount Transducer with Raymarine 11-Pin Mix-N-Match Cable
Model: TM265C-LH-11R
- 8 Internal Broadband Ceramics
- Depth & fast response water temperature sensor
- Urethane housing and stainless steel mounting bracket
- Can retrofit to existing TM258 & TM260 bracket
- Exclusive Xducer ID® technology
Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.
Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:
LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz
Specifications
| Low frequency |
42-65 kHz (25° to 16° beamwidth) |
| High frequency |
130-210 kHz (10° to 6° beamwidth) |
| Boat Size |
8 m to 12 m (25’ to 40’) |
| Boat type |
Outboards, I/O |
| Hull type |
Fiberglass, Wood, Metal |
| Hull Deadrise |
Up to 28° |
| Acoustic Window |
Urethane |
What's in the Box:
- TM265CLH-MM
- Transom Mount Hardware
- MMC-11R
