Description

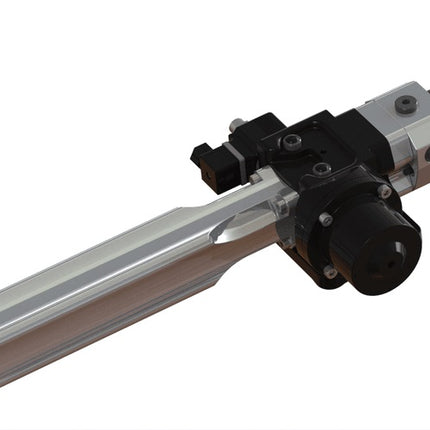

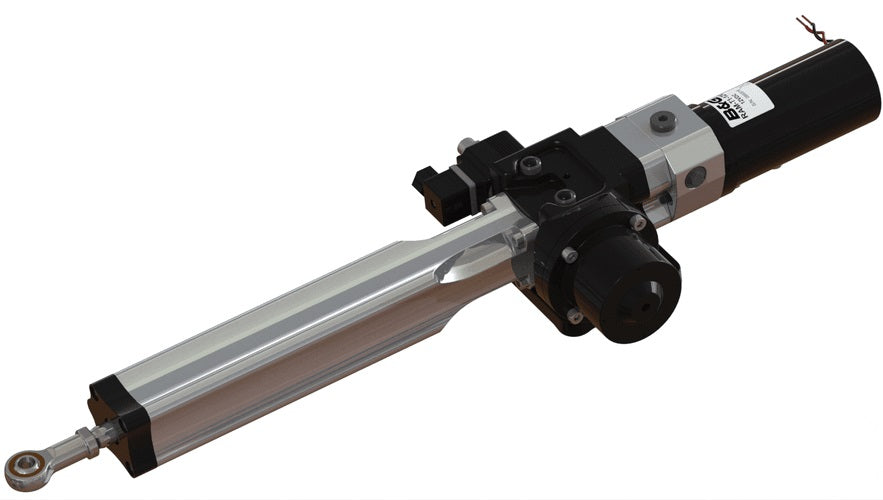

B & G Hydraulic Ram T1 12V
Model: RAM-T1-12V
The RAM T1 Hydraulic linear actuator combines a cylinder, pump, motor, clutch, and reservoir in a pre-filled, sealed unit. Designed to be used on vessels fitted with mechanical primary steering that can be back-driven. When the clutch is disengaged the cylinder is free and moves with the primary steering. To operate the unit in autopilot mode the course computer energizes the clutch solenoid coil and runs the bi-directional motor to extend and retract the ram. Internal relief valves protect the unit and its mountings from the rudder strikes, grounding, etc.
Specifications
| Voltage |
12 VDC |
| Current |
60 kg at 25% duty - 2A // Intermittent 650 kg - 19.0 A |
| Hard-over time |
13 seconds (Nominal) |
| Ingress protection |
IP67 |
| EMC Protection |
BS EN 60945:2002 (DC) |
| Ignition Protection |
BS EN 28846:1993 |
| Declaration of Conformity |
EMC Directive 2014/30/EU |
| Ambient temperatures |
-15 to + 55 deg C |
| Max thrust |
700 kg (Intermittent) |
| Dimensions |
101 x 728 mm |
| Construction |
Aluminum |
| Max Stroke |
264 mm |
| Orientation |
Red lead to positive - Extends // Black lead to positive - Retracts |
| Clutch coil |
12 watt |
| Clutch connection |
DIN 43650 (6-8 mm cable) |
| Fluid |
ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV |
| Suitable commercial Fluids |
Fuchs Renolin B 15 HV1 // Seastar HA5430 |
| Weight |
8 kg |
