Description

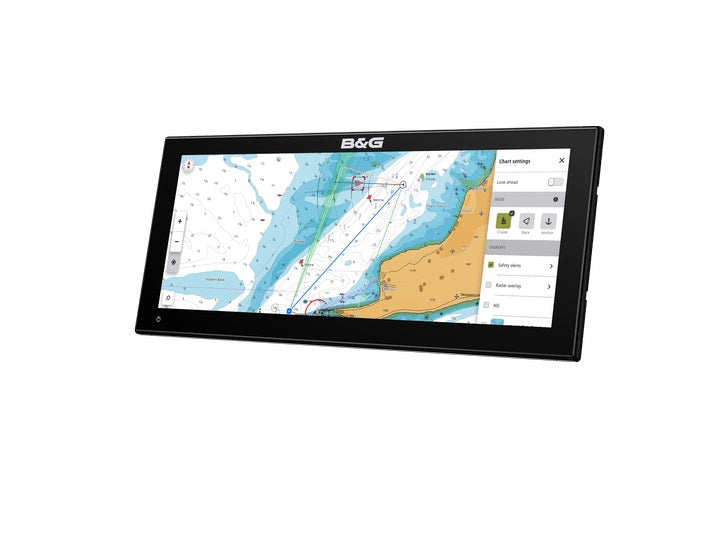

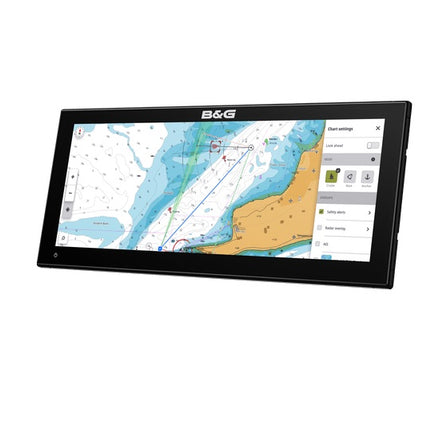

B & G Zeus® S 3015 Ultrawide chartplotter AMER. 15-inch ultrawide SolarMAX™ IPS HD Display. Built-in GPS, WIFI. With C-MAP® DISCOVER™ X chart.
Model: 000-16357-001
- SolarMAX™ IPS HD Display: Touchscreen is viewable from all angles and in all conditions, even with polarised sunglasses
- Full Integration: Compatibility with HALO® Radars, Triton® 2 Sailing Auto Pilots, Triton 2 and Nemesis® Instruments, sensors, sonar, and more
- X-Chart Manager: Update charts directly on your device, no PC required.
- B&G App Integration: Explore charts on and off the water and enjoy 12 months’ premium subscription for free when you purchase a DISCOVER® X or REVEAL® X Chart.
- IP Camera Support: Connect an IP camera for full boat visibility.
- Easy Connectivity: Support for Wi-Fi®, Ethernet, and NMEA 2000®.
Zeus S Ultrawide delivers our most streamlined and immersive sailing experience yet. For the first time, see apps as they were meant to be seen — uninterrupted by bezels or dead space.
Zeus S Ultrawide brings perfectly-optimized splits and uninterrupted data flows that are easier to digest — u nlocking more data, more controls, more possibilities. Get ultrawide views of all our award-winning sailing features, such as SailSteer, Laylines, StartLine. And, with a selection of modes, it’s never been easier to find the right tools at the right time.
Zeus® S Ultrawide features simplified datasets for casual cruising, alongside our award-winning sailing features like LayLines and SailSteer™ to help you stay on course.
When it’s time to race, selecting Race Mode puts you instantly in control of powerful tools like StartLine and RacePanel .
A dedicated anchor mode delivers the simplicity and peace of mind needed for a relaxing rest stop, ensuring you don’t run aground at low tide . *Software update required
Charts never looked as good as they do on Zeus S Ultrawide. The latest C-MAP® DISCOVER® X charts are optimized specifically for the platform. The ultrawide display’s high pixel density shows super—sharp resolution like never before — letting you appreciate unprecedented levels of detail. The X-Gen charts also feature C-MAP® Safety Alerts and the X-Chart Manager for simple updates.
Specifications
| Display |
| Size and Type |
15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Resolution |
1920 x 720 px |
| Viewing Angles |
85° (top, bottom, left, and right) |
| Screen Brightness |
>1000 nits |
| Backlight Color |
White |
| Power |
| Supply Voltage |
12 V DC (10 - 17 V DC min - max) |
| Power Consumption max |
25 W (1811 mA at 13.8 V) |
| Protection |
Reverse polarity and over voltage (Max 18V) |
| Recommended Fuse Rating |
3A |
| Physical |
| Dimensions W x H x D with bracket |
H: 180. mm (7.10") D:96.5 mm (3.80") |
| Dimensions W x H x D without bracket |
W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48") |
| Weight |
1.9 kg (4.2 lbs) |
| MountingType |
Rear mount (bracket supplied), Bracket mount (bracket optional) |
| Compass Safe Distance |
50 cm (1.7 ft) |
| Environmental |
| Operating Temperature Range |
-15°C to 55°C (5°F to 131°F) |
| Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Waterproof rating |
IPx6 and IPx7 |
| Humidity |
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Shock Vibration |
100,000 cycles of 20 G |
| Interface and connections |
| Interface |
Multi-touch screen |
| Sonar Compatibility |
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar modules S3100, S5100. |
| Ethernet |
1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars |
| Weather |
Sirius XM (USA Only) |
| USB |
1 port (USB A) Output: 5 V DC, 1.5 A |
| External Storage |
1 MicroSD slot, 1 port (USB A) |
| NMEA 2000 |
1 x NMEA 2000 Micro-C port, 1 LEN |
| NMEA 0183 |
No |
| GPS |
Internal, 10Hz, WASS, MSAS, EGNOS |
| GPS Correction |
10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS |
| GPS Position Accuracy |
Horizontal Accuracy 3 m (9.8 ft) |
| GPS Receiver Channels |
32 Channels |
| GPS Update rate |
10Hz |
| J1939 |
No |
| WiFi |
IEEE 802.11b/g/n |
| Bluetooth |
Bluetooth 4.0 with support for Bluetooth Classic |
| Charts Supported |
C-MAP Discover X, C-MAP Reveal X. Third party charts (contact venor for NEON compatible charts) |
| AIS |
Receive AIS data over NMEA 2000 |
| Digital Switching |
C-Zone |
| Warranty |
| Warranty Period |
2 Years |
What's in the Box:
- Zeus® S 3015 Ultrawide Display
- M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA
- Zeus® S Ultrawide-15 Suncover
- Fuse and Fuse Holder (Not for sale)
- NSX 3015UW, ZeusS Rear mount kit
