Description

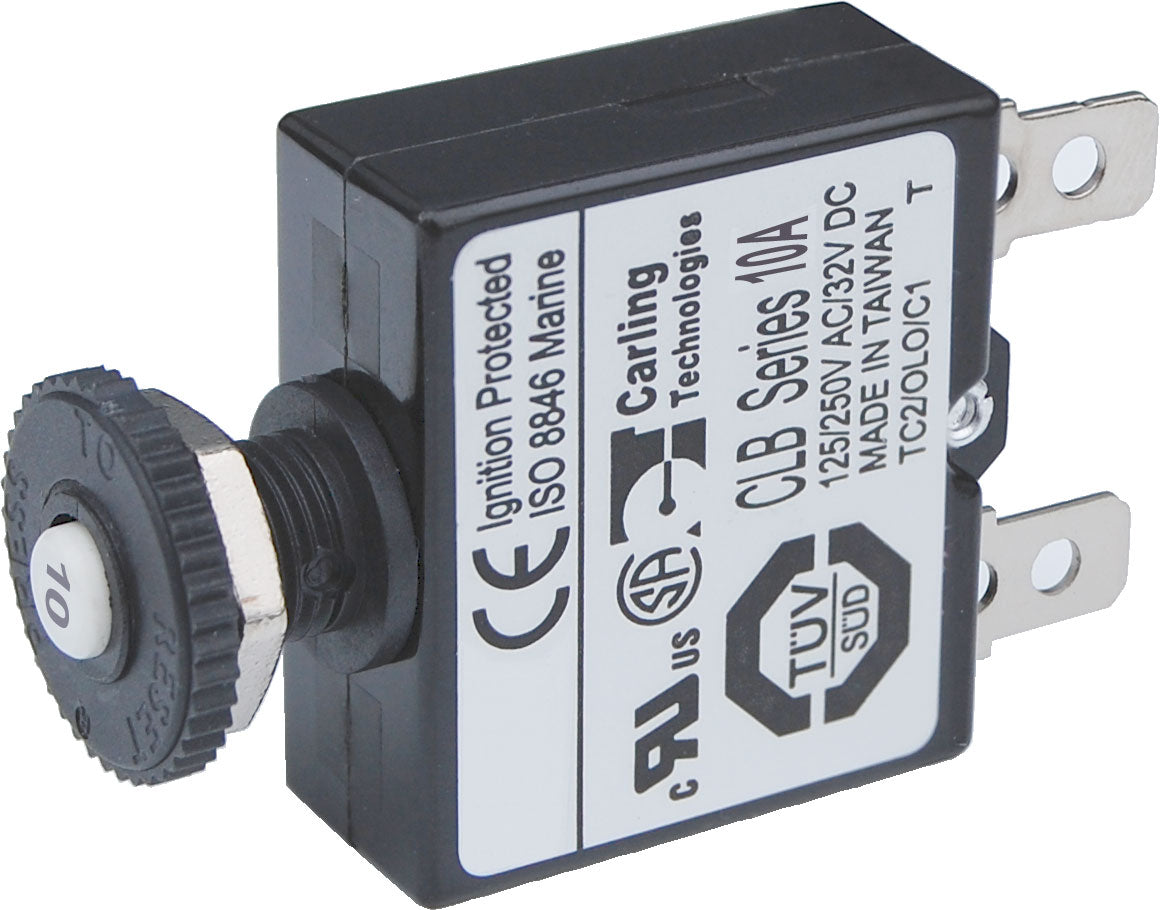

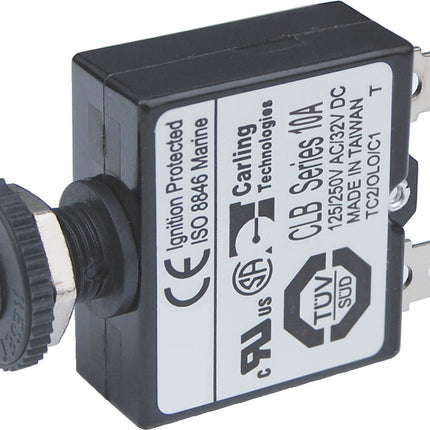

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
Model: 7054-BSS
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
| Amperage |
10A |
| Maximum Voltage |
32vDC |
| Mounting |
Panel Mount 3/8-27 UNS |
| Circuit Breaker Type |
Thermal trip, manual push-button reset only |
| Terminal Type |
1/4 Male Quick Connect |
| Interrupt Capacity |
3000A @ 14.7V
2500A @ 28V |
| Minimum Operating Temperature |
-10° C |
| Maximum Operating Temperature |
60° C |
