Description

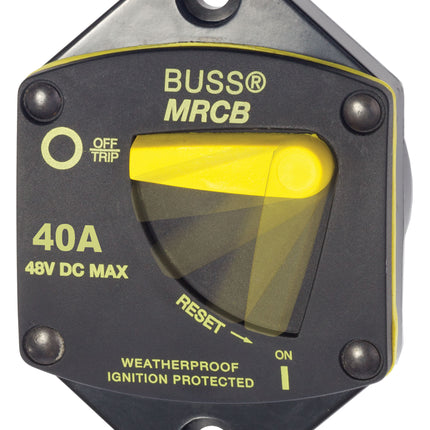

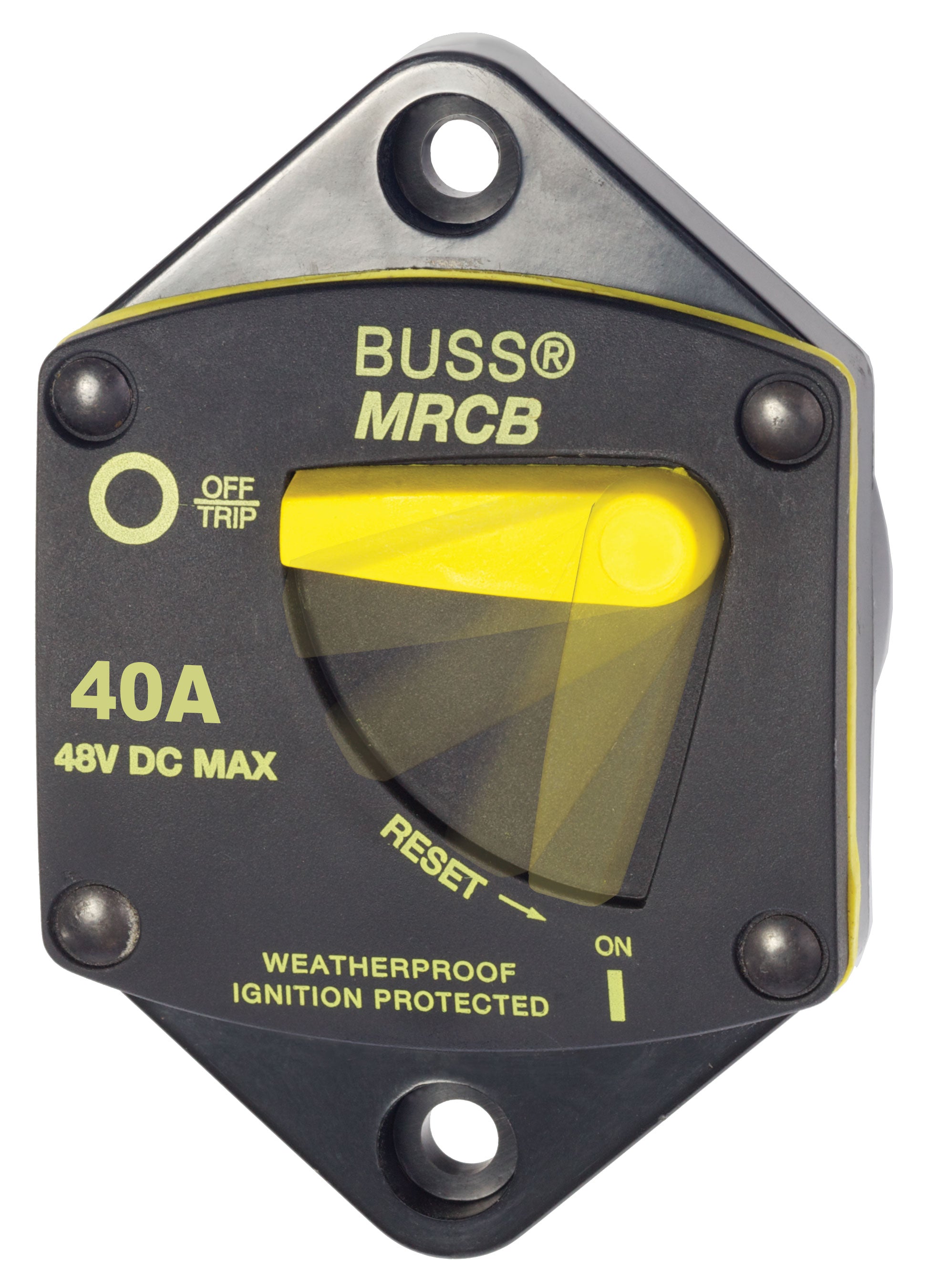

Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 40A
Model: 7038-BSS
- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats
* Do not use as a switch where high inrush currents are expected.
SpecificationsAmperage| 40A |
| Maximum Voltage |
48vDC |
| Mounting |
Panel Mount |
| Circuit Breaker Type |
Thermally responsive Bi-metal blade |
| Terminal Stud Torque |
75 in-lb (8.47 Nm) |
| Interrupt Capacity |
5000A @ 12V
|
