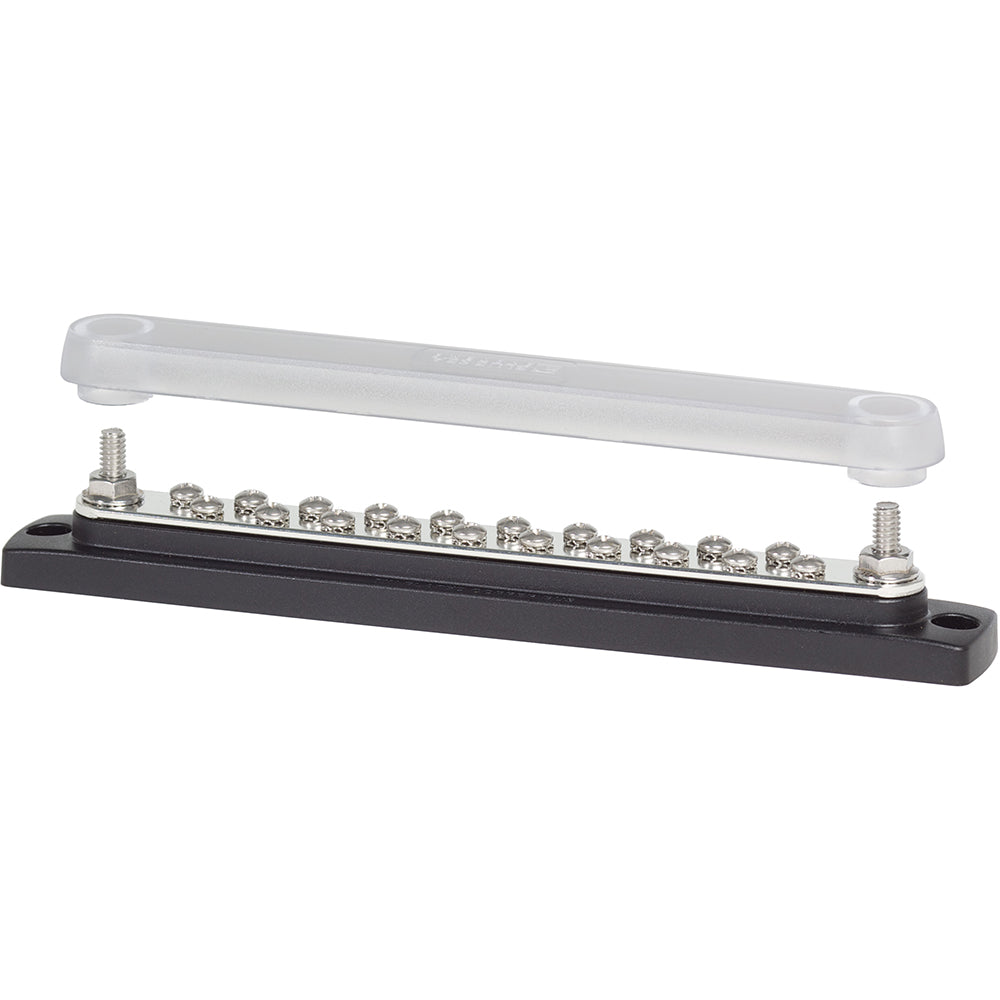

Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover [2312]

Description

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

PN:   2312

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless steel studs and screws allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and resistance to corrosion
  • UL 94-VO rated (self extinguishing) base material resists high heat
  • Press on insulating cover attaches to studs and allows unobstructed wire access
  • Raised bus provides easy access to multiple wires on a single screw


Continuous Amperage 130 Amperes AC
150 Amperes DC
Maximum Voltage Rating 300 Volts AC
48 Volts DC
Bus Material Tin-Plated Copper CDA 110/UNS11000
Base Material Glass Reinforced Polycarbonate
Cover Material Polycarbonate
Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight 0.58Lb

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover [2312]

Product form

$29.99

    Description

    150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

    PN:   2312

    • Stud design provides direct terminal to bus contact for low resistant connection
    • Stainless steel studs and screws allow high torquing for excellent electrical contact
    • Tin-plated copper bus for maximum conductivity and resistance to corrosion
    • UL 94-VO rated (self extinguishing) base material resists high heat
    • Press on insulating cover attaches to studs and allows unobstructed wire access
    • Raised bus provides easy access to multiple wires on a single screw


    Continuous Amperage 130 Amperes AC
    150 Amperes DC
    Maximum Voltage Rating 300 Volts AC
    48 Volts DC
    Bus Material Tin-Plated Copper CDA 110/UNS11000
    Base Material Glass Reinforced Polycarbonate
    Cover Material Polycarbonate
    Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
    Screws Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
    Weight 0.58Lb

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
