2356100 - Water Resistant 100A Busbar with Cover
Water-resistant bussing for harsh environments. Built with wing screws for toolless access.
Features:
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used
- Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring
- Ideal for positive distribution and for the collection of negative or AC ground circuits
- Meets ABYC/USCG insulation requirements
- Tin-plated copper busses and fuse clips
- Includes four (4) write-on circuit labels
- Small format standard and custom labels are available
- Wing-screws designed for tool-free installation of cover to meet ABYC compliance
Technical Specifications:
- Cover - yes
- Maximum Voltage - 300V AC - 48V DC
- Terminal Stud - 1 x #10-32
- Continuous Rating - 100A AC or DC
- Bus Material - Tin-plated Copper
- Mounting Holes - Accepts 1/4" (6mm) screws
- Terminal Screws - 4 x # 8-32
- Wire Size - Input - (1) 8 AWG to 4 AWG
- Wire Size - Load - (4) 16 AWG to 10 AWG
In the Box:
- 2356100 Busbar
- Instruction Manual
*Sold as an Individual
Quick Guide (pdf)

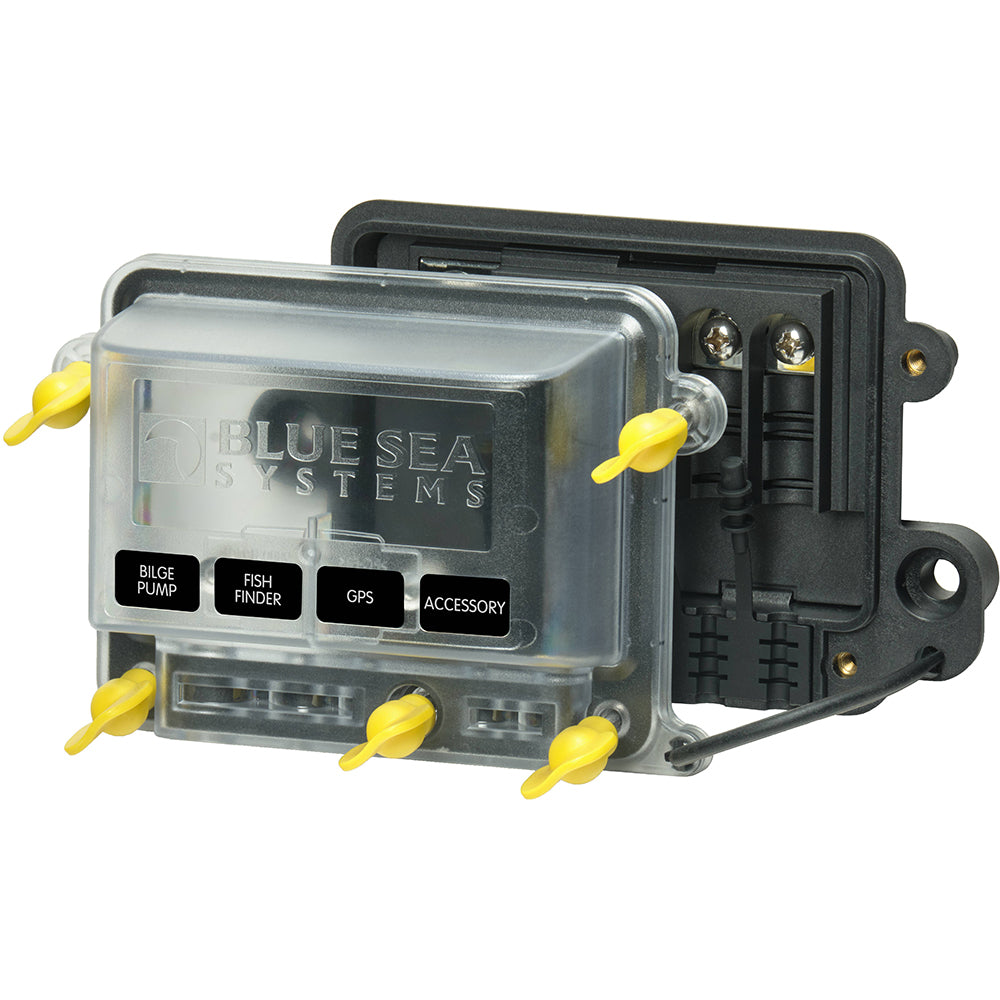

![Blue Sea 2356100 - Water Resistant 100A Busbar w/Cover [2356100]](http://rebellionmarine.net/cdn/shop/products/94732XL.jpg?v=1656247525)
