Description

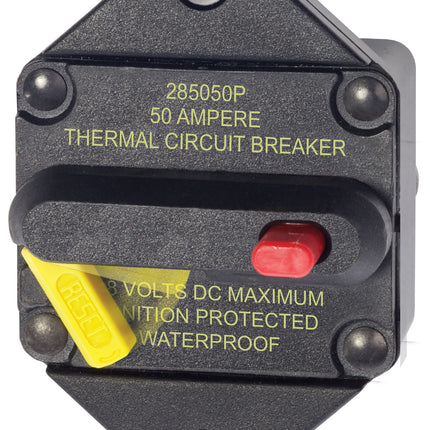

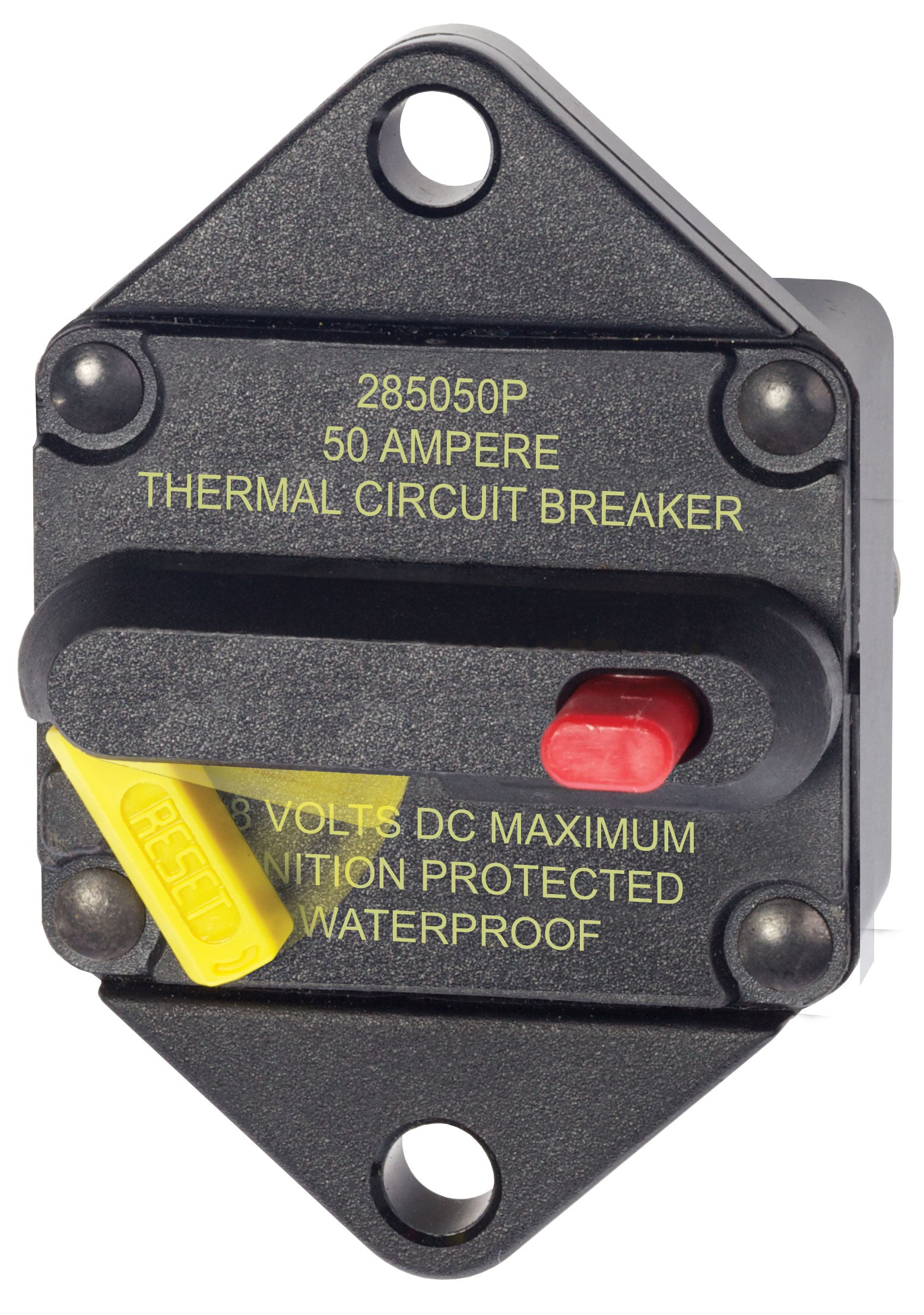

Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 50A
Model: 7083-BSS
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected
SpecificationsAmperage| 50A |
| Maximum Voltage |
48V DC |
| Mounting |
Surface Mount |
| Circuit Breaker Type |
Thermally responsive Bi-metal blade |
| Terminal Stud Torque |
60 in-lb (6.78 Nm) |
| Interrupt Capacity |
3000A @ 48V |
| Minimum Operating Temperature |
-40 deg C |
| Maximum Operating Temperature |
85 deg C |
| Circuit Breaker Class |
Type III - switchable/manual reset - trip free |
| Terminal Stud |
M6 (accepts 1/4 in Ring Terminal) |
"
