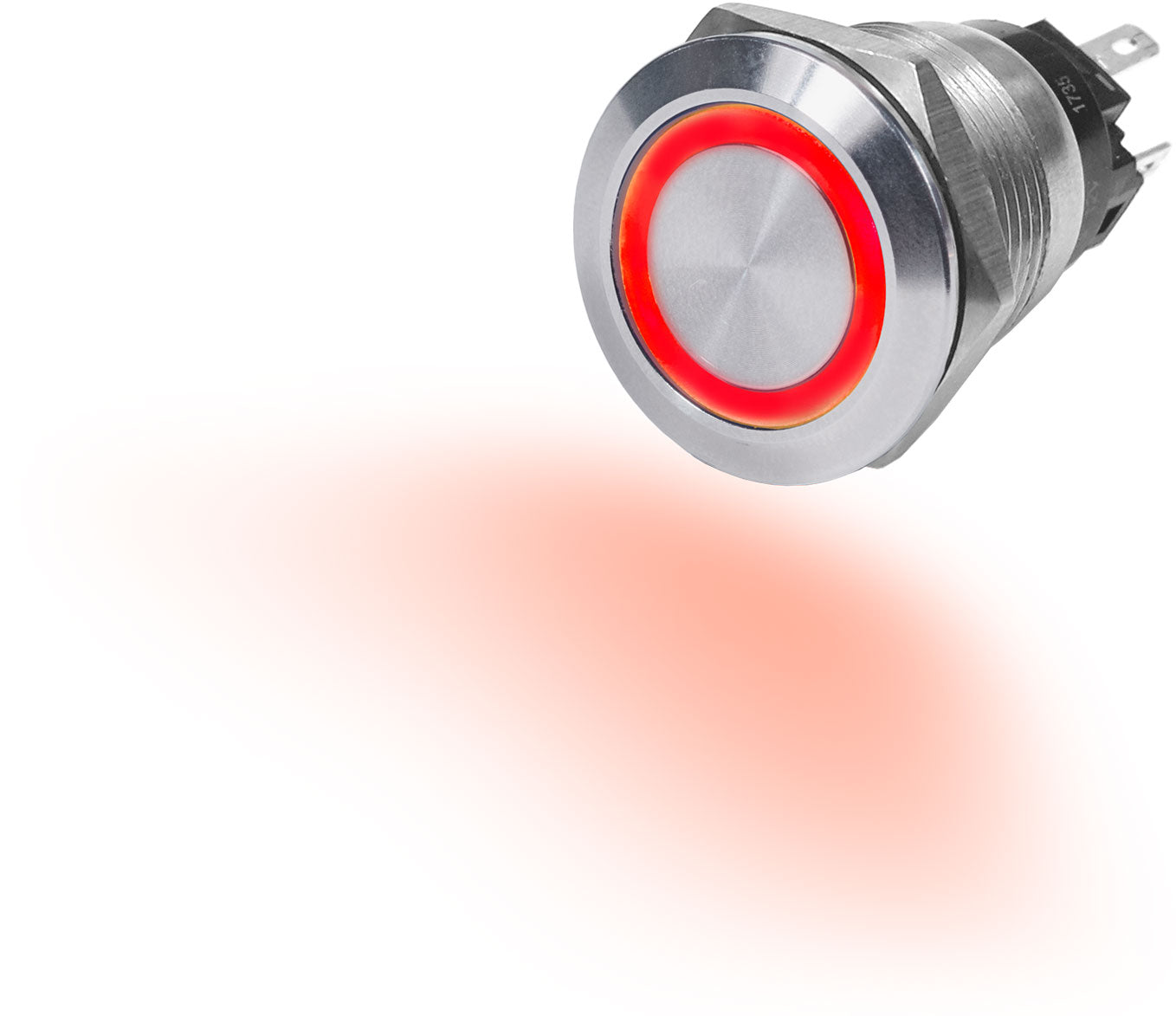

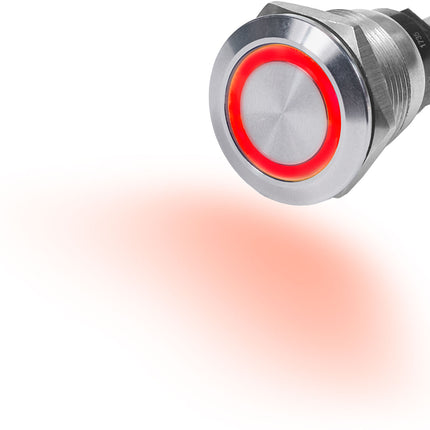

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On

Description

Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On

Model: 4163-BSS
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
Action
OFF-(ON)- Momentary One
Amperage 10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage 12V DC
Maximum LED Operating Current 20mA
Minimum Operating Temperature -10 deg C
Maximum Operating Temperature 70 deg C
Minimum Storage Temperature -55 deg C
Maximum Storage Temperature 85 deg C
Illumination Independent - Separate contacts for LED power
Max Panel Thickness 0.31in (7.87 mm)
Mounting Hole 3⁄4 in (19mm)
Switching Cycles 40,000
Termination 5 - 0.110inch Quick Connect terminals

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On

Product form

$23.65

    Description

    Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On

    Model: 4163-BSS
    • 10A continuous
    • Can be wired for normally open or normally closed
    • Installs with .110inch quick connects (included in retail package)
    Specifications
    Action
    OFF-(ON)- Momentary One
    Amperage 10A @ 12V DC Resistive
    3A @ 12V Inductive
    Nominal Voltage 12V DC
    Maximum LED Operating Current 20mA
    Minimum Operating Temperature -10 deg C
    Maximum Operating Temperature 70 deg C
    Minimum Storage Temperature -55 deg C
    Maximum Storage Temperature 85 deg C
    Illumination Independent - Separate contacts for LED power
    Max Panel Thickness 0.31in (7.87 mm)
    Mounting Hole 3⁄4 in (19mm)
    Switching Cycles 40,000
    Termination 5 - 0.110inch Quick Connect terminals
