Description

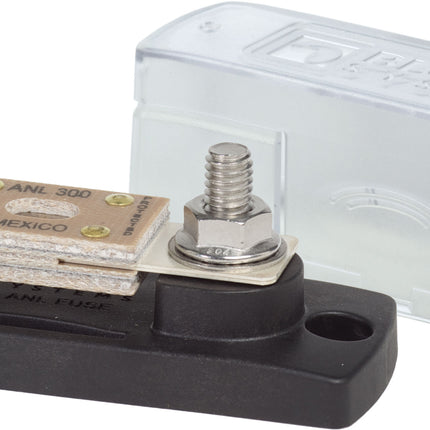

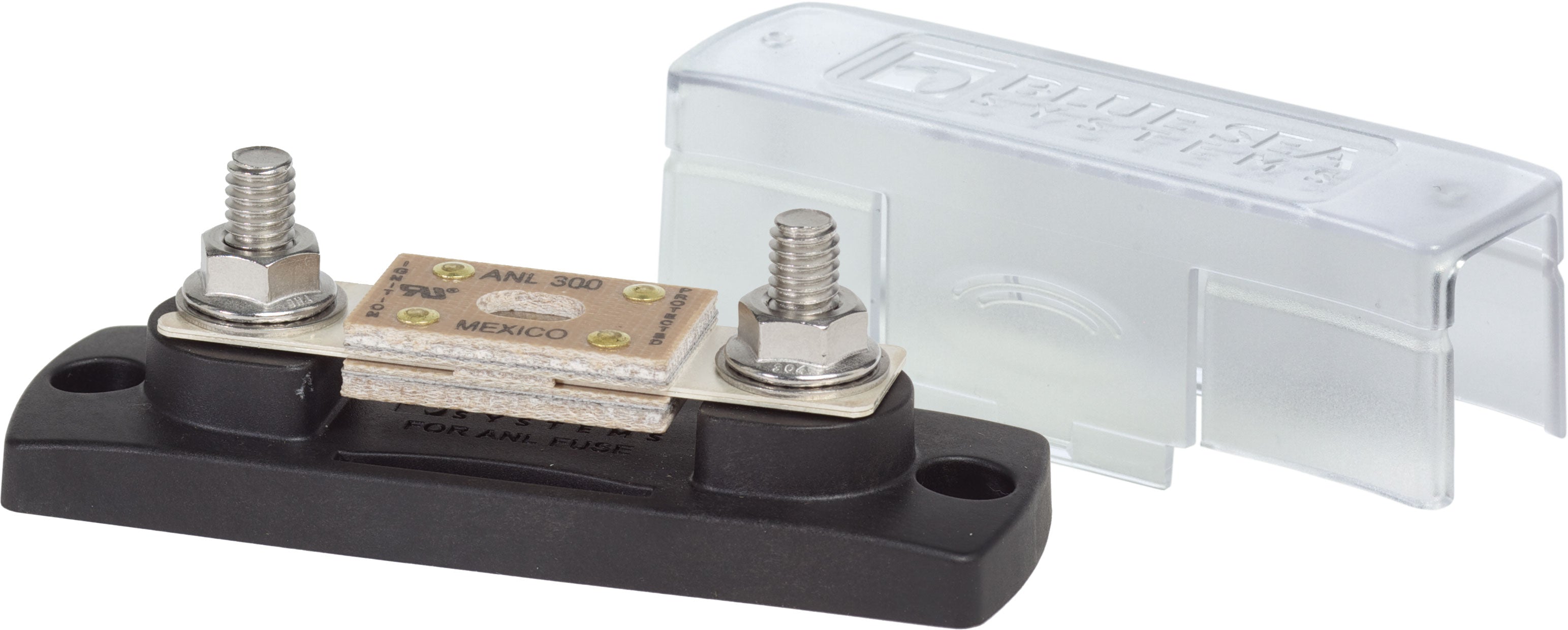

Blue Sea Systems ANL Fuse Block with Insulating Cover - 35 to 300A
Model: 5005-BSS
- Accepts 5/16 (M8) ring terminals
- For use on systems up to 32 Volts DC
- Swing out design allows replacement of the fuse without removing fasteners
- Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
- UL 94-V0 base resists high heat
- Insert molded studs ensure secure fuse mounting
- Insulating cover satisfies ABYC/USCG requirements
- Cover breakouts allow wire access in any direction
- Fuse sold separately
SpecificationsMaximum Voltage| 32V DC |
| Base Material |
Reinforced Polycarbonate |
| Fuse Mounting Blocks |
Tin-Plated Copper |
| Maximum Cable Size |
2/0 AWG |
| Maximum Torque |
110 in-lb (12.43 Nm) |
| Terminal Stud Size |
5/16 in - 18 (M8) |
"
