Description

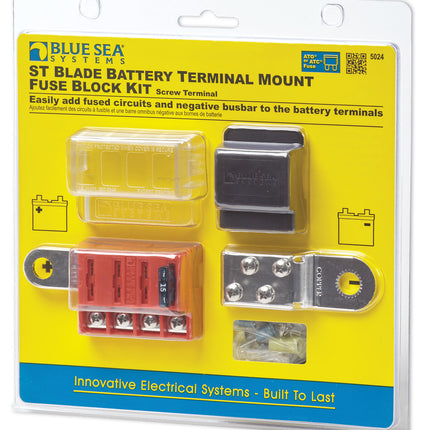

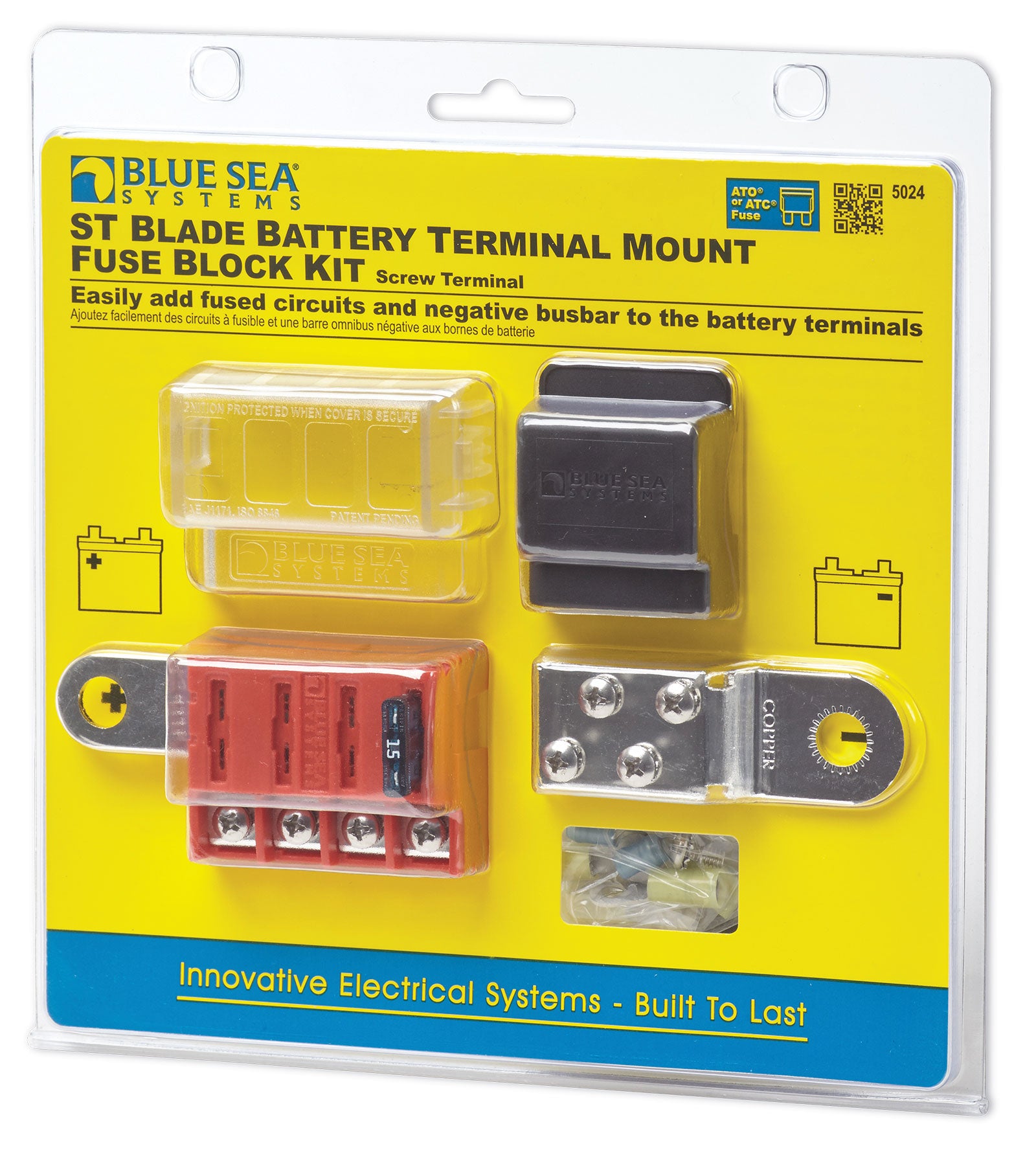

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit
Model: 5024
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Nylon insulated ring terminals included for each screw terminal
- Accepts small format circuit labels
- Insulating cover meets ABYC/USCG insulation requirements
- Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Includes a 4-circuit negative busbar
- Includes write on labels
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
| Circuits |
4 |
| Maximum Amperage |
100A per block
30A per circuit |
| Maximum Voltage |
32V DC |
| Bus Material |
Tin-Plater Copper C11000 |
| Mounting Hole |
3/8" (M10) Stud |
| Screw Terminal Torque |
18 in-lb (2.03 Nm) |
| Screw Terminal Type |
#8-32 |
| Weight |
0.50lb (0.23 kg) |
