Description

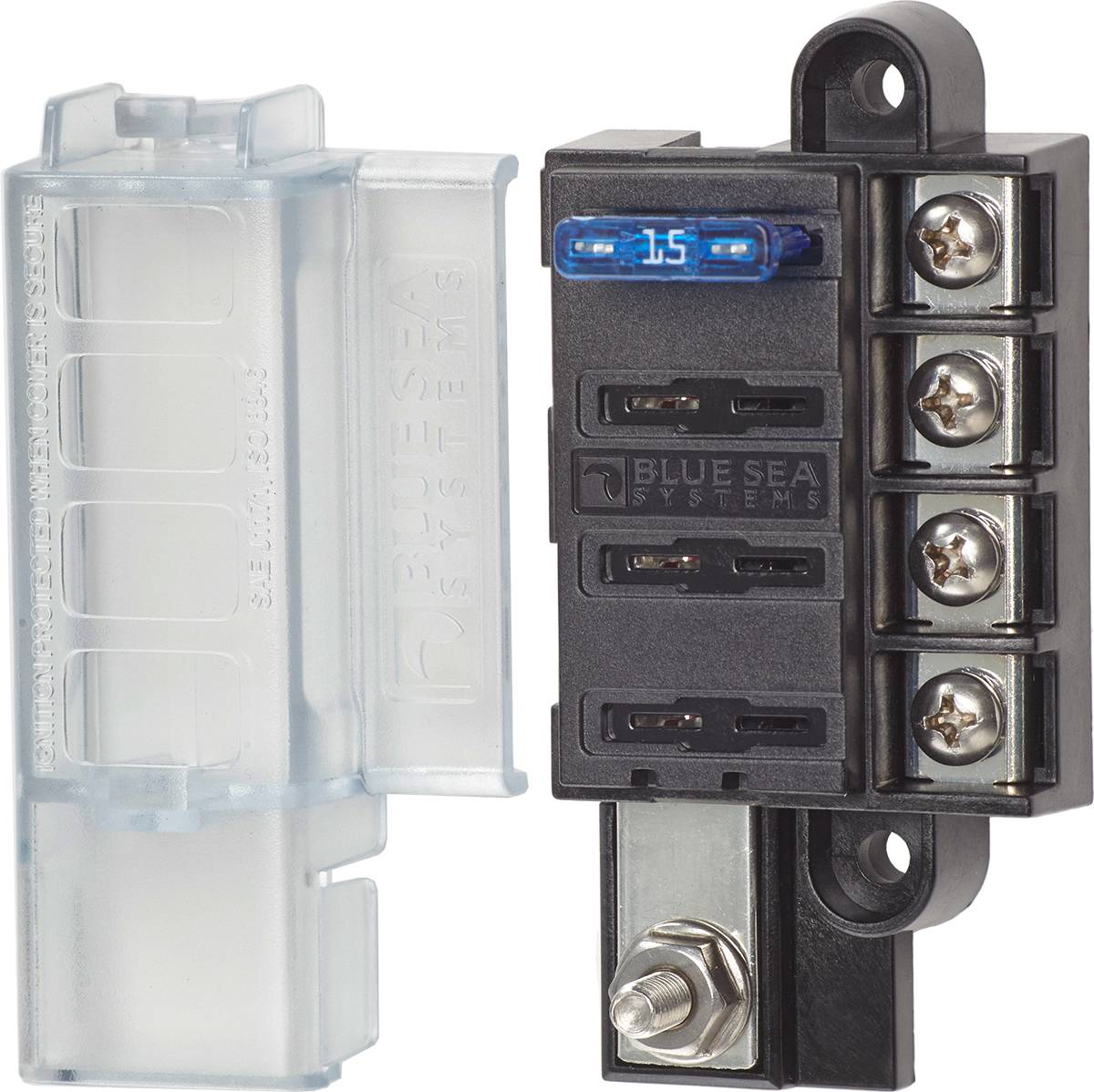

Blue Sea Systems ST Blade Compact Fuse Blocks - 4 Circuits
Model: 5045-BSS
- Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 4 write-on circuit labels
- Fuses sold separately
Specifications
| Circuits |
4 |
| Maximum Amperage |
100A per block
30A per circuit |
| Maximum Voltage |
32V DC |
| Mounting |
#8 Screw (M4) |
| Terminal Stud Torque |
24 in-lb (2.71 Nm) |
| Screw Terminal Torque |
18 in-lb (2.03 Nm) |
| Screw Terminal Type |
#8-32 Scews with captive star lock washer |
| Terminal Stud Size |
#10-32 |
