Description

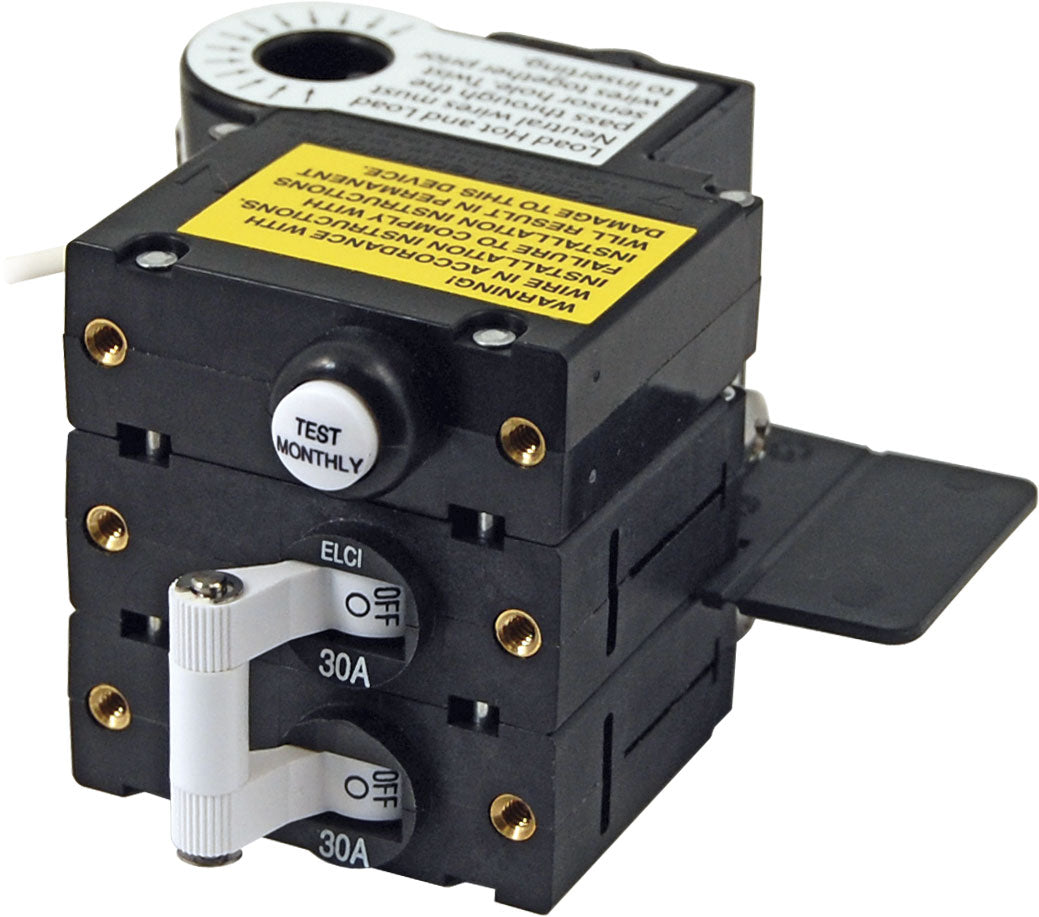

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Model: 3106100-BSS
- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
SpecificationsAmperage| 30A |
| Actuator Style |
Toggle |
| Poles |
2 |
| Ignition Protected |
Yes |
| Maximum Voltage |
240V AC
120V AC per pole |
| Circuit Breaker Type |
Magnetic Hydraulic - trip free |
| nterrupt Capacity |
5000A |
| Minimum Operating Temperature |
-35 deg C |
| Maximum Operating Temperature |
v |
| Leakage Trip Amps |
30mA |
| Mounting Screw |
#6-32 Stainless Steel |
| Mounting Screw Torque |
6 in-lb (0.68 Nm) |
