Description

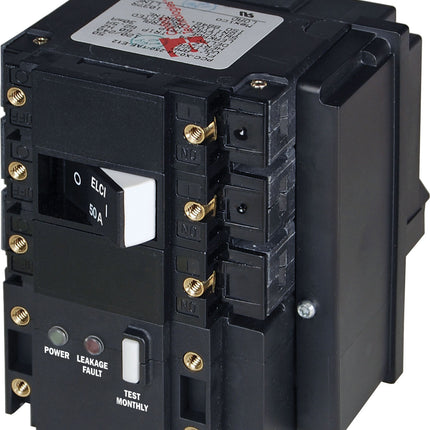

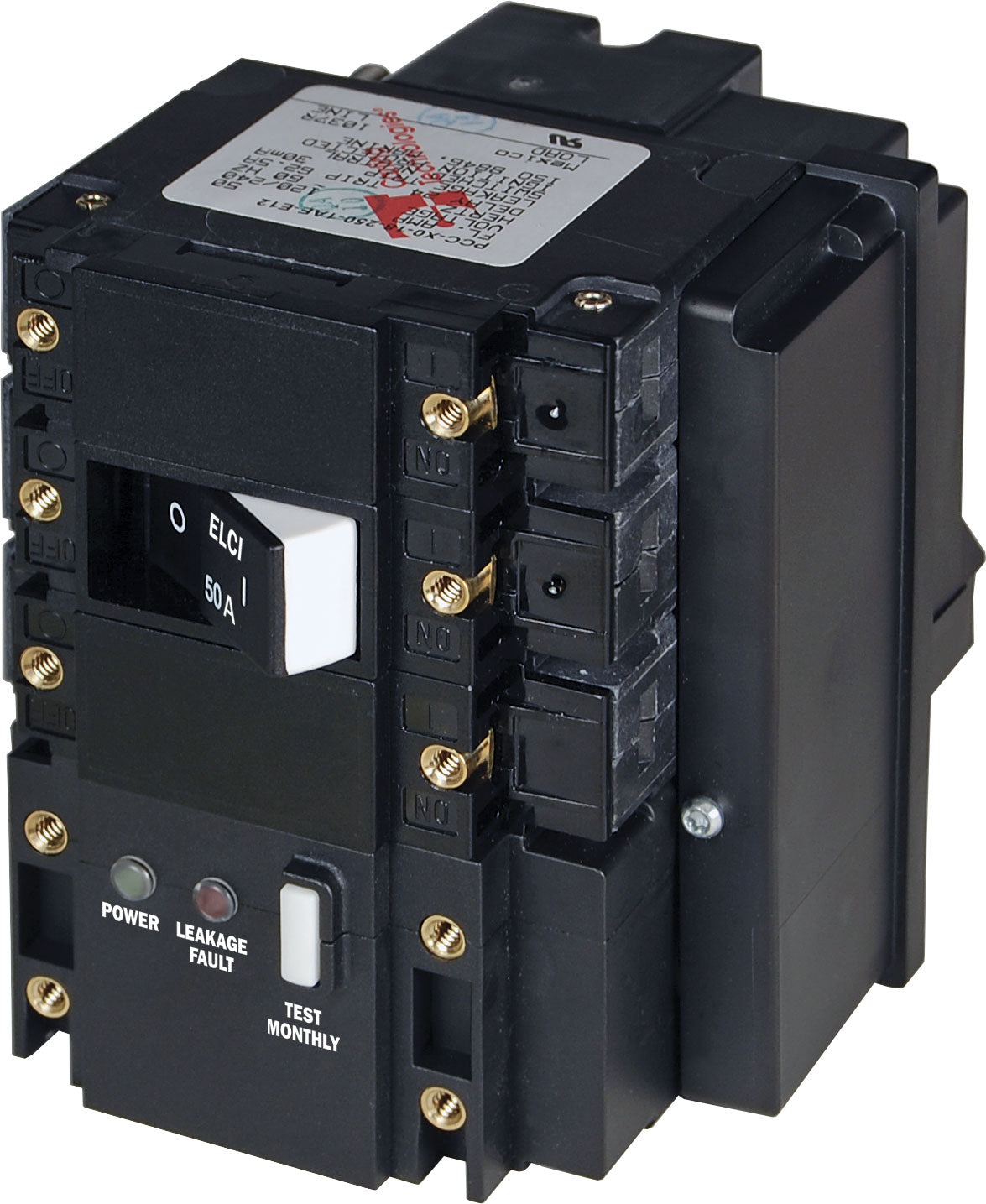

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Model: 3104-BSS
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications
| Amperage |
50A |
| Actuator Style |
Flat Rocker |
| Poles |
3 |
| Ignition Protected |
Yes |
| Maximum Voltage |
120V AC per pole
240V AC per pole |
| Circuit Breaker Type |
Magnetic Hydraulic - trip free |
| Interrupt Capacity |
5000A |
| Minimum Operating Temperature |
-35° C |
| Maximum Operating Temperature |
66° C |
| Leakage Trip Amps |
30mA |
| Mounting Screw |
#6-32 Stainless Steel |
| Mounting Screw Torque |
6 in-lb (0.68 Nm) |
| Switching Cycles |
10000 |
| Weight |
0.85lb (0.39 kg) |
