Description

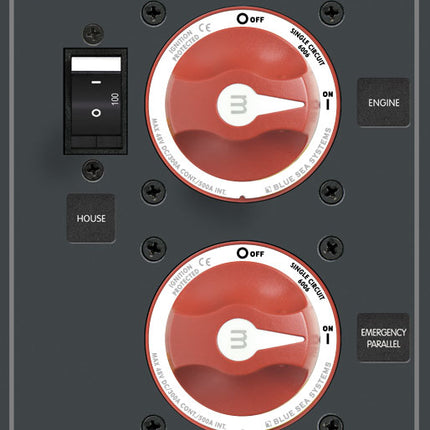

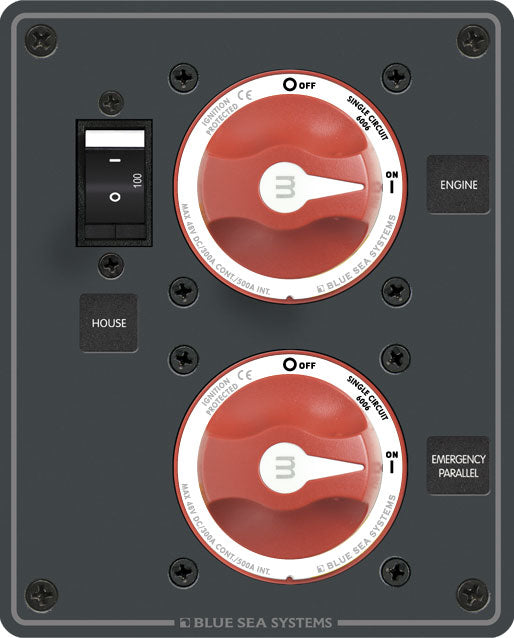

Blue Sea Dual Battery Bank Management Panel
Model: 8080-BSS
- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
SpecificationsMaximum Voltage| 32V DC |
| Continuous Rating |
300A |
| Intermittent Rating |
500A (5 min) |
| Cranking Rating 10 sec |
1500A |
| Cranking Rating 1 min |
775A |
| Height |
6.50in (165.1 mm) |
| Width |
5.25in (133.35 mm) |
| Depth |
3.00in (76.2 mm) |
| Weight |
2.20lb (1 kg) |
