Description

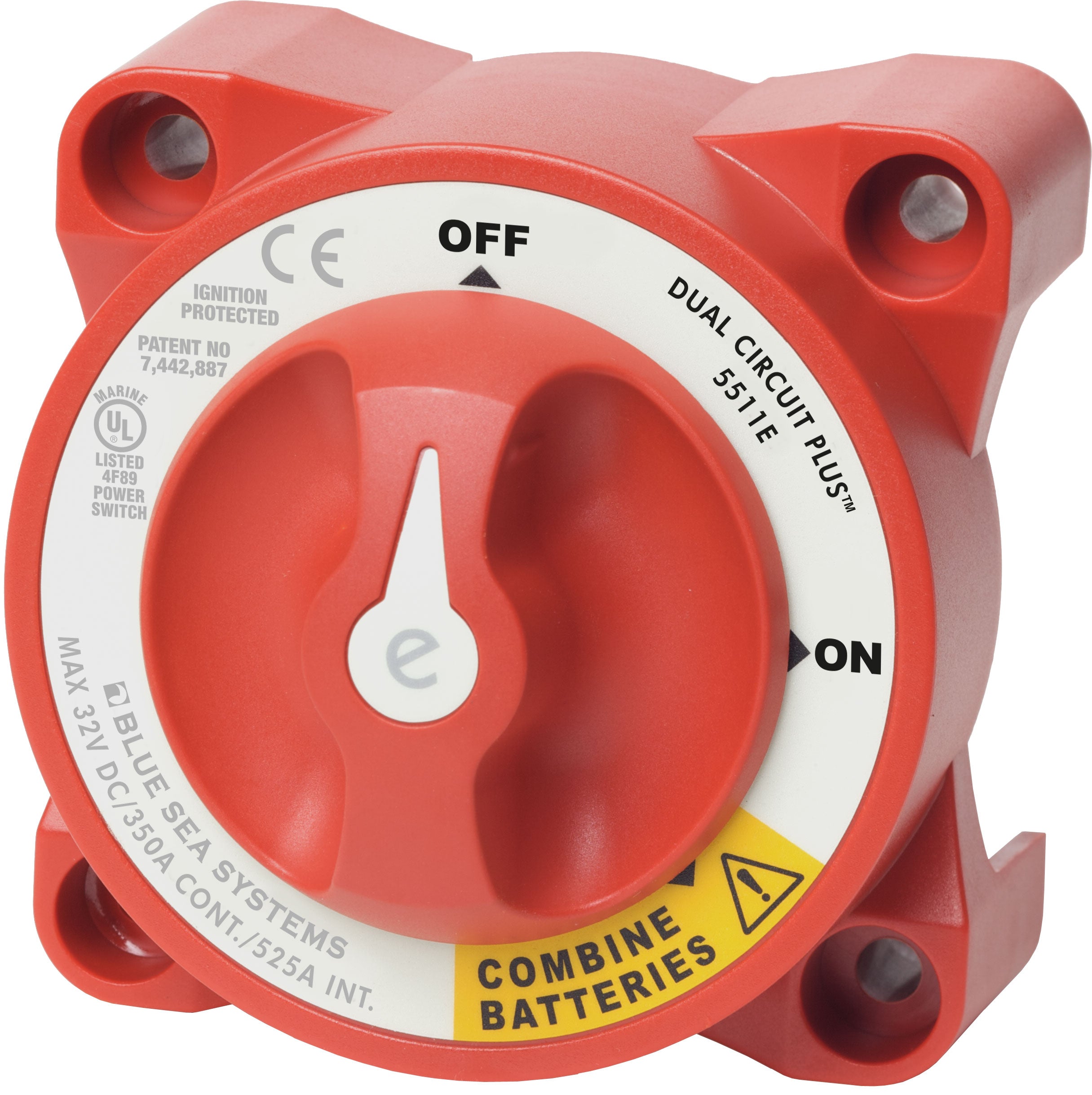

Blue Sea Systems e-Series Dual Circuit Plus™ Battery Switch
Model: 5511E-BSS
- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface or rear panel mounting
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
- Ignition protected—safe for installation aboard gasoline powered boats
- Make-before-break contact design allows switching without power interruption
Simultaneously switches two isolated battery banks or combines battery banks to all loads
Specifications
| Switch Type |
Dual Circuit Plus |
| Color |
Red |
| Switch Positions |
3 |
| Battery Combine |
Yes |
| Alternator Field Disconnect |
No |
| Maximum Voltage |
32V DC |
| Terminal Stud Torque |
140 in-lb (15.82 Nm) |
| Continuous Rating |
350A |
| Intermittent Rating |
525A (5 min) |
| Cranking Rating 30 sec |
700A per circuit |
| Battery Inputs |
2 |
| Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) |
| Cable Size to Meet Ratings |
4/0 AWG (120mm ) |
| Mounting Holes |
Accept 1/4" (M6) Screw |
| Stud Material |
Tinned Copper |
| Terminal Stud Size |
3/8" - 16 (M10) |
