Description

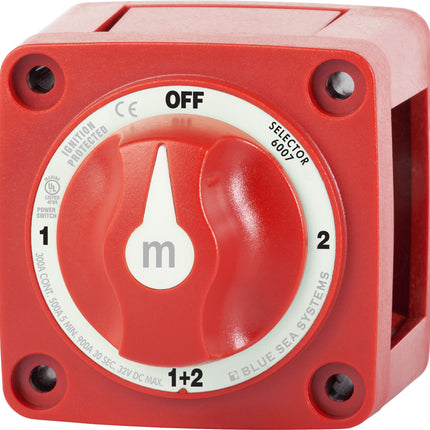

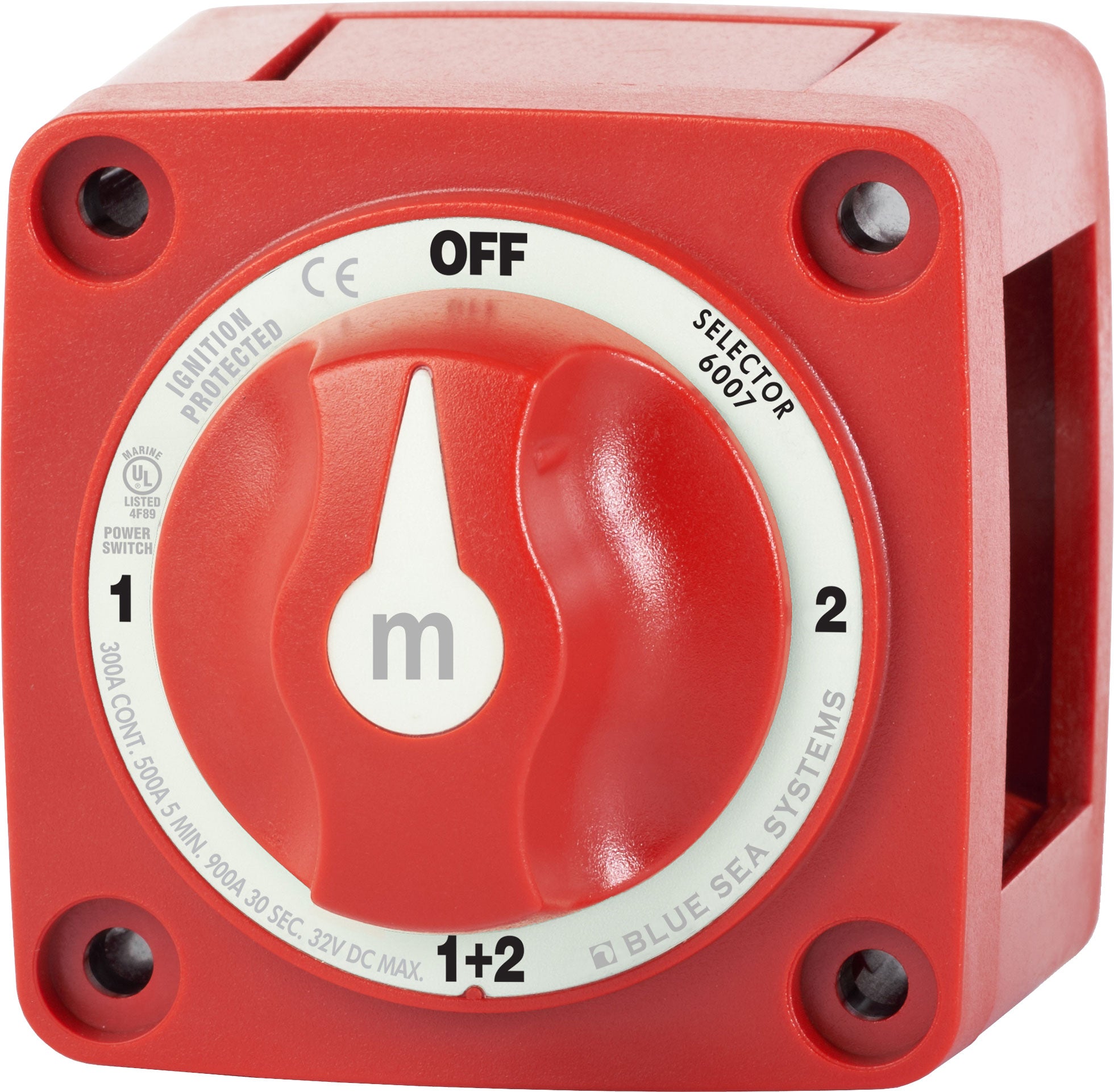

Blue Sea Systems m-Series Mini Selector Battery Switch - Red
Model: 6007-BSS
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected—safe for installation aboard gasoline powered boats
- Make before break contact design allows switching between battery banks without power interruption
Switches isolated battery banks to all loads or combines battery banks to all loads
Specifications
| Switch Type |
Selector 4 Position |
| Color |
Red |
| Switch Positions |
4 |
| Battery Combine |
Yes |
| Alternator Field Disconnect |
No |
| Maximum Voltage |
32vDC |
| Stud Size |
3/8" |
| Terminal Stud Torque |
120 in-lb (13.56 Nm) |
| Continuous Rating |
300A |
| Intermittent Rating |
500A (5 min) |
| Cranking Rating 30 sec |
900A |
| Battery Inputs |
2 |
| Cable Clearance For 4/0 AWG Cables |
1.12in (28.45 mm) |
| Cable Size to Meet Ratings |
4/0 AWG (120mm ) |
| Mounting Holes |
Accept #10 Screw |
| Stud Material |
Tinned Copper |
| Stud Torque |
120 in-lb (13.56 Nm) |
| Terminal Stud Size |
3/8" - 16 (M10) |
