Description

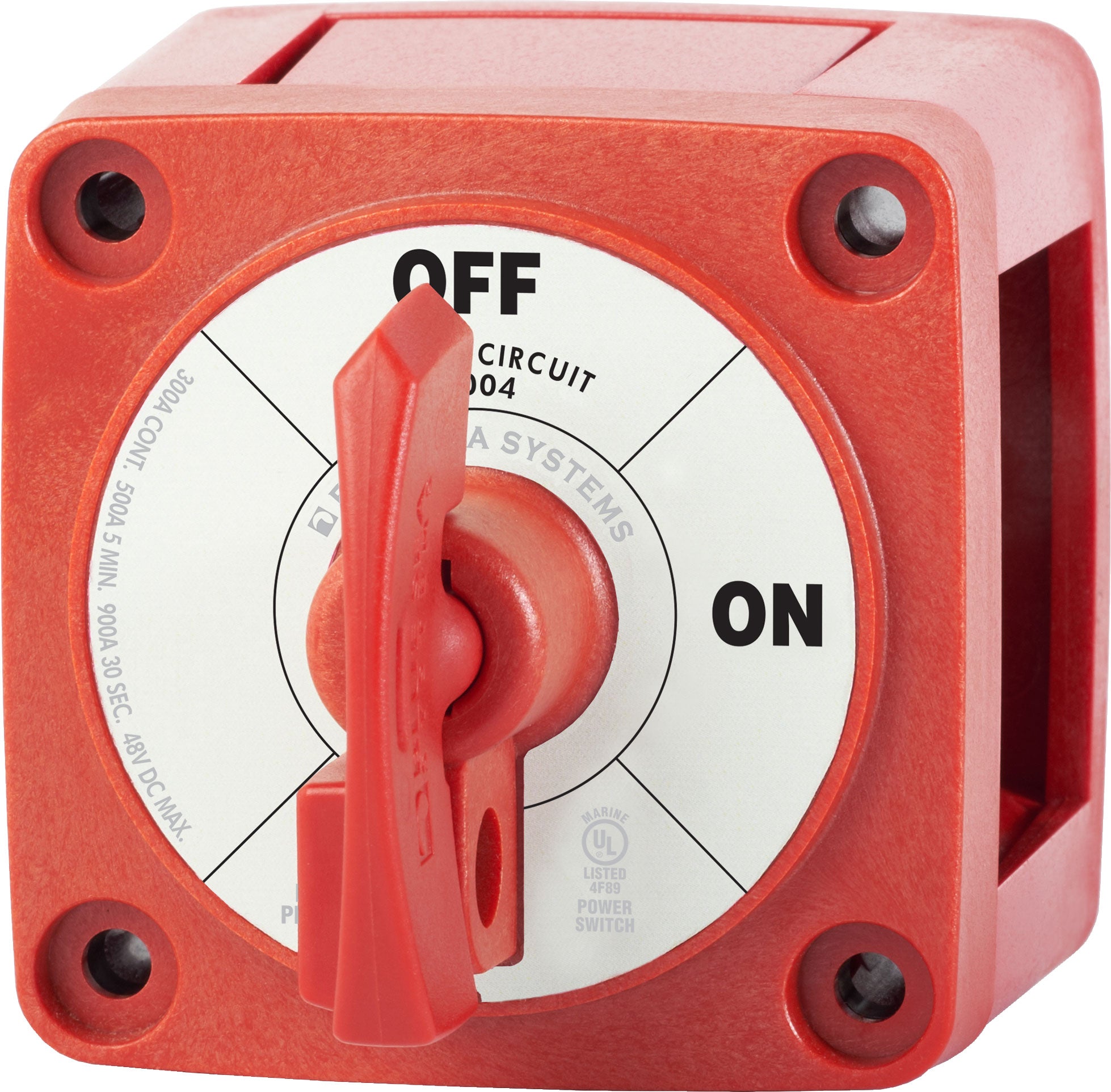

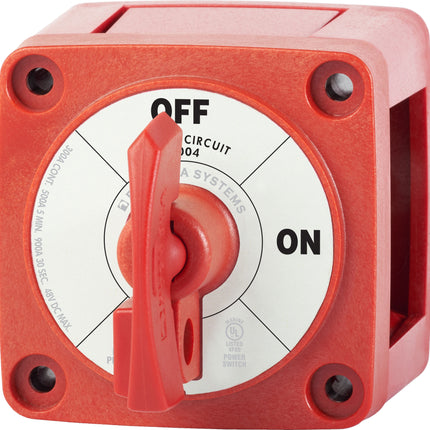

Blue Sea Systems Single Circuit ON-OFF with Locking Key - Red
Model: 6004-BSS
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
300 Amps continuous rating for outboards and small gasoline or diesel engines
Specifications
| Switch Type |
Single Circuit ON-OFF |
| Color |
Red |
| Maximum Voltage |
48V DC |
| Stud Size |
3/8" |
| Continuous Rating |
300A |
| Intermittent Rating |
500A |
| Cranking Rating 30 sec |
900A |
| Stud Material |
Tinned Copper |
| Stud Torque |
120 in-lb (13.56 Nm) |
