Description

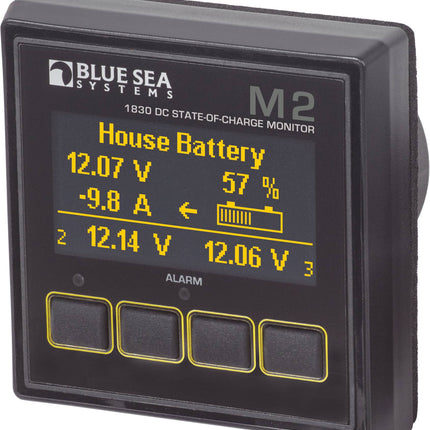

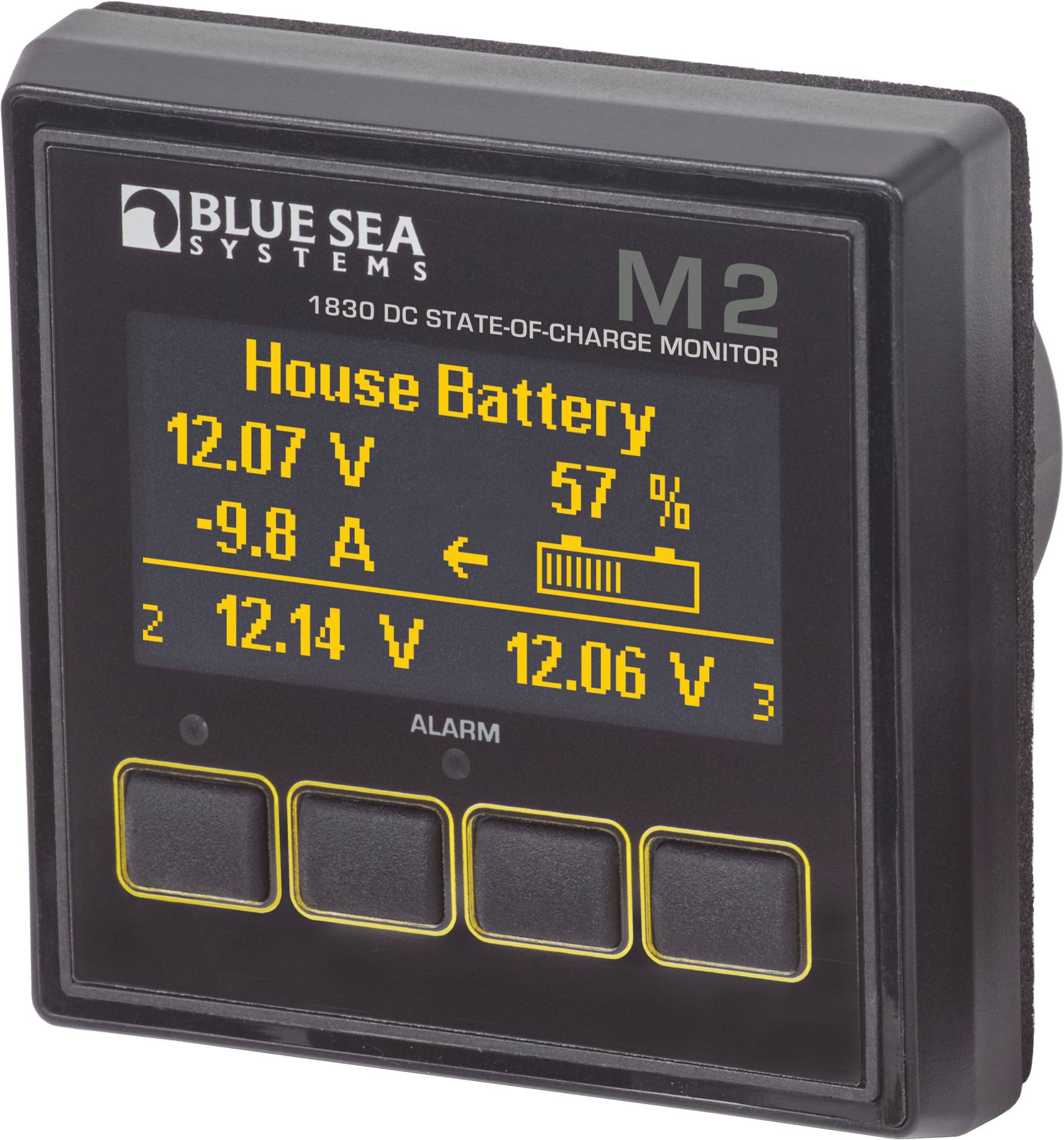

Blue Sea M2 DC Multimeter with State of Charge
Model: 1830-BSS
- Accurately measures and monitors State-of-Charge of 1 bank
- Measures 3 voltages and 1 current
- Supports programmable shunt ratios
- External relay activation
SpecificationsMeter| Current State-of-Charge Voltage |
| Function |
8 to 70V
to 5000A |
| Maximum Voltage |
12V, 24V, 48V |
| Resolution |
0.01V DC |
| Input Voltage |
7-70V DC |
| Alarms |
High Curret
High/Low Voltage
Low Battery |
| Current Range |
-500 to 500A |
| Display Size |
55mm x 28mm |
| Maximum Power Consumption |
1.00 Watt |
| Minimum Power Consumption |
0.3 Watt |
| Voltage Accuracy |
+/- 1.0% |
What's in the Box:
- M2 Head unit
- Surface Mount Cover
- Mounting Ring
- Connector
- Surface mount bezel
- Flush mount bezel
- Mounting nut
- Screwdriver
- Surface mount gasket
- Flush mount clamp
- Shunt #8255
