Description

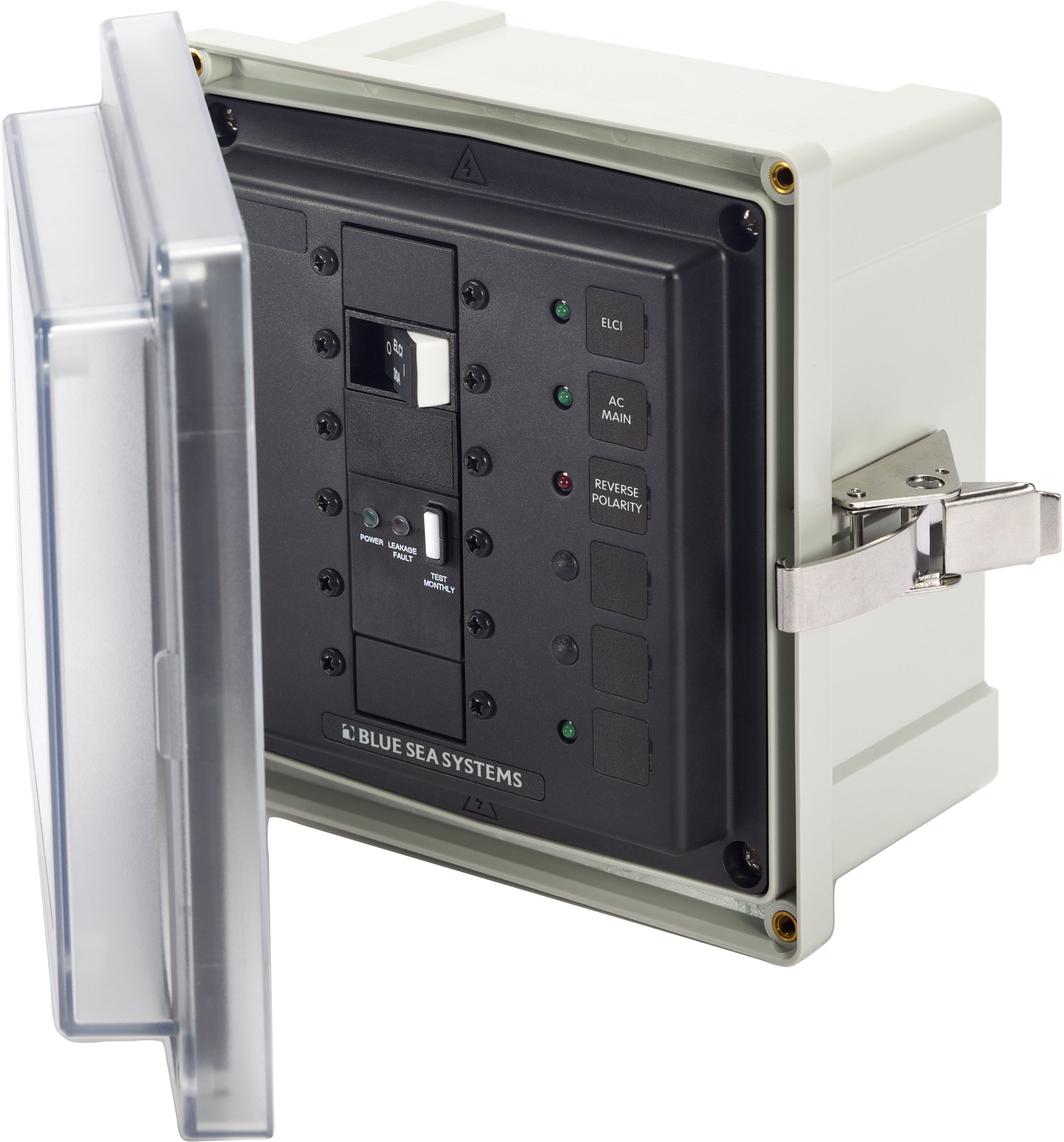

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position
Model: 3119-BSS
- Includes one 120/240V AC / 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling TechnologiesTM A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
SpecificationsMinimum Operating Temperature| -40 deg C |
| Maximum Operating Temperature |
85 deg C |
| Cover Screws and Hardware |
10-32 Stainless Steel |
| Enclosure Size |
6.0 x 6.0 in x 4.0 in |
| Exterior Overall Dimensions |
7.6 in x 7.4 in x 4.7 in |
| Mounting Hardware |
Mounting Hardware |
| Weight |
7.00lb (3.18 kg) |
What's in the Box:
- SMS Panel Enclosure
- ELCI Main 120/240V
