Description

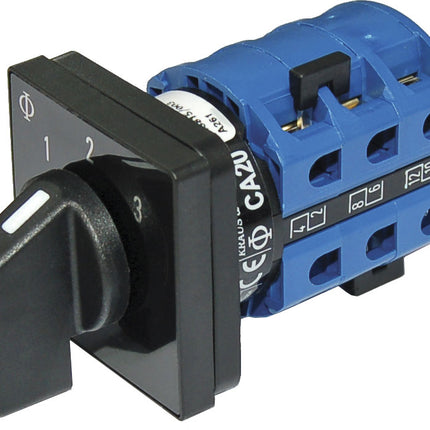

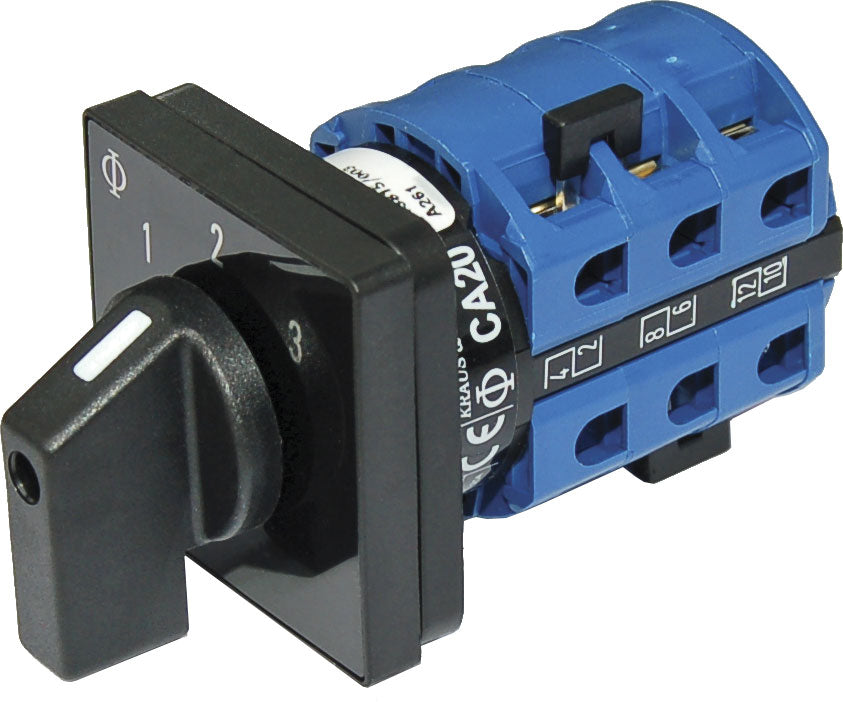

Blue Sea Systems AC Rotary Switch - OFF + 3 Positions 120V AC 30A
Model: 9010-BSS
- Switches 3 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16 (4.00mm) thick
- Mounts in panels up to 0.16 in (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
SpecificationsPositions| 3 + OFF |
| Source Selection |
3 |
| Nominal Voltage |
120v |
| Poles |
2 |
| Load Circuits Out |
1 |
| Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. |
30A |
| Maximum Voltage |
600V AC |
| Source In |
3 |
| Dimensions hxwhd |
1.89in x 1.89in x 2.41in |
"
