Description

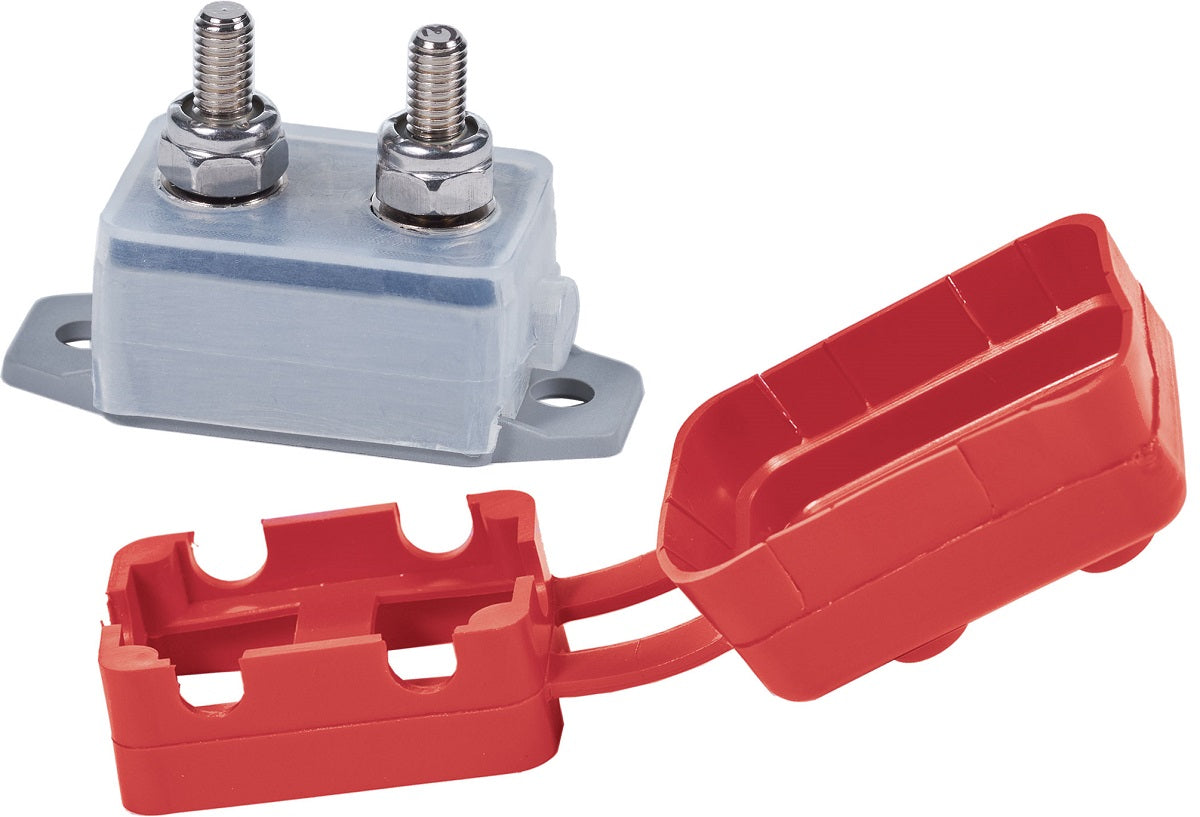

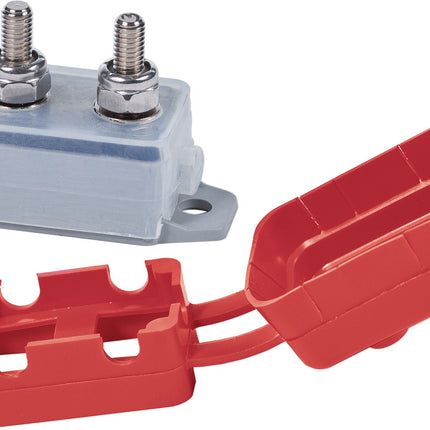

Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 50A
Model: 7157-BSS
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts for secure connections
- Red insulating boot included (retail product only)
SpecificationsAmperage| 50A DC |
| Maximum Voltage |
28vDC |
| Circuit Breaker Type |
Thermal trip, manual reset |
| Terminal Stud |
#10-32 |
| Terminal Stud Torque |
20 in-lb (2.26 Nm) |
| Interrupt Capacity |
2500A @ 28V DC |
| Minimum Operating Temperature |
-10 deg C |
| Maximum Operating Temperature |
60 deg C |
What's in the Box:
- 50A Short Stop Circuit Breaker
- Short Stop Circuit Breaker Boot
