Description

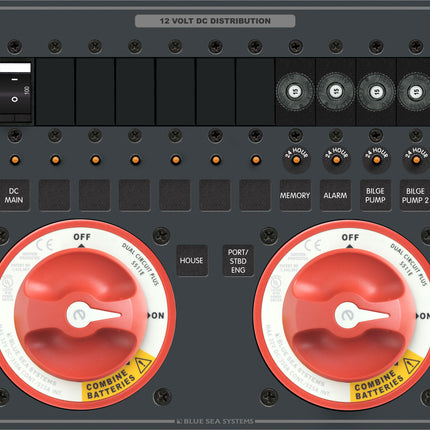

Blue Sea Systems Triple Battery Bank Management Panel
Model: 8693-BSS
- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
SpecificationsPositions| 11 |
| Nominal Voltage |
12V DC, 24V DC |
| Maximum Voltage |
32V DC |
| Continuous Rating |
350A |
| Intermittent Rating |
525A (5 min) |
| Cranking Rating 10 sec |
1000A |
| Cranking Rating 1 min |
750A |
| Height |
8.00in (203.2 mm) |
| Depth |
3.50in (88.9 mm) |
| Weight |
4.42lb (2 kg) |
