Description

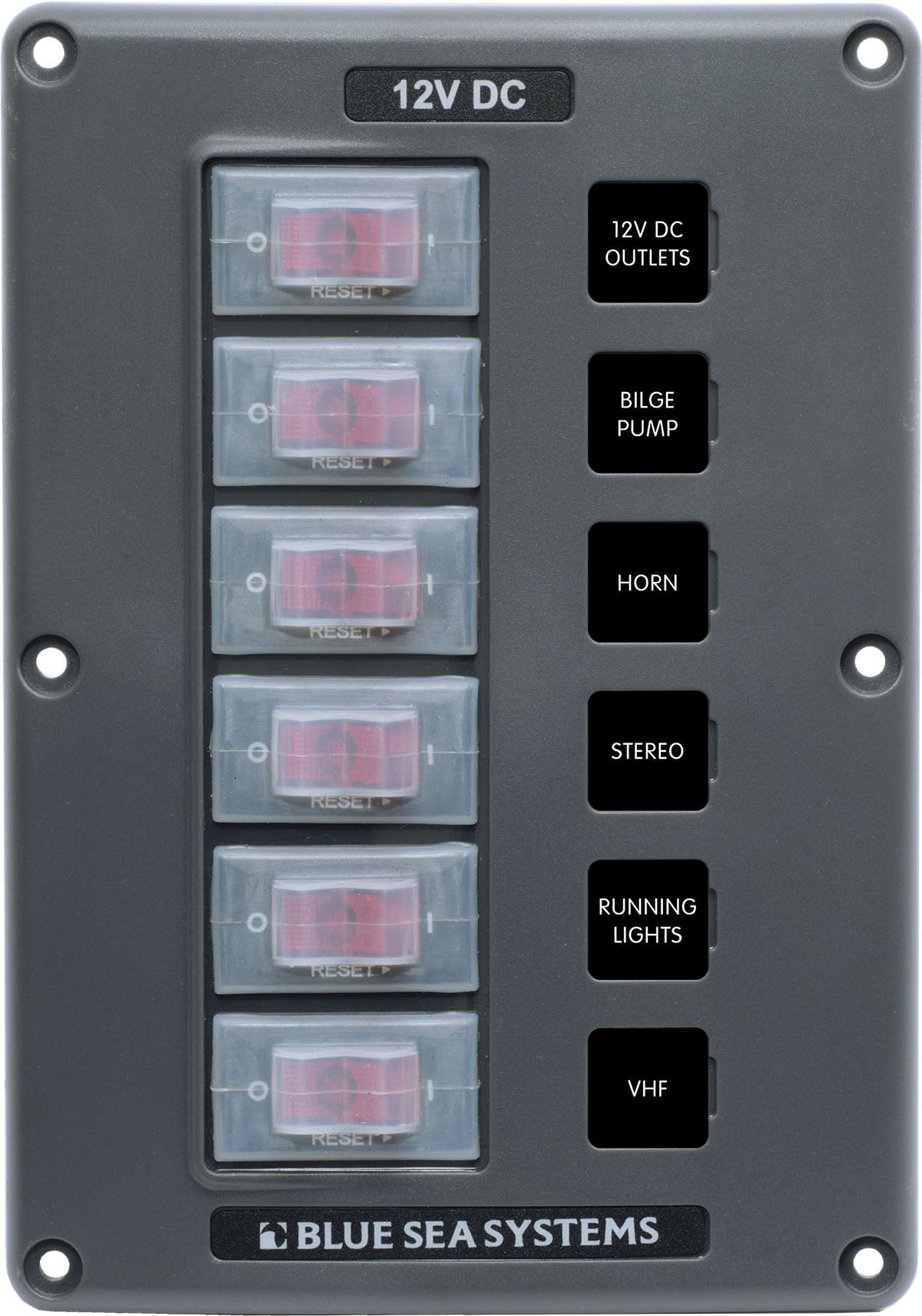

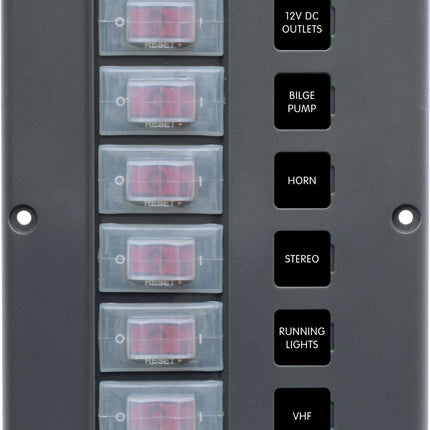

Blue Sea Systems Water-Resistant Circuit Breaker Switch Panel - Gray, 6 Positions
Model: 4322-BSS
- Illuminated 15A circuit breakers provide switching, "ON" indication and overcurrent protection
- Industry-standard sizes and mounting allow these panels to be easily retroftted in an existing application
- Polycarbonate/ABS panel surface is UV-stabilized, ?ame retardant, and will not corrode
- Silicon breaker boots and gasket protects against water ingress
- Low profle makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
SpecificationsColor| Gray |
| Positions |
6 |
| Nominal Voltage |
12V DC |
| Circuit Protection |
Circuit Breaker |
| Maximum Amperage |
45A
9A @ 24V DC (per circuit) |
| Terminal Type |
1/4 Male quick connect |
| Hardware |
Stainless Steel #6 x 5/8 in mounting screws |
| Ring Terminal Size |
M5 (#10) |
| Dimensions |
6.625"H x 4.625"W x 1.75"D |
"
