Description

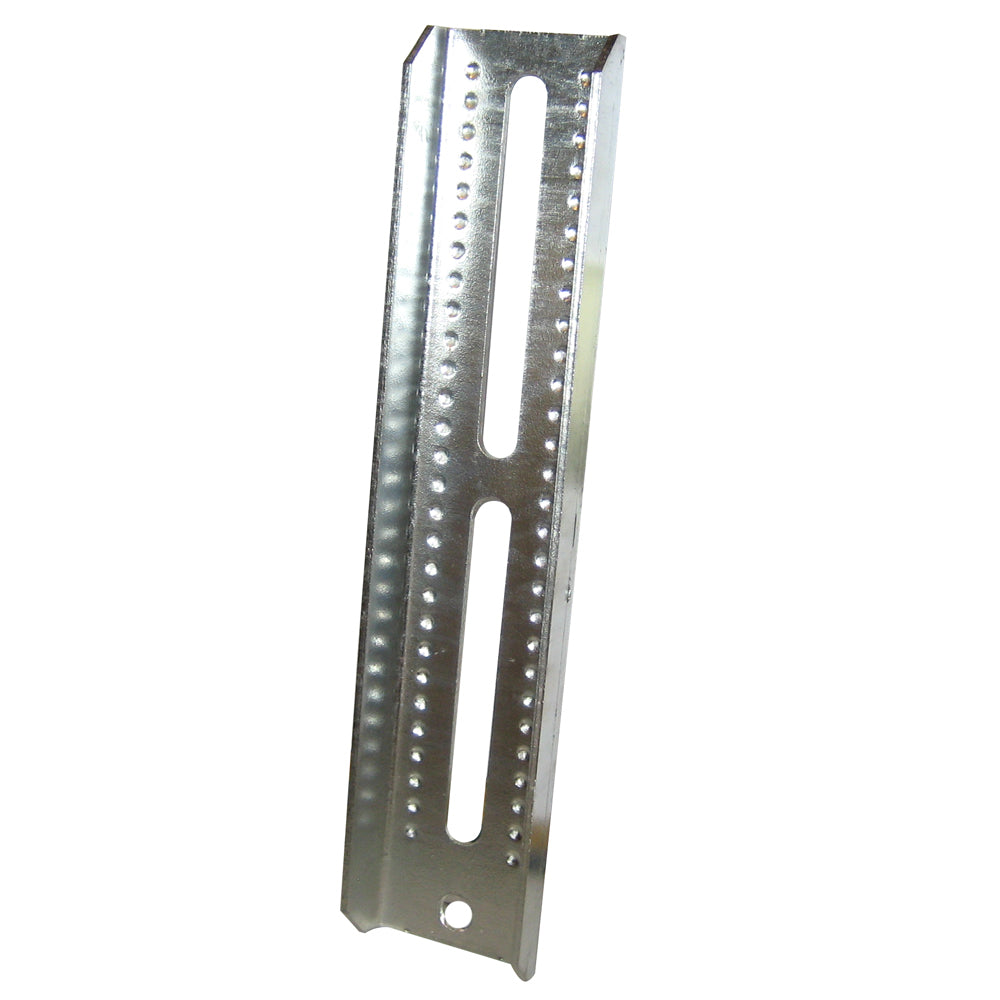

Double Slot Swivel Bolster Bracket Assembly - 12"
C.E. Smith's adjustable bracket is designed to support roller bunks. Hot dip galvanizing for years of use in the harsh marine environment. This bracket assembly uses bolster bracket-10102G and swivel bracket-10200G.
Features:
- Bolster bracket: 12" bracket, 11 gauge material, 2-1/2" wide, slots 1/2" wide, swivel hole 1/2" dia., slots 4-3/4"
- Swivel bracket: 11 gauge material, bunk flange 1-3/8" x 3-1/2", bunk flange holes 3/8" dia., swivel flange 2" tall x 3-1/2", swivel flange hole 1/2" dia., hole centers 2-1/2"
- Overall assembly length is 12"
![C.E. Smith Double Slot Swivel Bolster Bracket Assembly - 12" [10102G40]](http://rebellionmarine.net/cdn/shop/products/57758XL.jpg?v=1656078564)
