Description

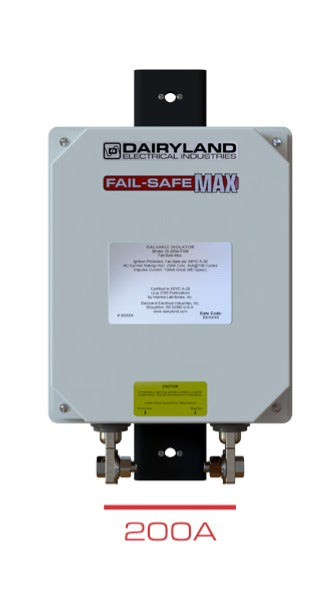

200A
GI-200A-FSM
AC Fault Current Rating
5kA for 198 cycles
KEY FEATURES
• Verified Fail-Safe construction
• Highest AC fault current ratings
• No monitoring system required per ABYC A-28
• Rated for lightning current. No other known galvanic isolators have published lightning current ratings. ADDITIONAL UNIQUE FEATURES
• Ignition protected
• Longest warranties offered in the industry
• Compact design
• Designed for cool operation - no heat sinks needed • Prevents the flow of galvanic current with super imposed AC current well above the 3A minimum required by A-28
• Designed to meet stringent NEC land-based grounding requirements (exceeds marine requirements)
Peak Voltage
All Models: +/- 1.0V
Lightning Surge Current
30A Models: 75kA Peak (4 x 10µs waveform)
All Other Models: 100kA Peak (4 x 10µs waveform)
Certifications
Imanna Labs:
Certified to July 2008 changes to ABYC A-28 (Effective date 2009)
Certified to fail-safe criteria Ignition Protected CE Marine - ISO 8846
