Description

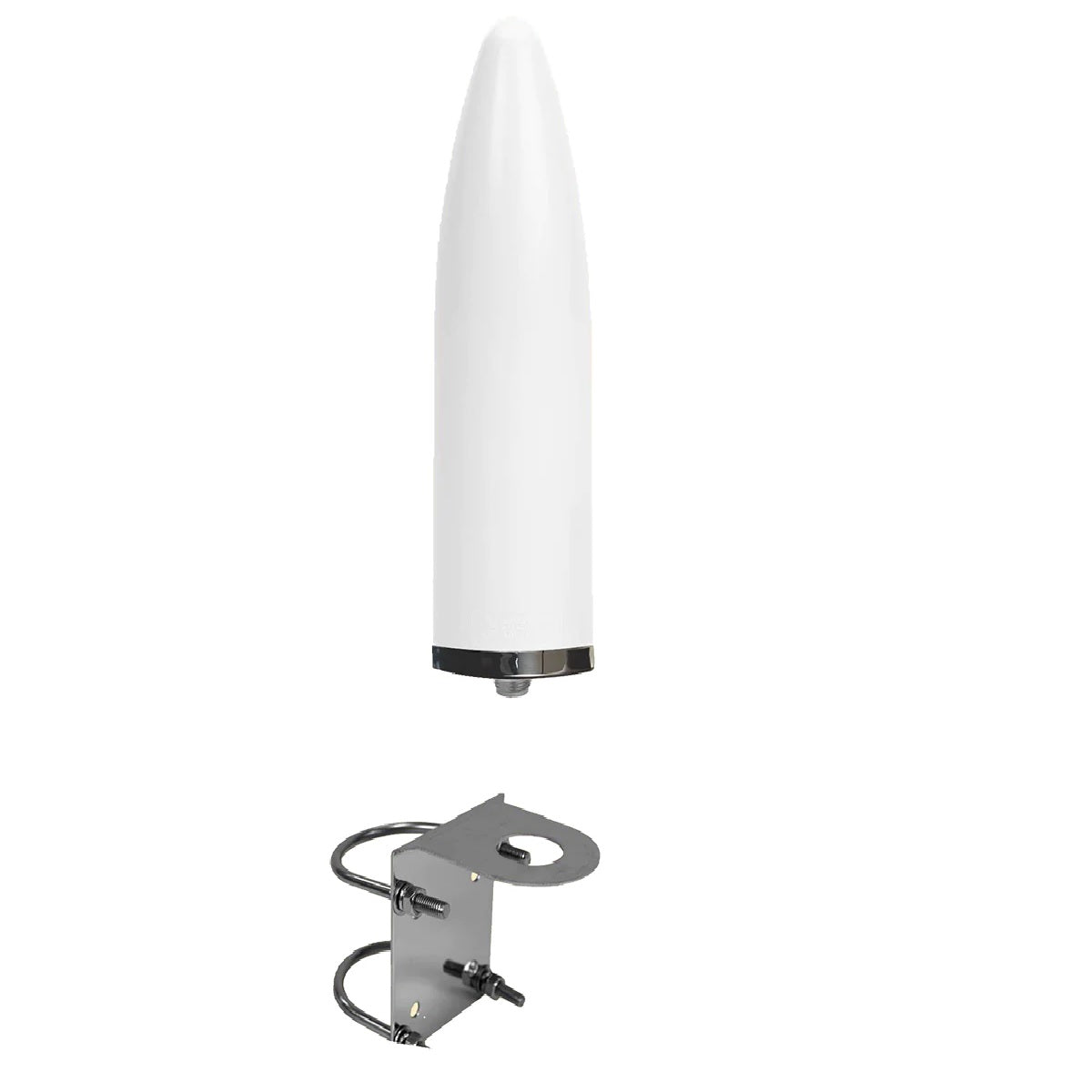

Digital Antenna 1673-PW Omni-Directional 600-3000MHZ 4G/5G/LTE/WiFi Bullet Antenna with L-Bracket
Model: 1673-PW
- Maximum power for 4G, 5G, WiFi signals
- 9dBi omni-directional gain
- Rugged UV stable polyurethane finish
- Foam filled to withstand extreme vibrations
- 316 stainless steel base
- Includes L-Bracket mount
- Weatherproof N female connector
- 5 year warranty
Digital Antenna's NEW omni-directional, bullet shaped antenna with stainless steel base provides excellent performance from 695-3000 MHz and is ideal for mobile or fixed locations.
High gain 9dBi bullet antenna designed and manufactured in USA by Digital Antenna, greatly improves signal strength providing maximum signal range. The new design includes a rugged stainless steel base.
For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways.
Specifications
| Radiation Pattern |
Omni-Directional |
| Bandwidth |
VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ |
| Gain |
9dBi |
| Cable |
Not included |
| Impedance |
50 ohms |
| Max Input Power |
50 watts |
| Exterior Finish |
White polyurethane high gloss UV stable |
| Dimensions |
8.875" L x 2.375" OD (225 x 60 mm |
| Weight |
15 oz |
| RF Connector |
N type female |
| Installation |
Raised Stainless steel deck mount |
| Elements |
Copper - Hand soldered |
| Polarization |
Vertical |
| Wind Rating |
>160KPH |
| Operating Temp |
30 F to +175 F |
What's in the Box:
- 1673-PW Antenna
- L-Bracket mount
