Description

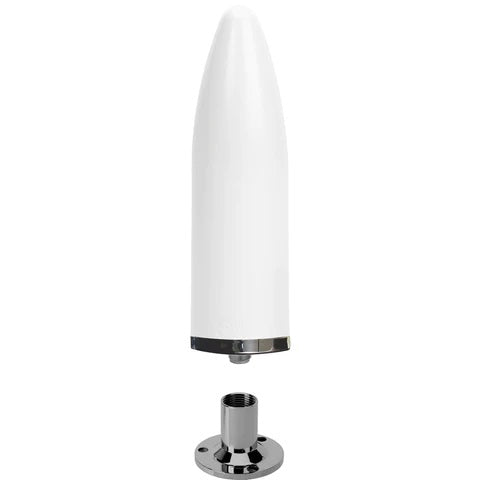

Digital Antenna 1685-PW Wideband Deck Mount Antenna
Model: 1685-PW
- Maximum power for 4G, 5G, WiFi signals
- 9dBi omni-directional gain
- Foam filled to withstand extreme vibrations
- 316 stainless steel base
- Includes Deck Mount
- Weatherproof N female connector
- 5-year warranty
Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.
9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.
For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.
Specifications
| Radiation Pattern |
Omni-Directional |
| Gain |
9dB |
| Bandwidth |
VSWR (3g, 4G, 5G, WiFi) <1.5: 1 = 600-3000 mHZ |
| Cable |
Not included |
| Impedance |
50 ohms |
| Maximum input power |
50 watts |
| RF Connector |
N Type Female |
| Polarization |
Vertical |
| Wind rating |
> 160 KPH |
