Model # 21328539 Mfg # 9610007634

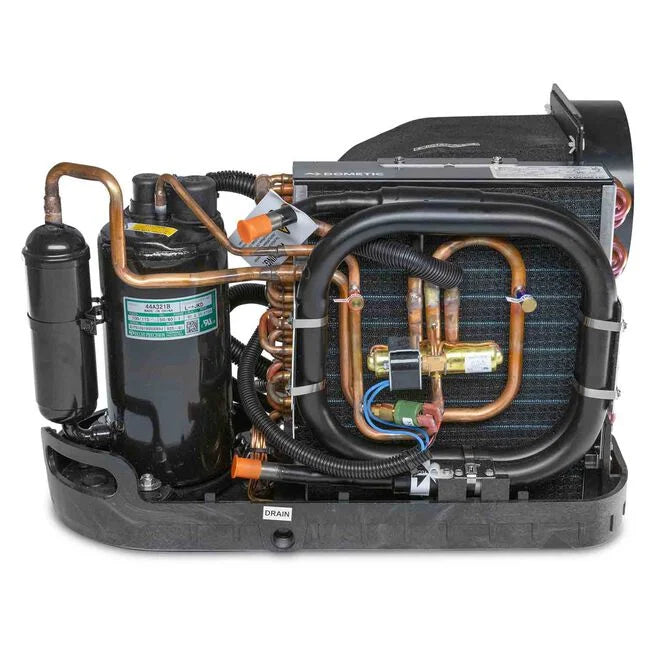

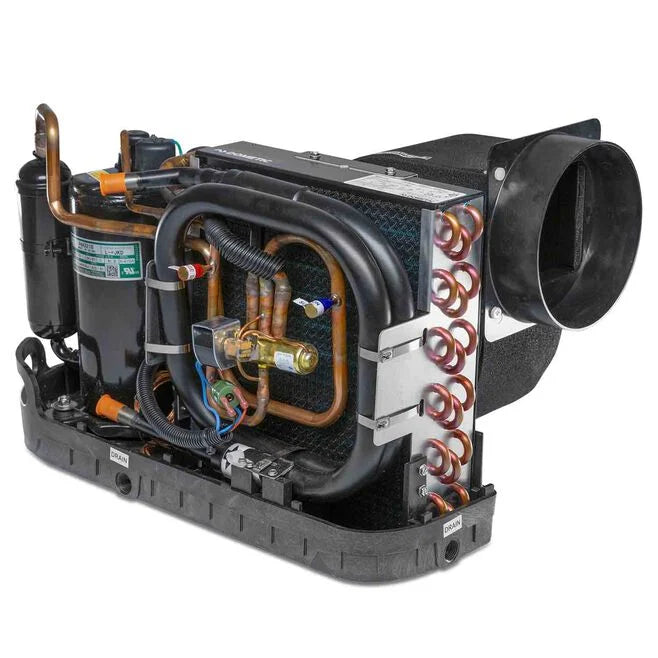

DOMETIC 10000 BTU Air Conditioner EnviroComfort Reverse-Cycle Retrofit Kit, 115V
The Dometic GT Series Air Conditioner is the next-generation evolution of the trusted ECD platform, designed as a direct replacement that builds on a proven foundation with enhanced performance, durability, and installation flexibility. Available in 6,000, 10,000, and 16,000 BTU capacities, the GT Series delivers powerful cooling and efficient reverse-cycle heating for year-round comfort. Upgraded components improve corrosion resistance and airflow flexibility, while thoughtful design enhancements make installation and service easier than ever, resulting in a quieter, more durable system built to perform reliably in demanding marine environments. With next-generation R454B refrigerant, dual-voltage and dual-frequency compatibility, and an included digital display, the GT Series meets today's standards while delivering the dependability Dometic users expect.
Features:
- R454B low GWP refrigerant
- Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
- Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
- Channels in drain pan guide water directly to multiple drain locations, regardless of boat’s heeling angle

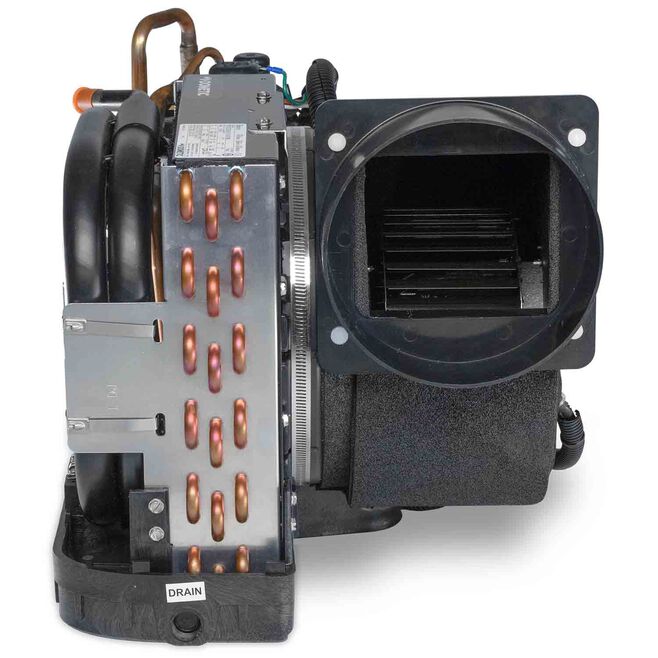

- Rotate the blower up to 270° to find the perfect ducting angle using a single adjustment screw
- Critical components are easily accessible for simplified servicing
- Added VMD display
Quiet Operation
Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.
Rapid Drainage
Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.
Compact Size
GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.
Technical Specifications:
- Capacity (BTU/h) - 10,000
- Voltage (VAC) - 115
- Cycle (Hz) /Phase (Ph) - 60/1
- Full Load Amps (FLA) Cool (A) - 7.1
- Full Load Amps (FLA) Heat (A) - 9.0
- Full Load Amps (FLA) Blower (A) - 1.1
- Locked Rotor Amps (LRA) - 40
- Max. Circuit Breaker (A) - 25
- Min Circuit Ampacity (A) - 16
- CO2 Equivalent - 0.13
- Refrigerant Type - R454B
- Max Height (in/cm) - 12.2/31.0
- Max Width - 20.4/51.8
- Max Depth - 12.4/31.5
- Min. Duct Size Dia. (in/cm) - 6/15.2
- Min. Supply Air Grille (sq in/cm) - 60/387
- Min Return Air Grille (sq in/cm) - 100/645
- Net Weight (lbs/ kg) - 53.0/24.0
- Gross Weight (lbs/ kg) - 62.0/28.1
