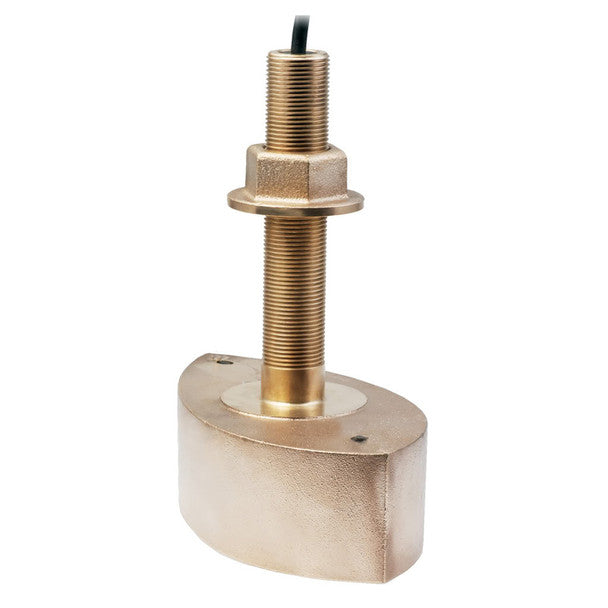

Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull
Model: CB101D600CW
The cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.
The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.
Specifications
| Function |
Depth and Temperature |
| Frequency |
50/200 kHz |
| Mount type |
Thru-hull
fairing block is optional |
| Deadrise |
Max deadrise of 20° with fairing block. |
| Material |
Bronze |
| RMS power |
600 watts |
| Beamwidth |
50kHz 42° -3db
200kHz 11° -3db |
| Depth |
Max @ 50kHz = 1200 ft
Max @ 200kHz = 700 ft |
| Temp sensor |
NTC |
What's in the Box:
