Description

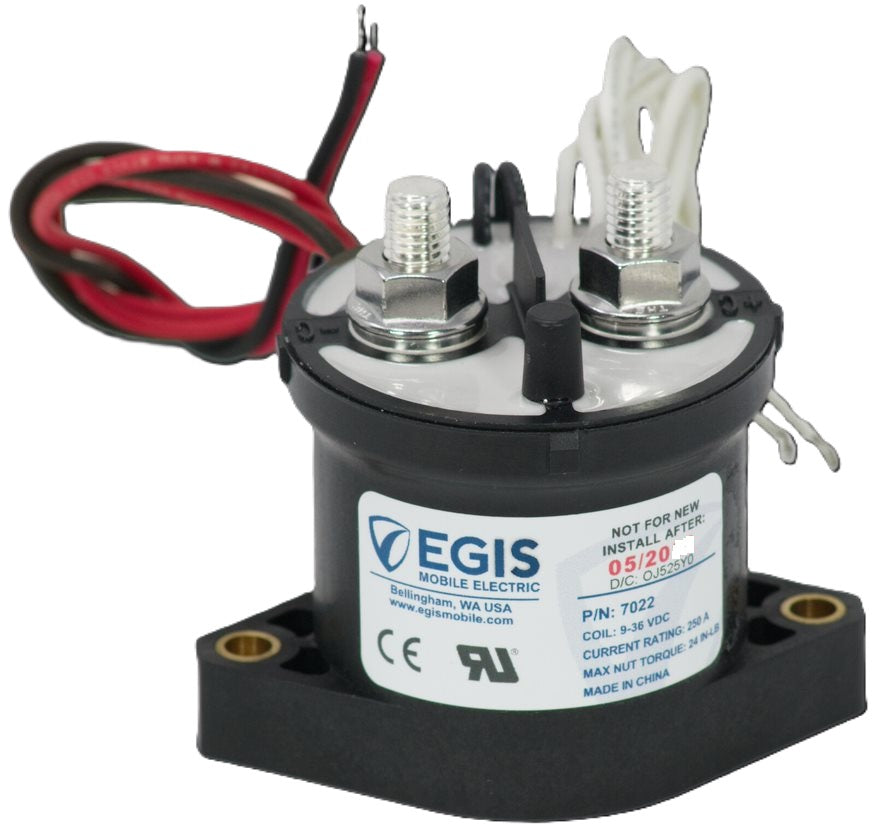

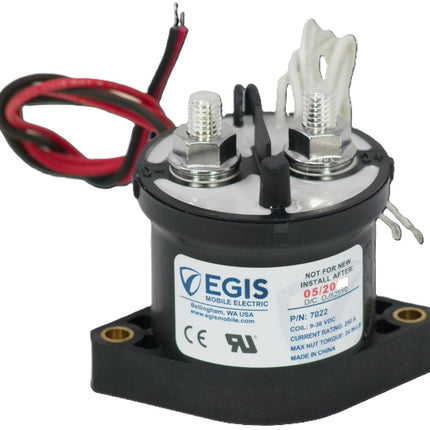

EGIS 250A 12/24v Contactor with Auxiliary Contacts
Model: 7022
- Sealed Enclosure:
Hermetically sealed against dust and moisture penetration. High temp rated for all installation locations.
- 18-8 Stainless Self-Locking Hardware:
Resists corrosion and ensure long term connection reliability with premium hardware.
- Easy Mounting:
Reinforced mounting holes provide secure installation and easy attachment for the installer.
- Remote Status Support:
Optional auxiliary contacts that support remote status indication.
Ignition Protected safe for installation in closed compartments with potential explosive gases
High Electrical Switching Endurance delivers 6,000 cycles at 250A / 450V, 100,000 cycles at 250A / 14V
High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,500 A @ 14 Vdc)
Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.
4 Year Industry Leading Warranty
SpecificationsCONTINUOUS CURRENT (AMPS)| 250/500 |
| OPERATION CONTROL VOLTAGE |
9-36 Vdc |
| INGRESS PROTECTION |
IP67 / IP69K |
| IGNITION PROTECTION |
ISO-8846 / UL 1500 |
| MIN OPERATE TEMP (DEG C) |
-40 |
| MAX OPERATE TEMP (DEG C) |
85 |
