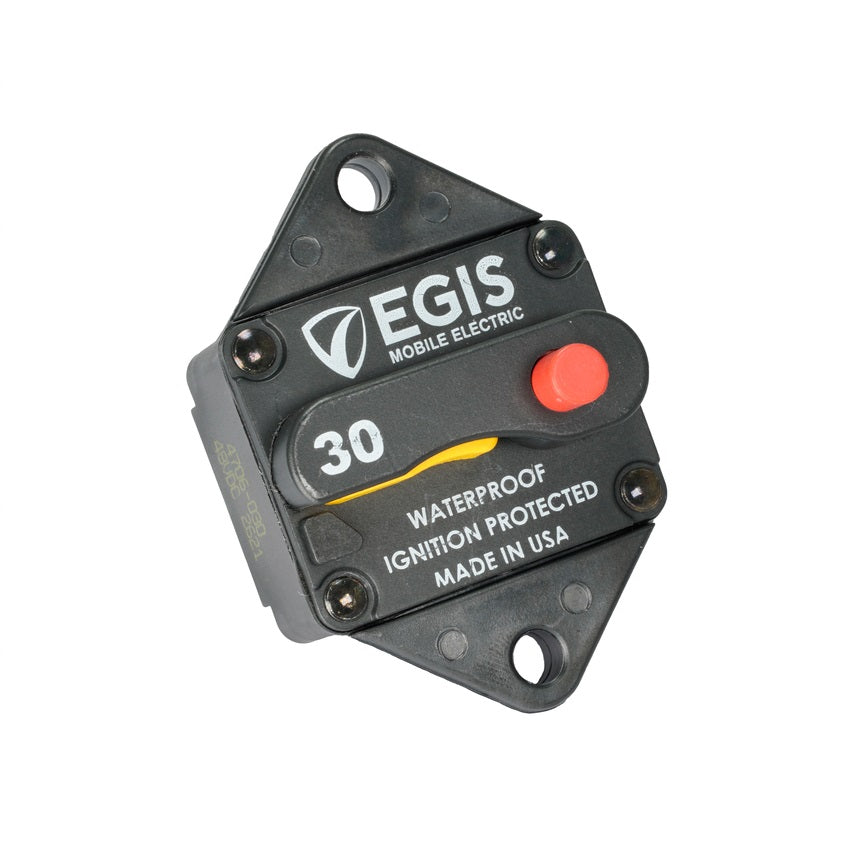

EGIS 285-Series 30 Amp Circuit Breaker Panel Mount
Model: 4706-030
- ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Panel Mount Flange
Provides Rear / Front panel installation options.
- Stainless Steel Hardware / KEPS Locking Nuts
Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
SpecificationsCONTINUOUS
CURRENT (AMPS)| 30 |
| MAX VOLTAGE
(VDC) |
48 |
| CYCLING
ENDURANCE |
6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) |
5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) |
3,000 |
| INGRESS PROTECTION RATING |
IP67 |
