Description

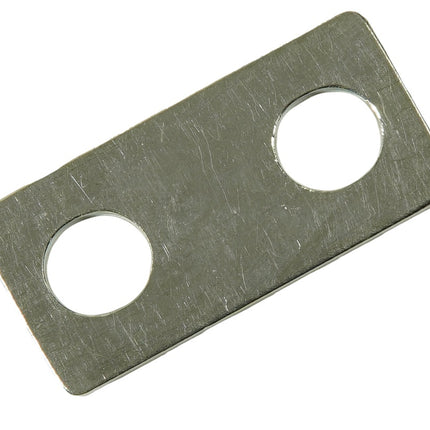

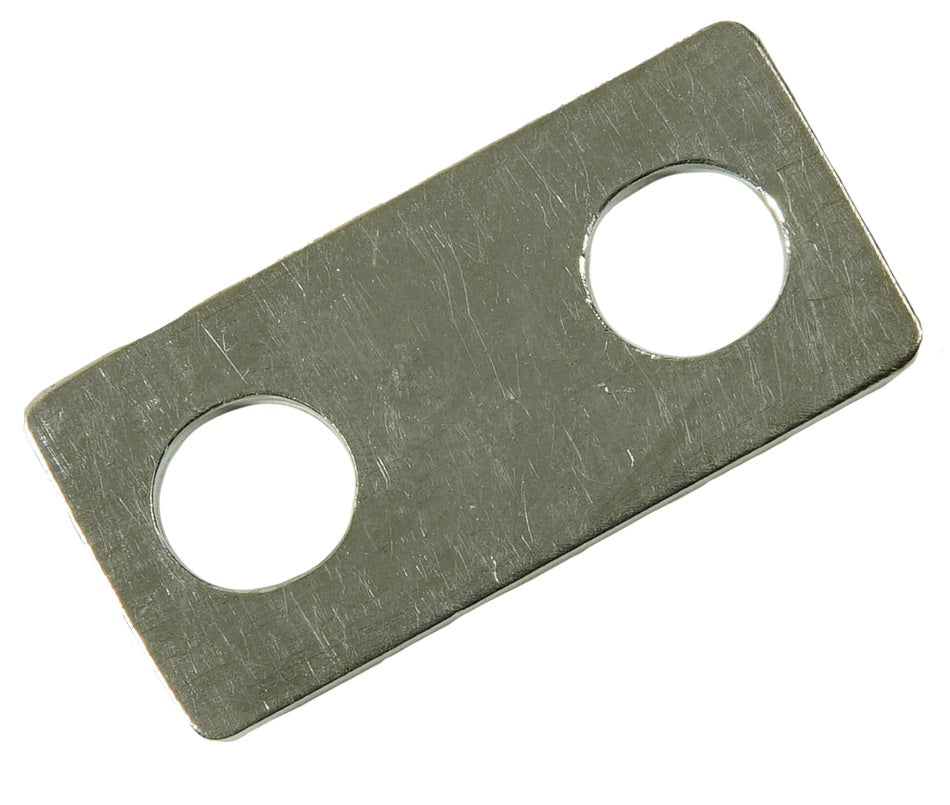

EGIS XD Relay Link Busbar
Model: 8790
Tin Plated Copper to ensure reliable circuit connectivity and anti-corrosive feature keep it last long term.
Link Together XD Single, Dual And Triple XD Relays to each other in multiple configurations and even to our 8700 Mechanical Disconnect. Linking Relays together creates compact installations and allows for robust circuit switch and battery management.
SpecificationsCONTINUOUS CURRENT (AMPS)| 500 |
| MAX VOLTAGE (VDC) |
72 |
| MATERIAL |
Tin Plated Copper |
| SIZE |
47.8mm L x 22.8mm W |
| THICKNESS |
2.8mm (1/8in) |
| Terminal Stud Hole Size |
10.5mm (3/8in) |
