Description

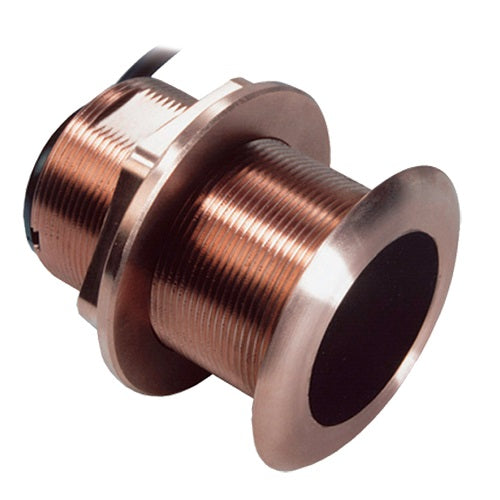

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin
Model: 520T-BLD
- depth and temperature
- 600 W
- 50 kHz with a wide 45 deg beamwidth for performance to 353 m (1,200 feet)
- 200 kHz with a 12 deg beamwidth for performance to 206 m (700 feet)
- Right-angle cable exit saves space and protects transducer if stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Low-profile, bronze housing has minimal drag
- Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
- 30 Foot Cable with 10-Pin Connector
SpecificationsWeight| 0.9 kg (2.0 lb.) |
| Recommended Boat Length |
Up to 8 m (25 feet) |
| Hull Material |
Fiberglass or wood |
| Hull Deadrise |
Best performance through 7 deg. Can accommodate up to a 12 deg. |
| Acoustic Window |
Urethane |
| Hole Diameter |
51 mm (2) |
"
