Description

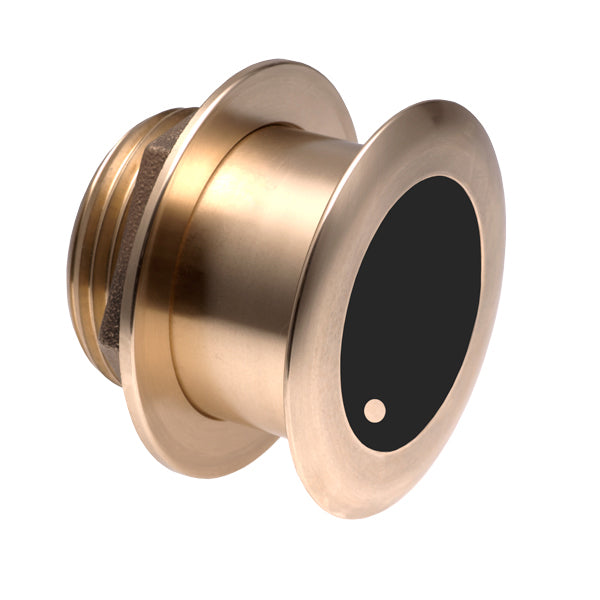

Garmin B175CHW 20Deg Tlilted Element Bronze Thru-Hull with 8-Pin
Model: 010-12181-22
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.
SpecificationsCable length| 39 ft |
| Depth/Temperature |
Yes |
| Power |
1kW |
| Frequency |
150-250 kHz |
| Supported deadrise/Transom angles |
16 deg-24 deg degree deadrise |
| Maximum depth |
600 ft. |
| Number of pins |
8-pin |
| Beamwidth |
25 deg |
