Description

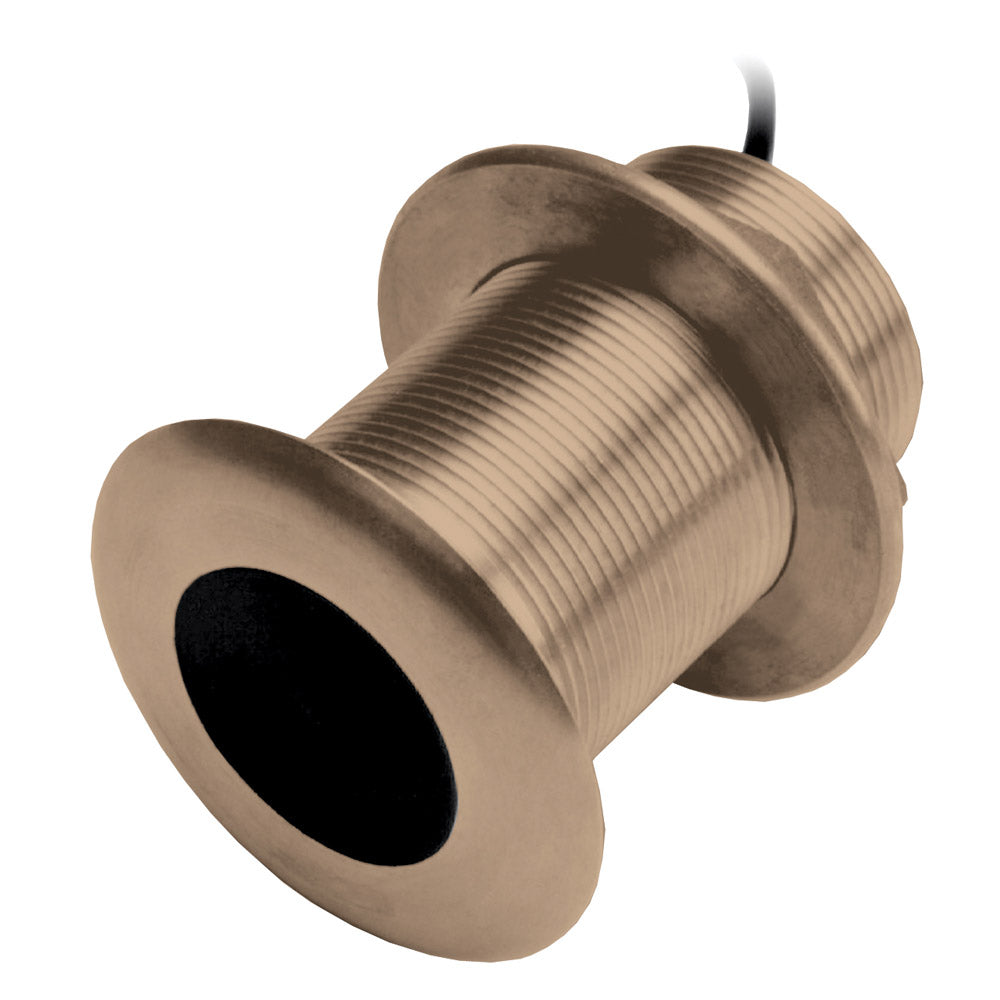

Airmar B75H
w/20° Tilt
600W
Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth - 800'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Mounting Style: Thru-Hull
- Chirp: High
- Cable Length (Feet): 39'
- Imagining: Standard
- Box Dimensions: 5"H x 8"W x 12"L WT: 6.1 lbs
- UPC: 753759971984
Owner's Manual (pdf)Brochure (pdf)
