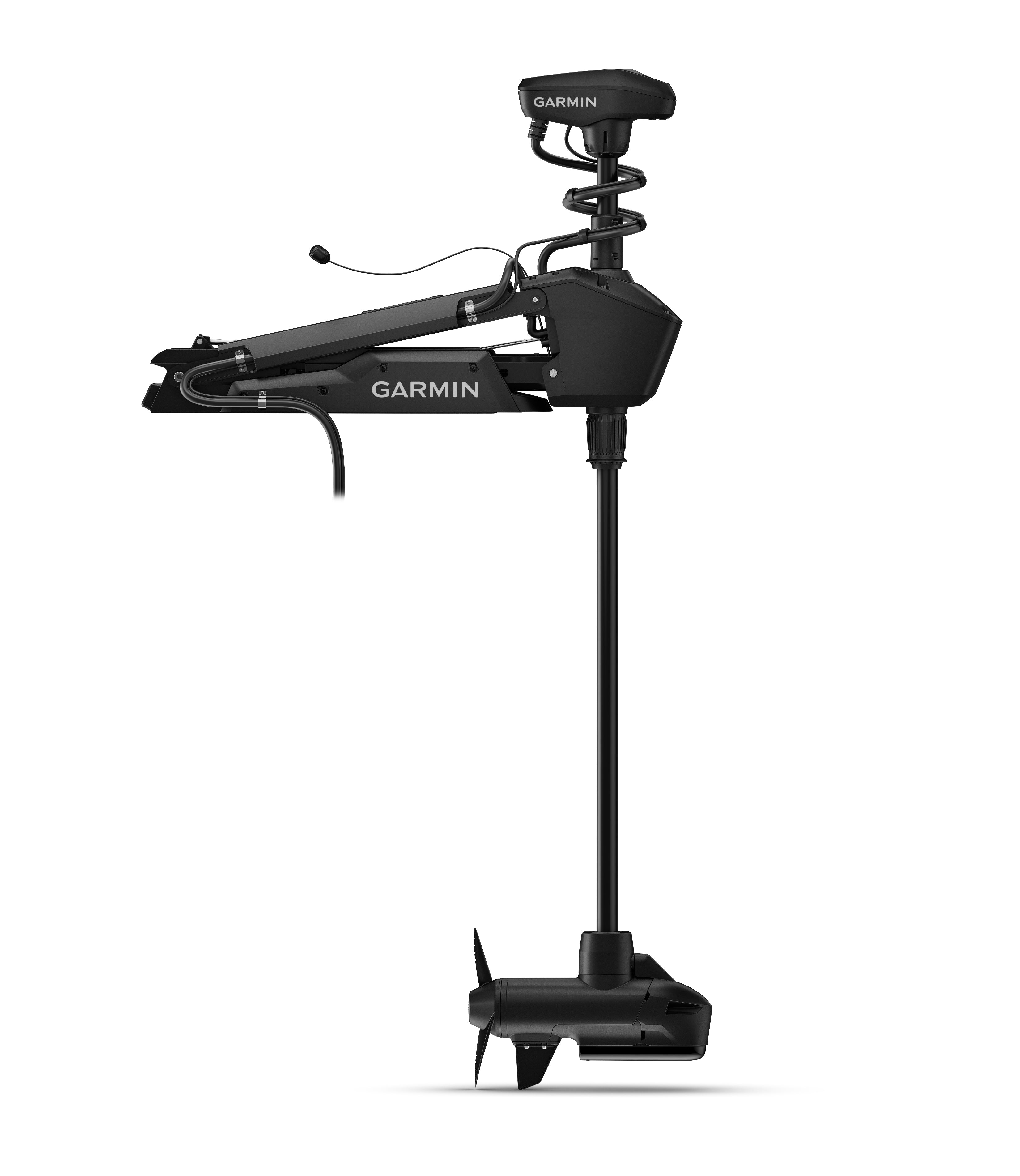

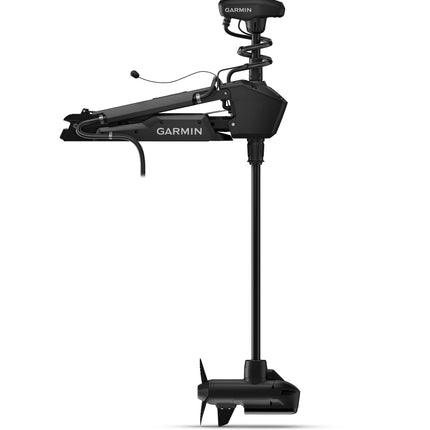

Fish with force with Force® Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50" or 57" shaft lengths, it’s designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you’ve found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you’re headed.
| General |
| Color |
Black |
| For use in |
freshwater, brackish water and saltwater |
| Mount style |
scissor-style mount |
| Max thrust |
100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| Voltage |
24 V or 36 V |
| Electric steering |
Yes |
| Lift-assist |
dual gas springs |
| Built-in heading sensor |
Yes |
| Built-in GPS |
Yes (dual frequency GPS) |
| Warranty |
3-year, limited lifetime on shaft |
| Water rating |
IPX7 |
| Mounting location |
Bow |
| Wireless remote |
Yes (included) |
| Foot pedal compatible |
Yes (included) |
| Battery indicator |
Yes |
| Variable speed control |
Yes (20 steps) |
| Lighted direction indicator |
Yes |
| Deck stabilizer |
Yes (included) |
| Quatix remote control supported |
Yes |
| Manual reverse control |
Yes |
| Sonar Features |
| Frequencies supported |
Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz |
| Transmit power |
Traditional: 350 W ClearVu/SideVu: 500 W |
| Maximum depth |
CHIRP sonar: 800' freshwater ClearVu: 400' SideVu: 500' |
| Depth/speed/temperature |
depth and temperature |
| Number of pins |
12-pin (orange connector) |
| Autopilot Features |
| Route following |
Yes |
| Anchor lock |
Yes |
| Smart Anchor Lock features |
Yes |
| Anchor lock jog |
Yes |
| Heading hold |
Yes |
| Cruise control |
Yes |
| Gesture features |
Yes (manual+, heading hold+, jog+) |
| Foot Pedal Features |
| Dimensions |
12" L x 9" W x 4 1/2" H |
| Wireless communication |
Yes |
| Power installation |
12 V/24 V/36 V wired or battery powered (2 AA) |
| AA battery life |
1 full season |
| Water rating |
IPX7 |
| Adjustable pedal resistance |
Yes |
| Remote Features |
| Display size |
1.2" (30.2 mm) diameter |
| Display resolution |
240 x 240 pixels |
| Display type |
color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys |
Yes |
| Autopilot feature control |
Yes |
| Water rating |
IPX7 |
| Battery life |
Typical use with backlight at low, 43 weeks |
| Floats |
Yes |
