Description

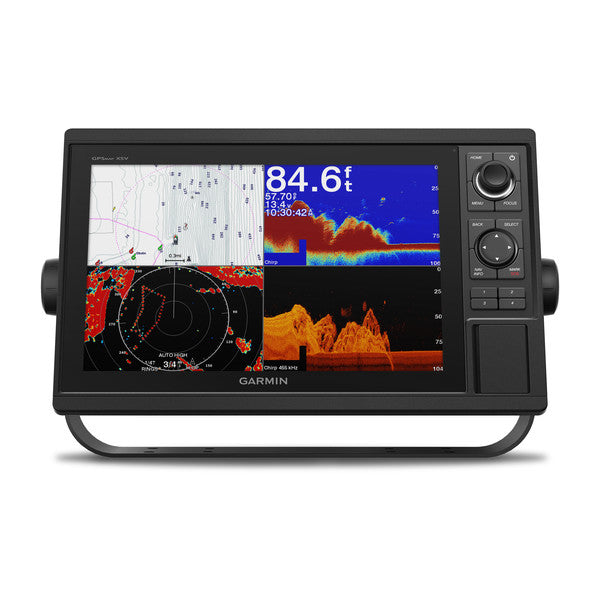

Garmin GPSMAP(R) 1242xsv 12-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Model: 010-01741-50
UPC: 753759175511
- Large, bright 12 in screen with keypad interface and multifunction control knob
- Supports all-seeing live sonar, which includes LiveScopeTM sonar (transducers sold separately)
- Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there's support for optional Garmin Navionics Vision+TM premium map content.
- Built-in wireless capabilities for Garmin mobile apps
- See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway
- Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors
- Includes Quickdraw Contours map drawing software
- Built-in Garmin SailAssistTM features include laylines, race features, set and drift, wind data and more
- Integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and remote controls (sold separately)
Experience an advanced all-in-one solution with our 12 in GPSMAP(R) 1242xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars. The combo also supports PanoptixTM and LiveScopeTM sonar products, including the LiveScopeTM Plus System and a wide range of other transducers (sold separately). Use built-in Wi-Fi(R) technology to pair with the free ActiveCaptain(R) smatrphone app for access to the OneChartTM feature, smart notifications, Garmin QuickdrawTM Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there's NMEA 2000(R) and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT(R) connectivity support for use with compatible quatix(R) smartwatches, the gWindTM Wireless 2 transducer, GNXTM Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there's support for optional Garmin Navionics Vision+TM premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin ConnectTM online network. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.
SpecificationsDimensions| 14.1 x 8.9 in x 2.7 in (35.8 x 22.6 x 6.9 cm) |
| Display size |
10.3 in x 6.4 in (26.2 x 16.3 cm) |
| Display resolution |
1280 x 800 |
| Display type |
WXGA display |
| Weight |
5.2 lbs |
| Water rating |
IPX7 |
| Power consumption |
Max power usage at 10 Vdc: 34.8 W |
| Antenna |
Internal or external over NMEA 2000 |
| Mounting options |
Bail or flush |
| Receiver |
10 Hz high-sensitivity |
| Garmin Marine NetworkTM ports |
2 |
| Preloaded maps |
Garmin Navionics+ coastal and inland water charts for the U.S. and Canada |
| Accepts data cards |
2 SDTM cards |
| Waypoints |
5 |
