Description

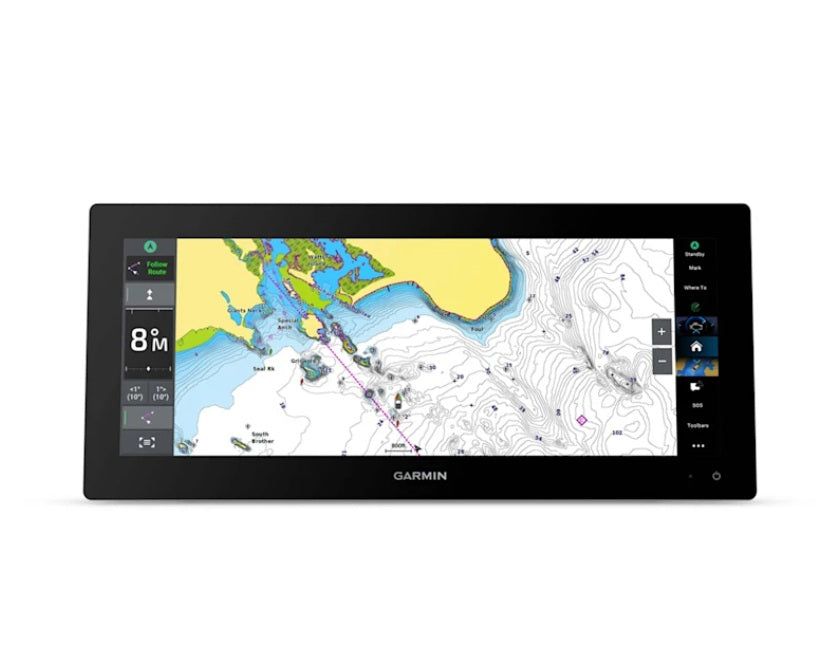

Garmin GPSMAP1543XSV 15in Ultrawide Combo No Transducer With US and Canada, GN+
Model: 010-03855-01
- ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING "FLOATING DISPLAY" CONFIGURATIONS
- CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM™ INTEGRATIONS
- EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY
- NAVIGATE WATERS CONFIDENTLY WITH PRELOADED GARMIN NAVIONICS+ CHARTS ON SELECT MODELS
- SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES
- MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE
Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.
Stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters
This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.
Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.
Specifications
| General |
| Weight |
15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) |
| Water rating |
IPX7 |
| Touchscreen |
Yes |
| Display Type |
Ultrawide display, IPS |
| Display Size |
13.6" x 5.1"; 14.5" diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) |
| Display resolution |
1920 x 720 pixels |
| Mounting Options |
Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Polarized lens viewability |
Yes |
| Maps & Memory |
| Accepts Data Cards |
2 microSD cards (back of device) |
| Compatible with Garmin SD card reader |
Yes (USB card reader) |
| Waypoints |
5000 |
| Track points |
50,000 |
| Tracks |
50 saved tracks |
| Navigation Routes |
100 |
| Sensors |
| GPS |
Yes |
| GLONASS |
Yes |
| Galileo |
Yes |
| Has built-in receiver |
Yes |
| Receiver |
10 Hz |
| NMEA 2000 Compatible |
Yes |
| NMEA 0183 Compatible |
Yes |
| Supports WAAS |
Yes |
| Supports multi-band, multi-constellation GPS |
Yes (with external GPS antenna) |
| Built-in Maps |
| Built-in Auto Guidance+ |
Yes |
| Garmin Navionics+ Inland & Coastal |
Yes |
| Tide tables |
Yes |
| Electrical Features |
| Power Input |
10 to 32 Vdc |
| Typical current draw at 12 Vdc |
2.44 A |
| Maximum current draw at 12 Vdc |
4.21 A |
| Maximum power usage at 10 Vdc |
56.93 W |
| Sonar Features |
| Displays sonar |
Yes |
| Power output |
1 kW |
| Traditional sonar (dual frequency/beam) |
Yes |
| ClearVü |
Yes |
| SideVü |
Yes |
| Panoptix sonar |
Yes |
| LiveScope |
Yes |
| Connections |
| NMEA 2000 ports |
1 |
| NMEA 0183 Input (Rx) Ports |
1 |
| NMEA 0183 output (Tx) ports |
1 |
| Video input ports |
1 (BNC composite) |
| J1939 ports |
1 |
| Garmin Marine Network Ports |
2 |
| 12-pin transducer ports |
1 |
| USB ports |
Yes |
| BLUETOOTH pairing |
Yes (BLE) |
| ANT (Connectivity) |
Yes |
| Garmin Wi-Fi network (local connection) |
Yes |
| Input Voltage |
10 to 32 Vdc |
| Dimensions |
15.3" x 7.02" x 3.3" (388.9 x 178.5 x 82.9 mm) |
What's in the Box:
- GPSMAP 1543xsv ultrawide chartplotter
- microSD card preinstalled
- Power cable
- Thin flush mount kit with gasket
- Protective cover
- 8-pin transducer to 12-pin sounder adapter cable
- 2 m backbone/drop cable and T-connector for NMEA 2000 Network
- Documentation
