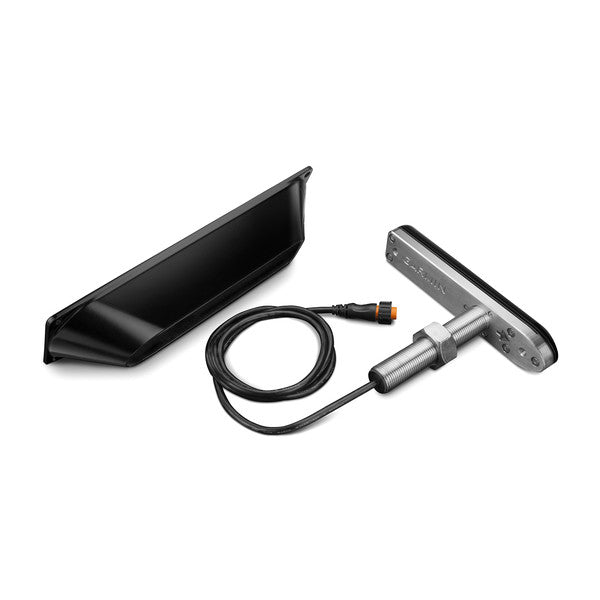

Garmin GT34UHD-TH Ultra High-Definition Thru-hull Transducer
Model: 010-12776-10
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCVTM 20 sonar module. It includes 3 arrays, including a downward-facing element element - with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) - and it's recommended for hulls with up to a 5-degree deadrise angle.
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
SpecificationsFrequencyUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Power |
500 W |
| Beamwidth |
Ultra High-Defintion ClearVü: 0.74 deg x 46 deg
Ultra High-Defintion SideVü: 0.44 deg x 55 deg |
| Maximum depth |
Ultra High-Defintion ClearVü: 200 ft. down
Ultra High-Defintion SideVü: 125 ft. sides, 250 ft. total |
| Features |
Depth and Temperature |
| Number of pins |
12 |
| Cable length |
20 ft |
| Supported deadrise/Transom angles |
Up to 25 deg deadrise |
