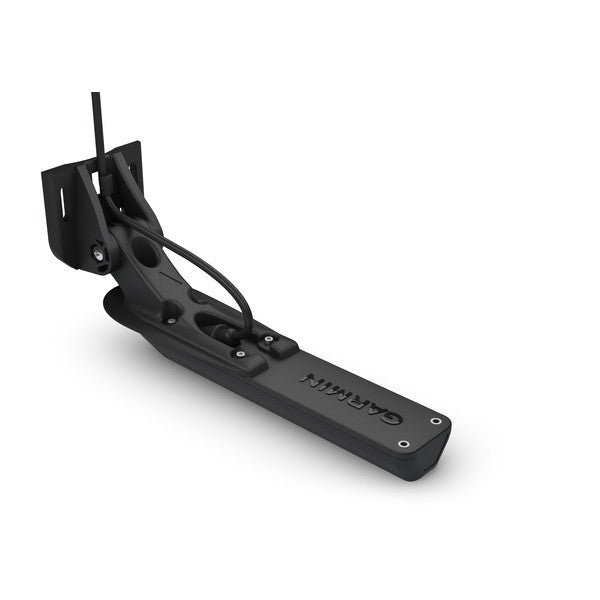

Garmin GT34-UHD-TM Ultra High-Definition Transom Mount Transducer
Model: 010-012776-00
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCVTM 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
SpecificationsFrequencyUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Power |
500 watts |
| Beamwidth |
Ultra High-Defintion ClearVü: 0.74 deg x 46 deg
Ultra High-Defintion SideVü: 0.44 deg x 55 deg |
| Maximum depth |
Ultra High-Defintion ClearVü: 200 ft. down
Ultra High-Defintion SideVü: 125 ft. sides, 250 ft. total |
| Features |
Depth and Temperature |
| Number of pins |
12 |
| Cable length |
20 ft |
| Supported deadrise/Transom angles |
0 deg-70 deg degree transom |
